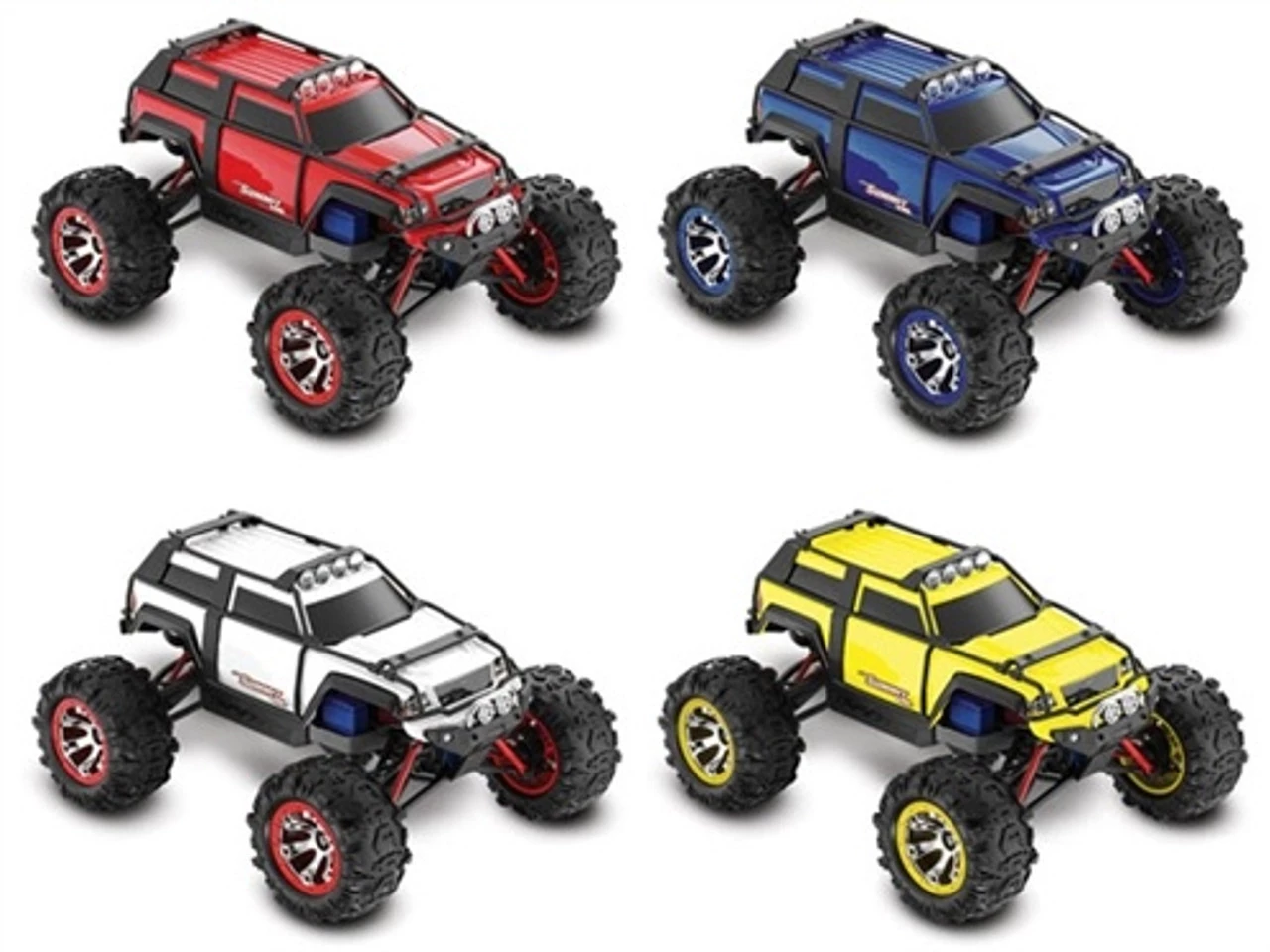

Traxxas 1/16 Summit VXL Brushless RTR 4WD RC Truck

This is the Traxxas 1/16 Scale Summit VXL Brushless Electric Ready-to-Run 4WD Monster Truck with iD Battery and 2-Amp DC quick charger. This includes the TQ 2.4GHz radio system, Velineon 380 motor, VXL-3m electronic speed control, 7.2 volt NiMH iD battery and DC charger, and ProGraphix painted body.

Believe In The Impossible: Big Summit Fun in 1/16 Scale!
Barely as tall as a single tire on the 1/10 scale Summit, the new 1/16 Summit VXL will make you forget all about its super convenient and fun size while its massive suspension travel, screaming brushless horsepower, and 4-wheel drive traction tackle impossible terrain and turn “no way” into “no problem.” Traxxas engineers have managed to pack all the big Summit’s go-anywhere versatility into a smaller machine that knows no boundaries. Waterproof? Check. Velineon Brushless power system? Of course! Traxxas tough durability? You bet. Traxxas engineers built this one to run hard and fast with its all-new extreme duty driveshafts, rugged ExoCage body, beefed up suspension damping, and scale Canyon AT tires. Add an extra battery and a Traxxas speed harness connector (sold separately) and top speed climbs to 40+mph. The 1/16 Summit’s just-right size lets you enjoy hours of off-road fun anywhere, anytime!

Included Power Cell iD Technology Battery Pack and DC Peak Charger
The 1/16 Summit VXL is fully assembled and Ready-To-Race with the new Power Cell NiMH iD Technology battery and charger. Designed specifically for the high-power needs of Traxxas vehicles, this potent pack features heavy-duty construction, 16-gauge wires and Traxxas’ exclusive patented High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.

For quick, convenient, hassle-free charging, a 2-amp DC fast charger is included to maximize runtime and minimize down time. The included NiMH charger uses a standard 12-Volt DC power outlet (a car accessory/cigarette lighter port) for universal high-output charging. The brilliant LED provides charging status as soon as the battery is connected. The charger is optimized for charging your Traxxas iD Power Cell NiMH battery. Peak-detection circuitry makes sure the battery receives a full charge every time. The status LED flashes green to indicate when charging is in progress, then turns solid green when charging is complete for foolproof charging, peak performance, and maximum runtime.

Proven Traxxas Innovation
No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas’ award-winning models to 1/16 scale for fast, affordable R/C fun. The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo’s F1-inspired, rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the “mini” category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control.

Features

• TQ 2.4GHz transmitter
• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon Brushless Power System
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control
  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode – 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor
  • High-performance sensorless design
  • High-strength Neodymium magnets
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • Gold-plated 3.5mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials – an industry first in 1/16 scale
• Torque-Control slipper clutch system
• Heavy-duty CV-style driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Installed Long Travel Rockers for maximum suspension articulation
• Extended-wheelbase rear suspension arms (+10mm)
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping

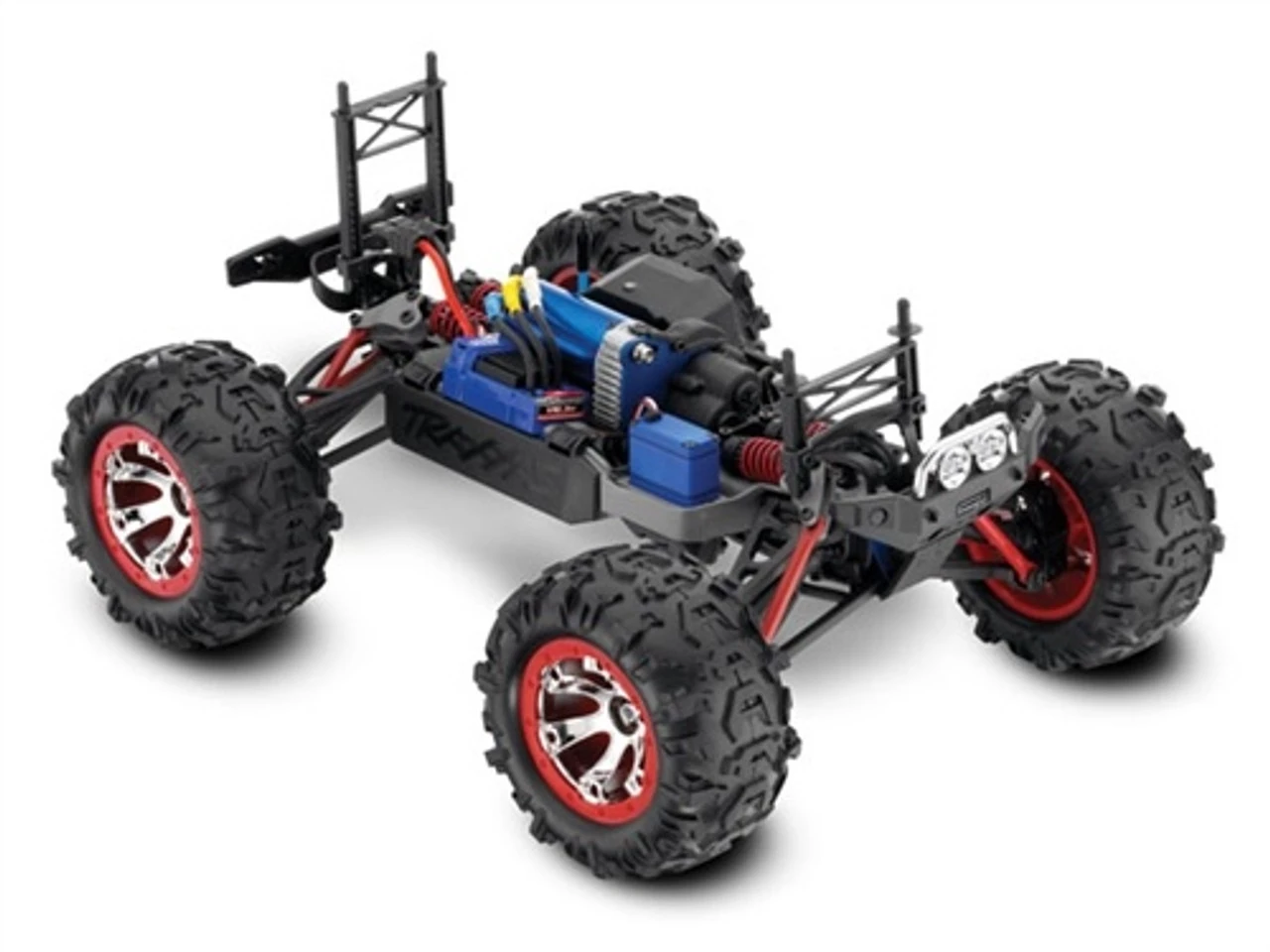

• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued Canyon AT Tires with foam inserts
• Chrome Geode 2.2″ wheels with beadlock trim
• ExoCage body with protective outer cage
• “LED ready” bumpers
• Full line of genuine Traxxas accessories available
• 1/16 Summit VXL is backed by unparalleled Traxxas support and parts availability

Precision 2.4GHz Control Radio System
With the TQ 2.4GHz radio system, you just switch on and drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage. To customize the controls, the transmitter’s factory servo directions can be easily reversed using the TQ’s simple programming system.

Unbeatable Speed and Performance
No “mini” model can match 1/16 Summit’s class-leading speed and tire-spinning torque. Right out of the box, the potent Velineon Brushless Power System and included Power Cell NiMH battery push Summit past 25mph to outrun any “mini” (and many 1/10 scale RTR trucks). Install a second Power Cell battery to unleash the Velineon Brushless Power System’s full fury, and Summit VXL jumps to over 40mph – all with proven-safe NiMH packs. Only Traxxas makes it so easy and affordable to experience this level of high speed, trail-taming torque, and wheelie-popping power.

Velineon Brushless Power
Built specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives Summit VXL precise throttle control and blistering top speed. Patent-pending Training Mode lets new drivers hone their skills at 50% throttle. When they’re ready, full power and 40+mph is unleashed with a touch of the EZ-Set button. Big speed requires big horsepower, so Summit VXL is equipped with the largest motor in the “mini” category. The Velineon 380 is built to the same no-compromise specs as the Velineon 3500 found in Traxxas’ 70+mph 1/10 scale VXL models. High-speed ball bearings. Sintered rotor. Neodymium magnets. Gold plated 3.5mm connectors. It all adds up to 50,000 rpm of pure power for unbeatable torque, power, and speed

100% Ready-To-Drive
The 1/16 Summit VXL is fully assembled with TQ 2.4GHz radio system, Velineon brushless power system, painted and decaled body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH iD battery and DC quick charger are also included, making the Summit VXL truly Ready-To-Race. Designed specifically for the high-power needs of the Velineon brushless system, the potent Power Cell pack features heavy-duty construction, 16-gauge wires and Traxxas’ exclusive High-Current Connector for efficient power transfer, run after run. Traxxas backs the Summit VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the Summit to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!).

Specifications

Type: 4WD Off-Road Monster Truck
Scale: 1/16
Length: 12.6 in (320mm)
Width: 10.63 in (270mm)
Height: 7.48 in (190mm)
Wheelbase: 8.425 in (214mm)
Weight: 44oz (1.24kg)
Chassis: Molded Composite Nylon Monocoque
Drivetrain: Dual-CV Telescoping Driveshafts
Tire Type: Canyon AT Tires
Wheel Size: 2.2in Geode Wheels

Requires: 4 AA batteries for transmitter
