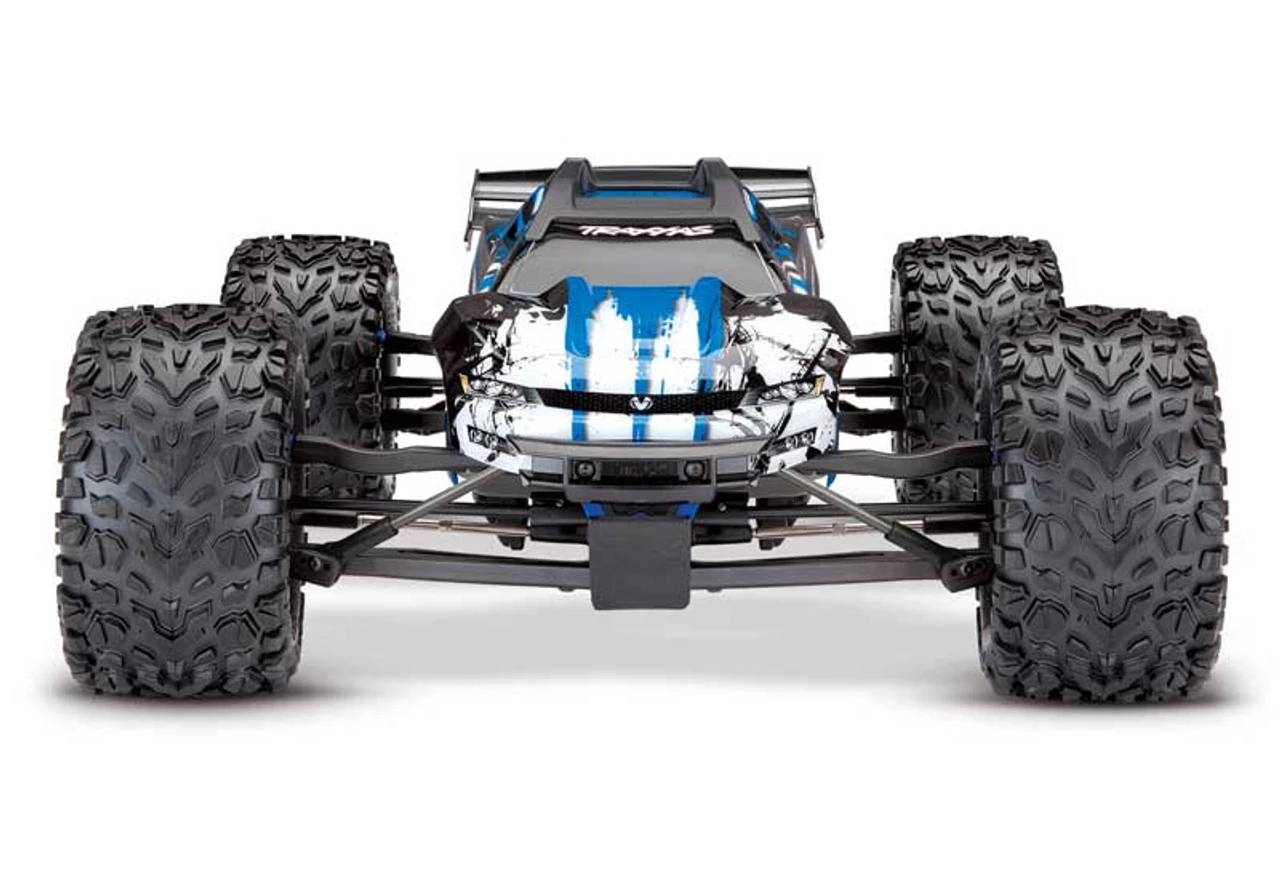

Traxxas E-Revo 2 VXL Brushless RC Monster Truck w/TSM Stability Management Solar Flare

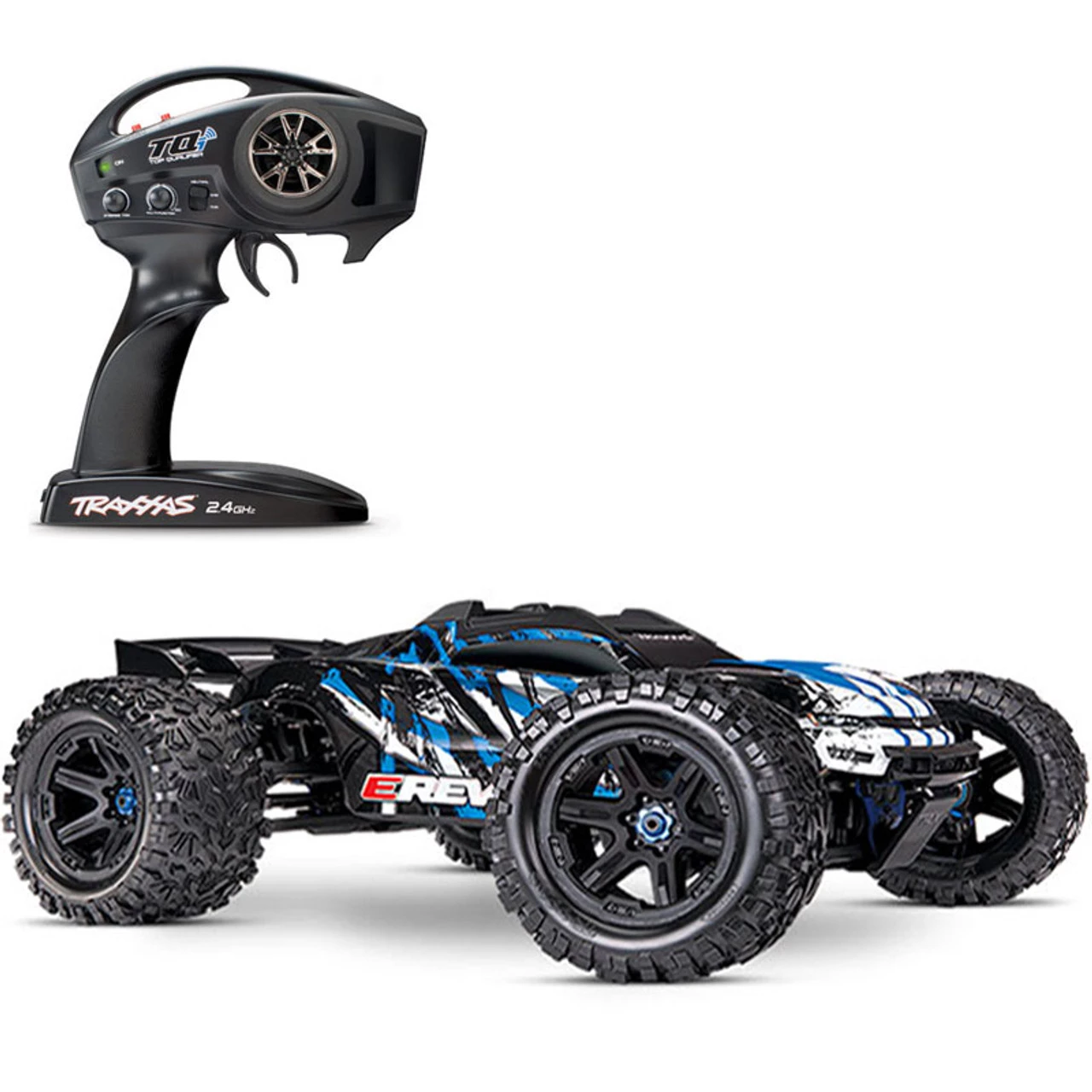

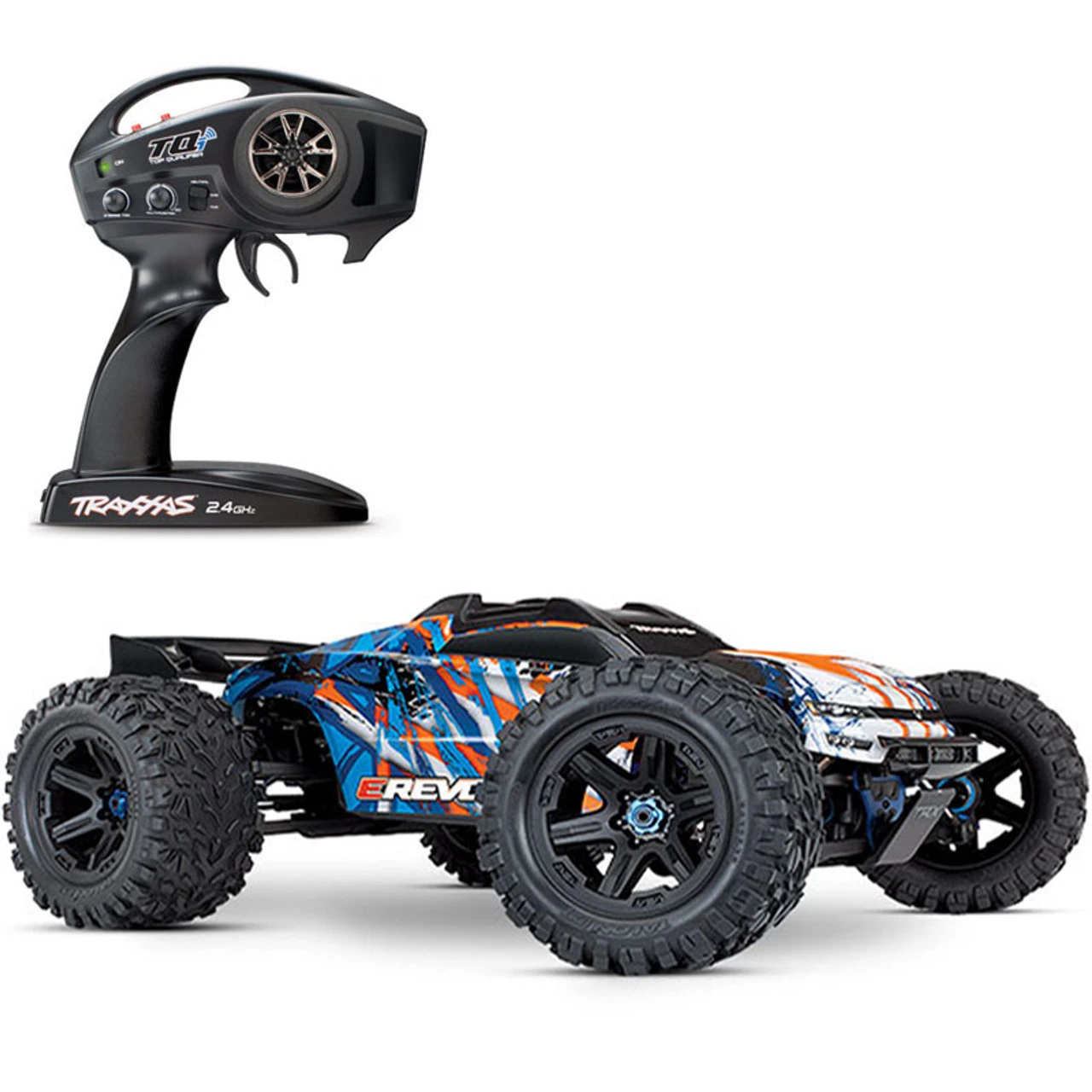

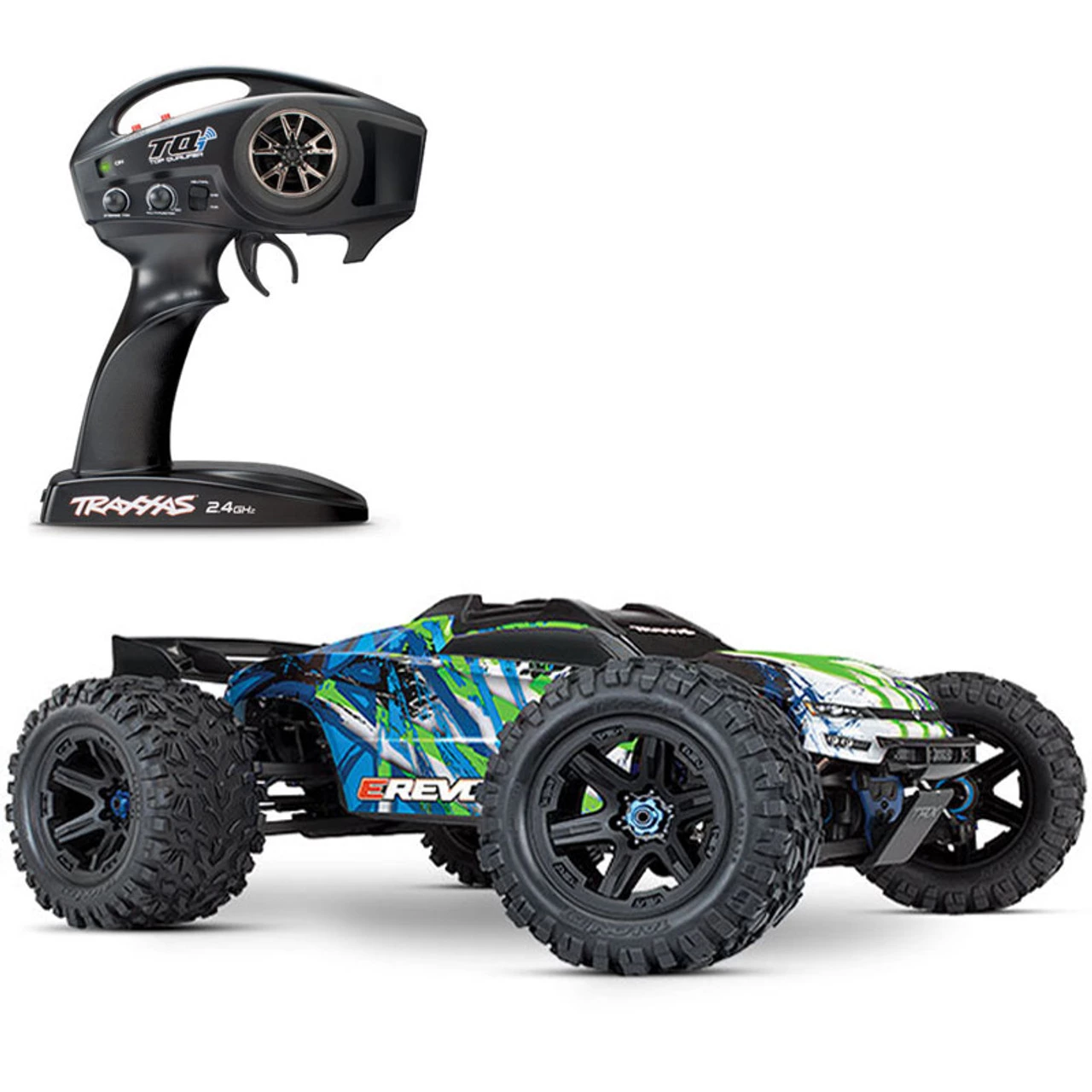

This is the Traxxas E-Revo 2.0 Brushless Ready-to-Race Waterproof Radio Controlled Electric Racing Monster Truck with Traxxas Stability Management (TSM) and TQi 2.4GHz radio system. This truck comes fully assembled and Ready-To-Race, with a Traxxas TQi 2.4GHz radio system, waterproof VXL-6s Brushless Electric Motor and Speed Control, Dual Digital Steering Servos, and ProGraphix painted body. The E-Revo Brushless is capable of 30+MPH with 2S LiPo batteries, and up to 70+MPH with 3S LiPos and simple gearing change!

Power. Strength. Speed.
There is no other monster truck like E-Revo. It embodies the highest level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation, and unheard of speed that reset every benchmark for racing monster truck performance. Now there is a new generation of E-Revo. This new E-Revo retains all the benefits of its original ground-breaking, award-winning design, but fortifies them with brute strength and an intense, take-no-prisoners attitude to deliver what is simply the ultimate 6s monster. Get ready for a whole new level of power, strength, and speed.

Features

VXL-6s Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors

Velineon 2200kV Brushless Motor

• 4-pole 2200kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Up to 70+ mph with Two 3s LiPo Batteries

Traxxas Stability Management (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

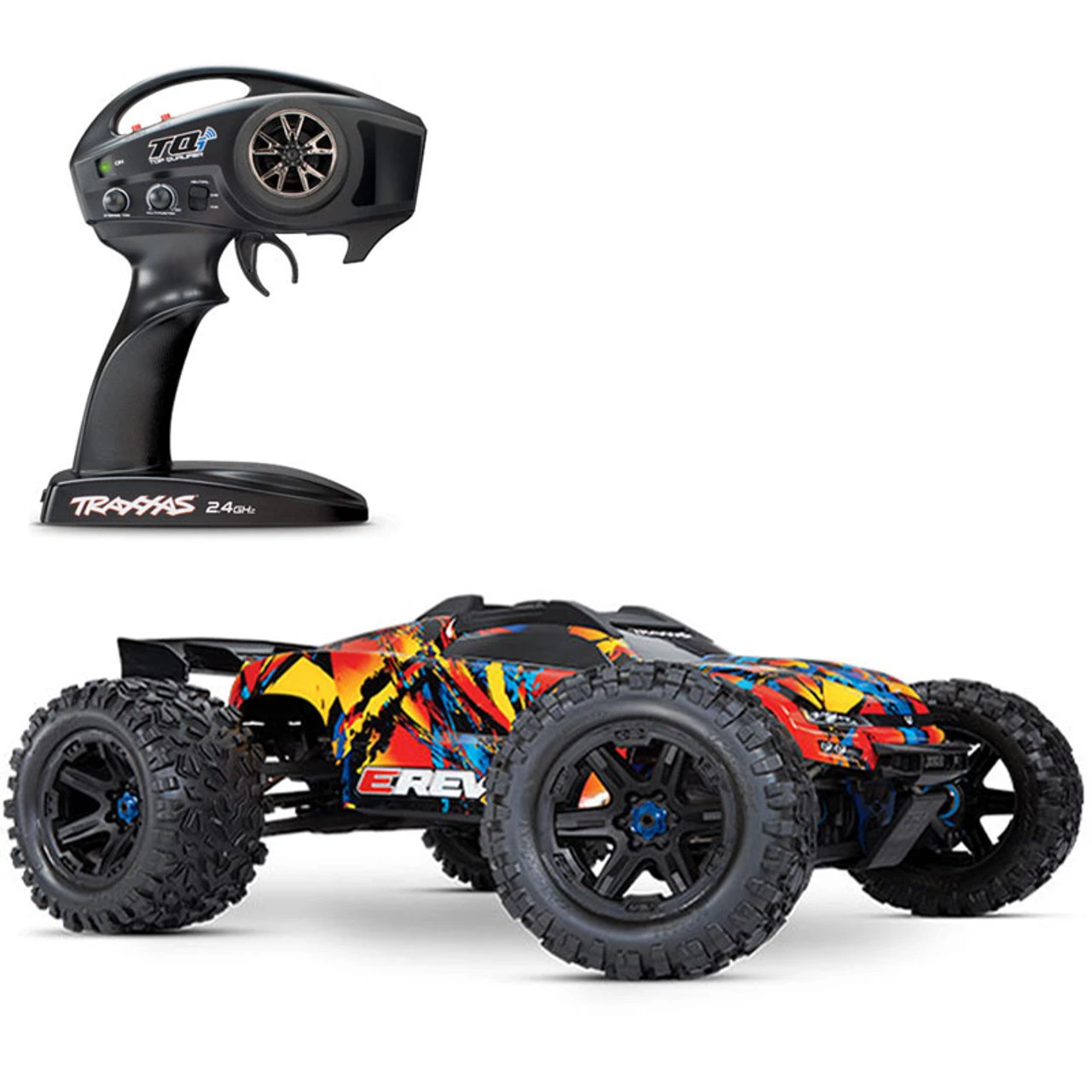

TQi 2.4GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Drivetrain

• Maxx-Spec steel CV driveshafts
• 8mm steel stub axles
• Heavy-duty telescoping center driveshafts

Transmission

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive
• Cush Drive (no slipper clutch)
• 5mm aluminum motor plate

Differentials

• Heavy-duty sealed 4-gear design
• Redesigned bulkheads with underside access
• Maxx-Spec ring and pinion gears
• Large 8mm output shafts
• Steel drive cups

Suspension

• Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
• Inboard rocker arm suspension design for extreme articulation
• Low-CG design improves handling and protects components
• Upgraded heavy-duty axle carriers with oversized bearings
• Heavy-duty rocker arms and rod ends

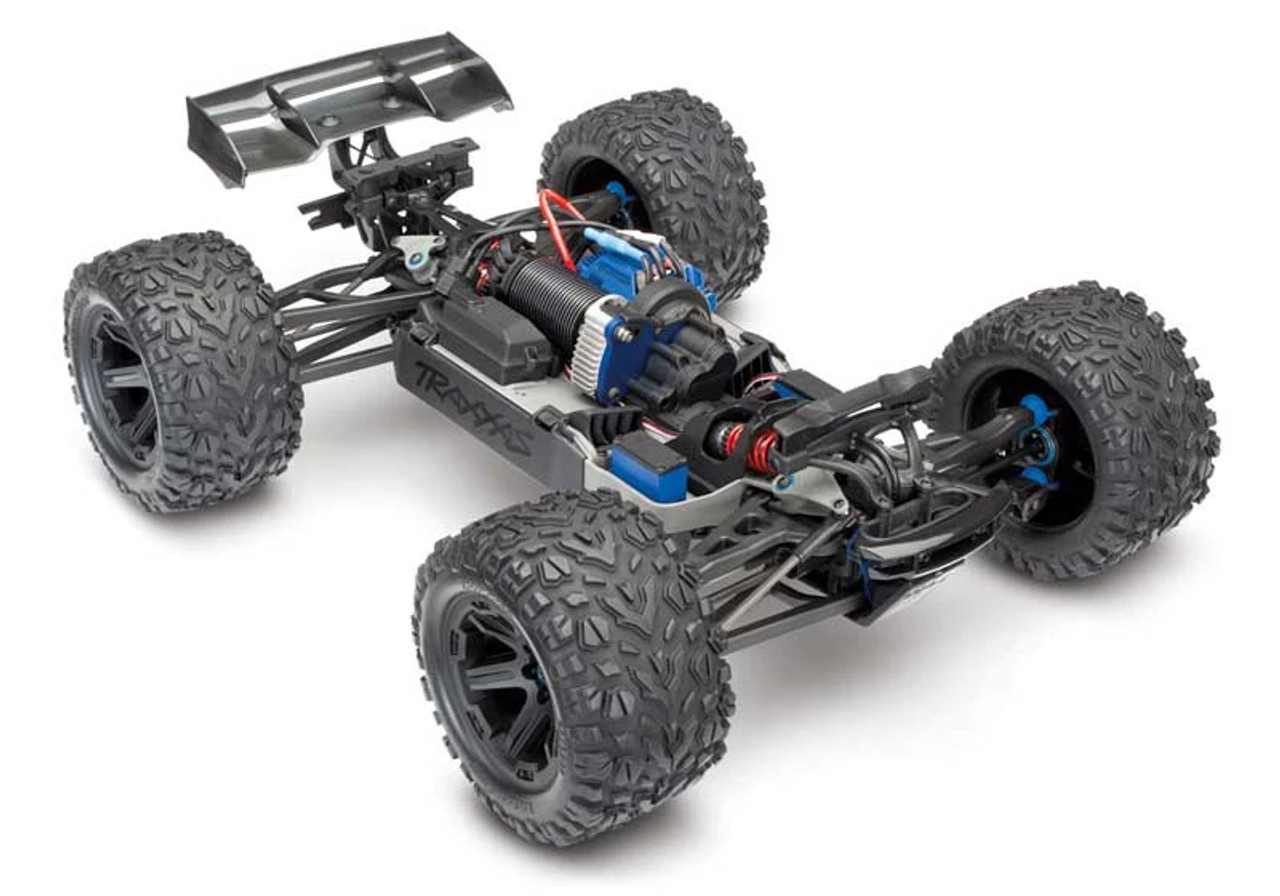

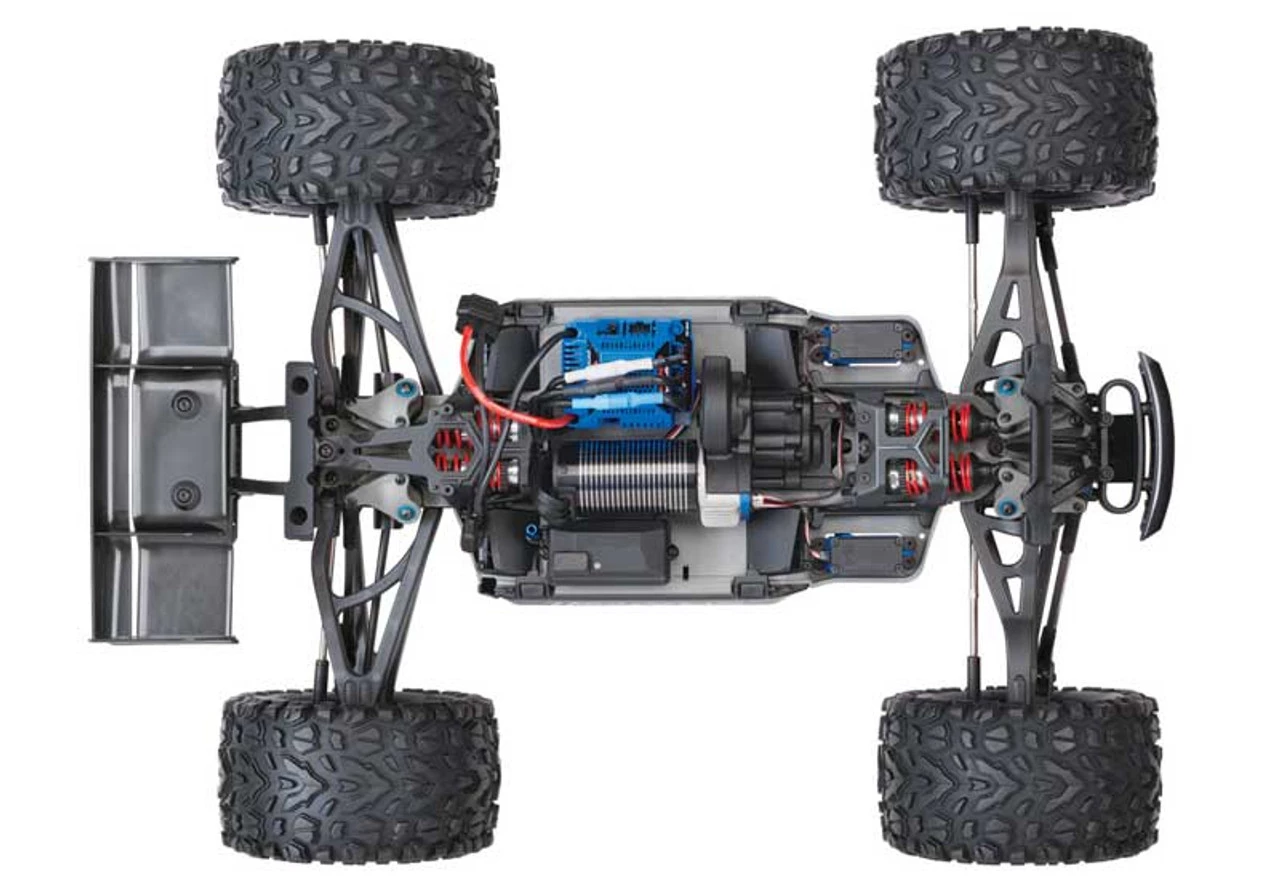

Chassis

• Reinforced composite tub for greater durability
• Vented internal battery compartments with quick-release doors
• Low-CG design for improved handling
• Tough skid plates for driveline protection

ProGraphix Body

• Clipless body mounting system
• Tough internal frame
• Adjustable rear wing
• External reinforcement for rollover protection

Wheels and Tires

• Aggressive Talon EXT all-terrain tires
• New tire construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm blue aluminum axle hubs

Steering

• High-throw bellcrank steering design
• Dual waterproof 2075 servos for 250 oz.-in. of torque

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating

Specifications

Length: 23.05 inches (585mm)
Width: 18.32 inches (465mm)
Ground Clearance: 2.9 inches (73mm)
Weight: 11.2lb (5.08kg)
Height: 8.7 inches (221mm)
Wheelbase: 14.94 inches (380mm)
Front Shock Length: 3.42 inches (87mm)
Rear Shock Length: 3.42 inches (87mm)
Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
Wheels: 3.8 inches (97mm)
Speed Control: Velineon VXL-6s
Motor (electric): 2200kV
Transmission: Single speed
Gear Pitch: 1.0 Metric pitch (Mod-1)
Final Drive Ratio: 20.49:1
Differential Type: Sealed, 4-gear
Center Differential Type: Sealed, 4-gear (20M weight oil)
Chassis Structure / Material: Composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Bellcrank
Radio System: TQi 2-channel transmitter with 6533 TSM receiver
Servo: Dual 2075
Top Speed (optional gearing): 70+ mph
Skill Level: 3
Battery Compartment: 156mm x 50mm x 29mm

Requires:

2x batteries (2S or 3S LiPo)
Compatible charger
AA batteries for transmitter
