Traxxas E-Revo Brushless RC Monster Truck with Traxxas Stability Management (TSM)

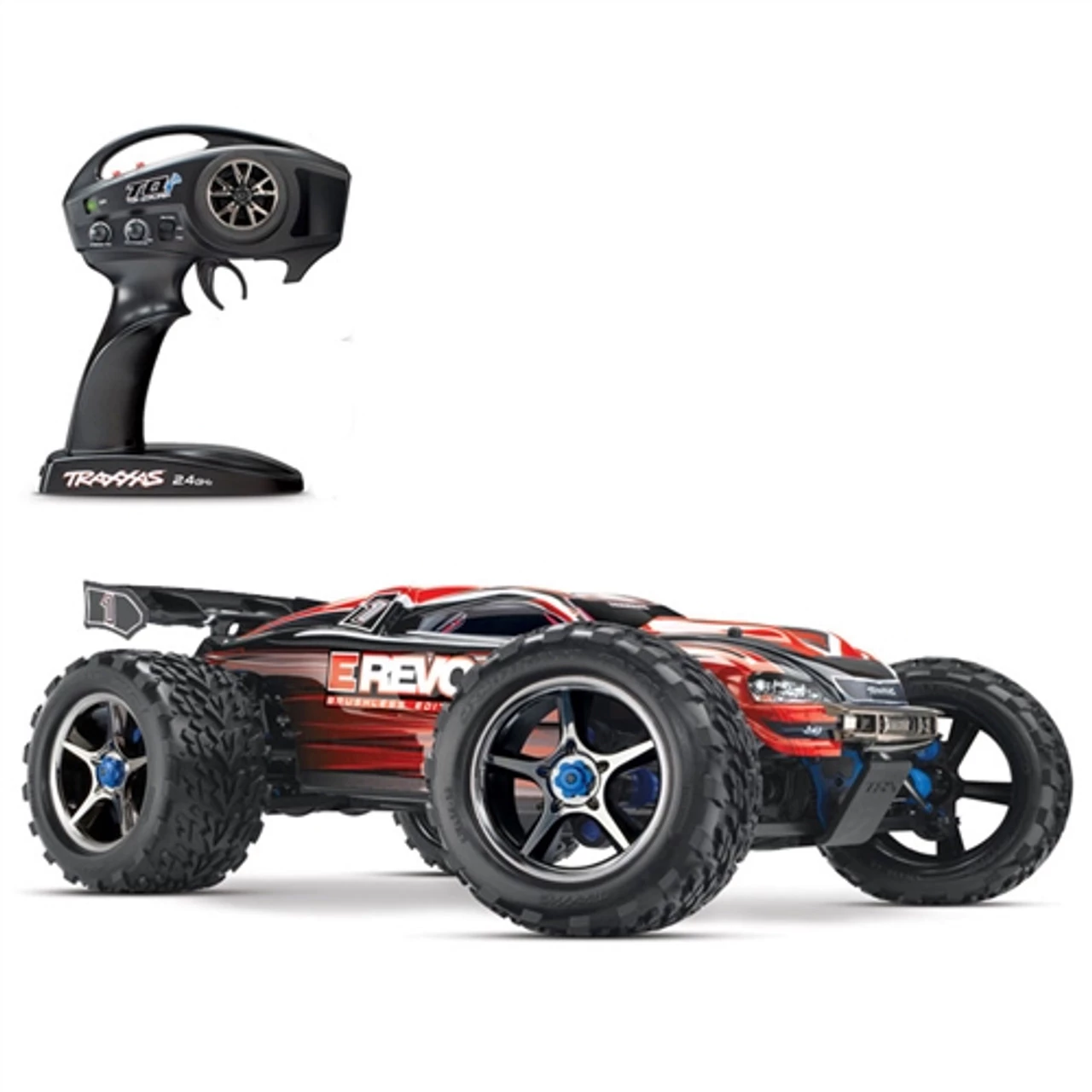

This is the Traxxas E-Revo Brushless Ready-to-Race Waterproof Radio Controlled Electric Racing Monster Truck with Traxxas Stability Management (TSM) and TQi 2.4GHz radio system. This truck comes fully assembled and Ready-To-Race, with a Traxxas TQi 2.4GHz radio system, waterproof MXL-6s Brushless Electric Motor and Speed Control, Dual Digital Steering Servos, and ProGraphix painted body. The E-Revo Brushless is capable of 35+MPH with 7-cell NiMH batteries, and up to 65+MPH with 3S LiPos and simple gearing change!

Traxxas Stability Management
Traxxas Stability Management (TSM) allows you to experience all the extreme power, speed, and acceleration that was engineered into your E-Revo, making it much easier to control on common slippery surfaces such as dusty asphalt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain your line, and then allowing you to hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep you arrow straight until you come to a complete stop.

TSM Benefits

• TSM makes Traxxas vehicles easier to drive, particularly on loose surfaces
• TSM makes driving more fun by allowing the driver to accelerate harder and drive faster with much greater control
• TSM works to stabilize vehicles over rough surfaces as the gyro effect of the spinning front tires continues to “steer” when the vehicle is in the air
• TSM dramatically improves braking performance, preventing the vehicle from spinning out
• TSM allows faster cornering speeds
• TSM never restricts throttle (or fun!)
• TSM allows the driver to accelerate harder when exiting a turn
• TSM works invisibly in the background
• The driver maintains their connected feel with the vehicle
• The amount of TSM assistance is fully adjustable
• TSM can be turned off or adjusted from the TQi Transmitter
• TSM is fully compatible with Traxxas Link
• TSM does not require any complicated set up or instructions

Built For Brushless
We built the E-Revo for brushless power right from the start. For other companies, brushless-ready means just making some nominal provisions for battery and motor installation and letting the aftermarket develop the upgrades necessary to make it survive. Not Traxxas. We heard the call for more power, so E-Revo was tested tough for durability with brutal 6S LiPo power and intense custom-wound brushless motors. For the uninitiated, this extreme 65+mph motor monster truck is ordinarily a predictable recipe for a box full of twisted and mangled parts. Not so with the E-Revo Brushless Edition. E-Revo’s driveline has been engineered to endure the kind of horsepower and punishment that’s possible with today’s motor and battery technology. It looks factory because it is factory, complete with a separate motor plate for clean, low-slung single motor installation.

Waterproof MXL-6s Brushless Power System
Built specifically to handle the rigors of large, power-hungry trucks, the waterproof MXL-6s speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a 2200kV, 75mm motor, designed specifically for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Revo Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to Brushless-Ready transmission.

Features

• NEW TQi 2.4GHz High Output radio system with TSM
  • Traxxas Stability Management
  • TQi 2.4GHz transmitter
  • TQi 2.4GHz 5-channel TSM receiver (#6533) with fail-safe
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control

• MXL-6s waterproof electronic speed control
  • 6.5mm gold-plated connectors
  • Integrated cooling fan
  • Heavy-duty construction

• 2200kV brushless motor
  • Machined heatsink can
  • 5mm rotor shaft

• Brushless-Ready transmission with metal center idler gear
• Heavy-duty 17mm splined aluminum hex hubs and wheel nuts
• Unique chassis design with integrated dual battery compartments
• Quick release battery doors
• Battery cooling vents
• Smooth center skid plate shields the driveline
• Sealed receiver box protects the micro receiver from dirt, debris and moisture
• Dual digital waterproof steering servos deliver 125 oz-in of torque & 0.16-sec transit time
• Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
• Sealed pivot ball suspension
• Sealed limited slip differentials
• Dual-servo steering system
• Hex hardware throughout
• 3.8″ black chrome Gemini wheels
• 3.8″ Talon tires
• Sleek pre-painted body design
• Adjustable rear wing
• Compatible with many Revo Platinum upgrades
• Traxxas innovation built in!
• Ready-To-Race

Sealed Electronics Extend Your Driving Fun

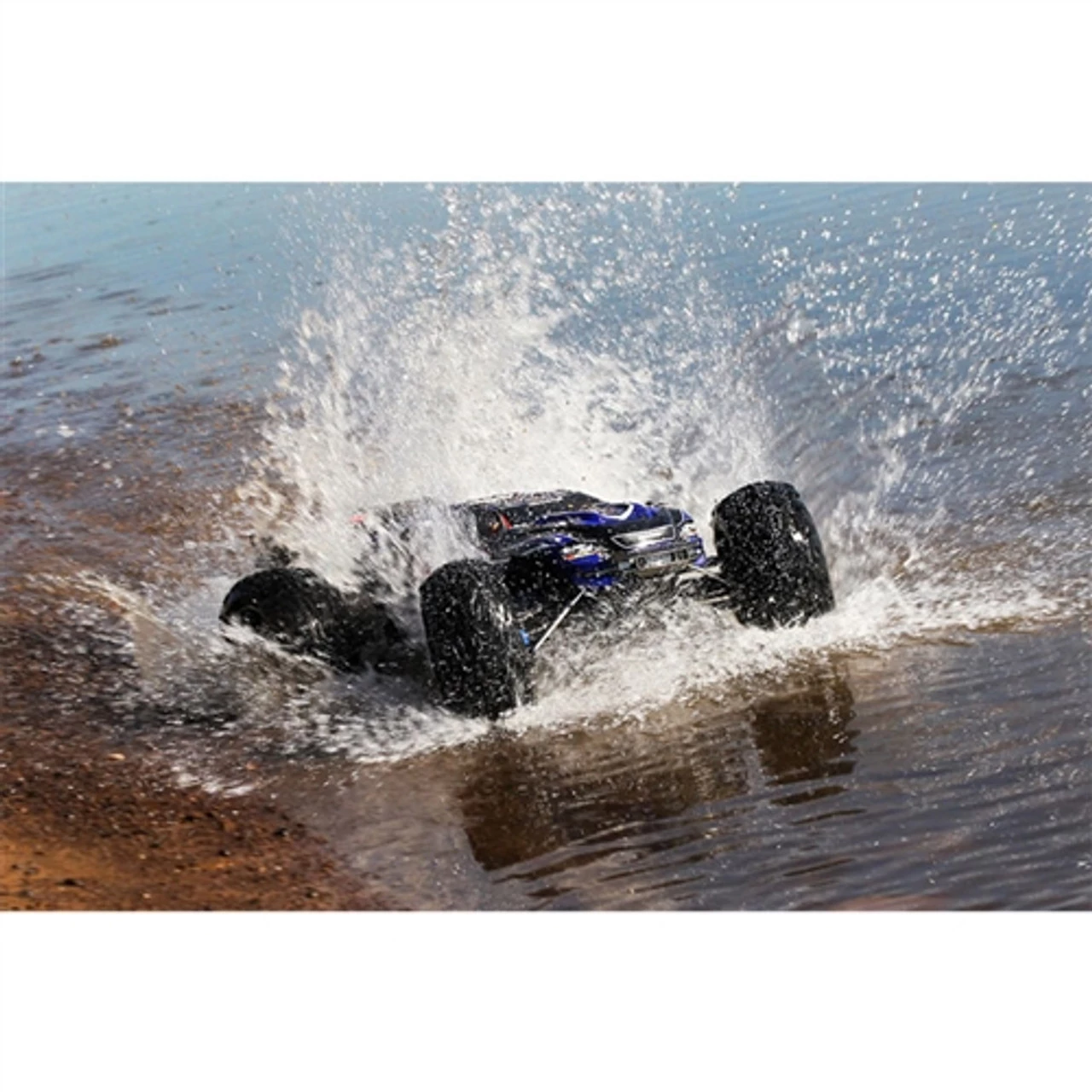

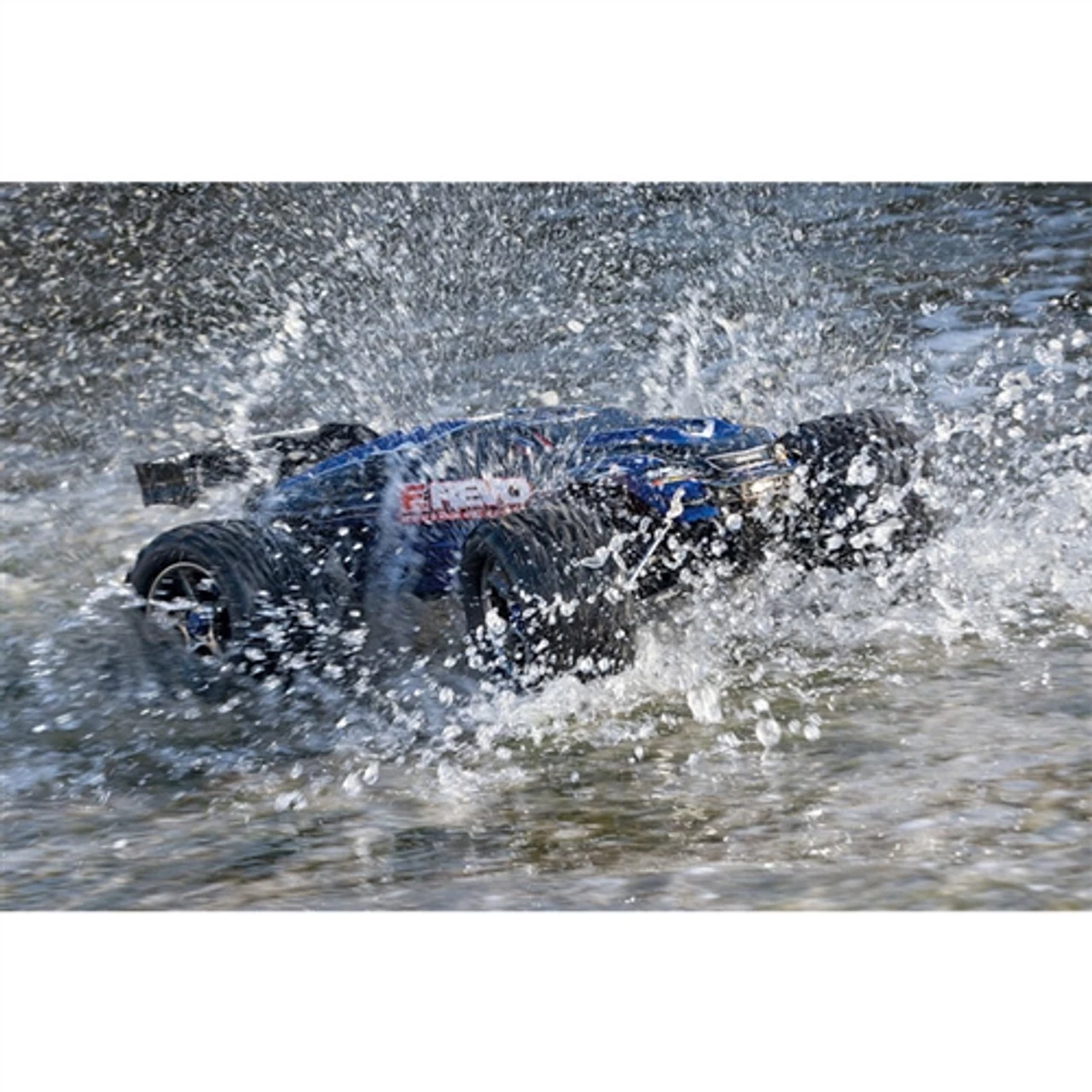

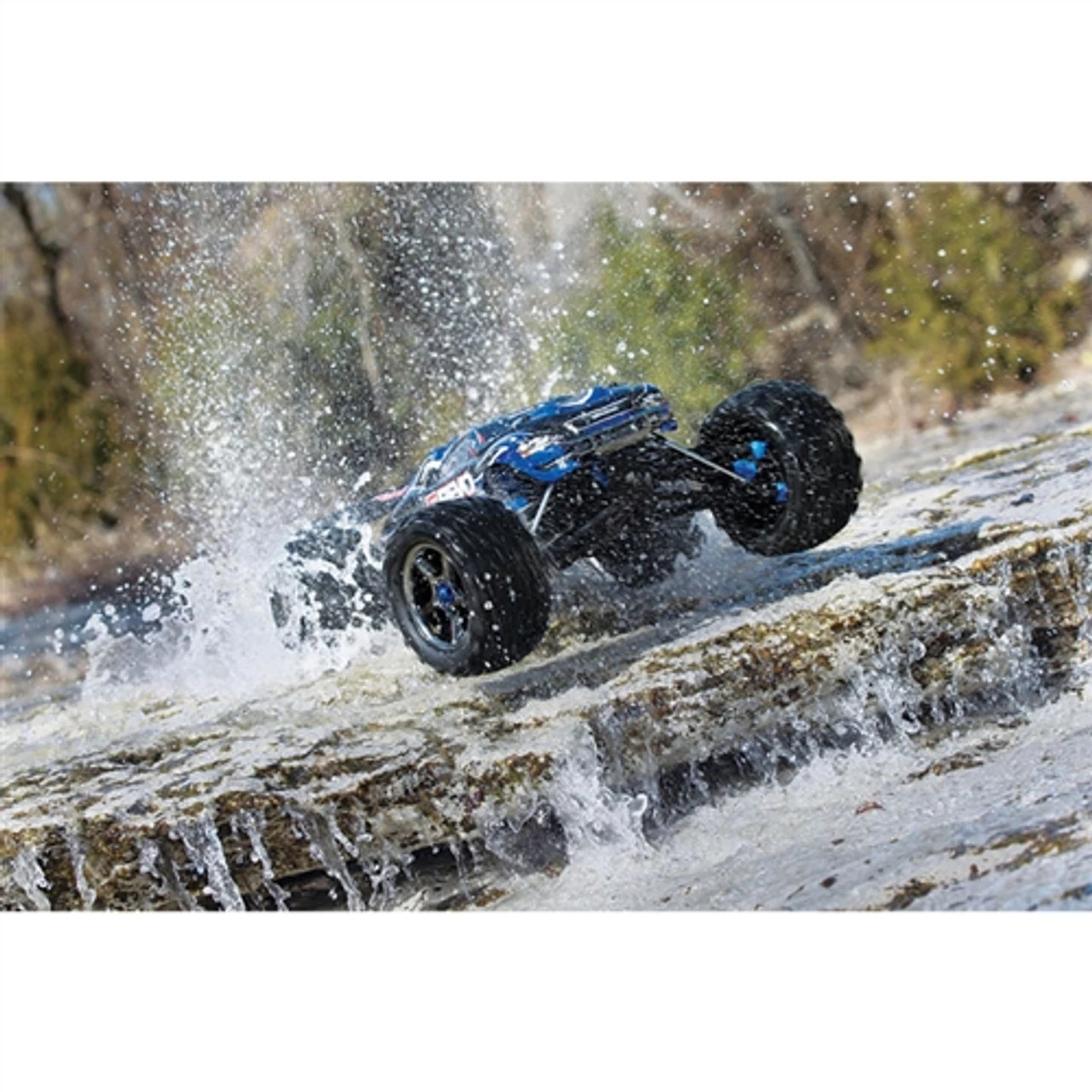

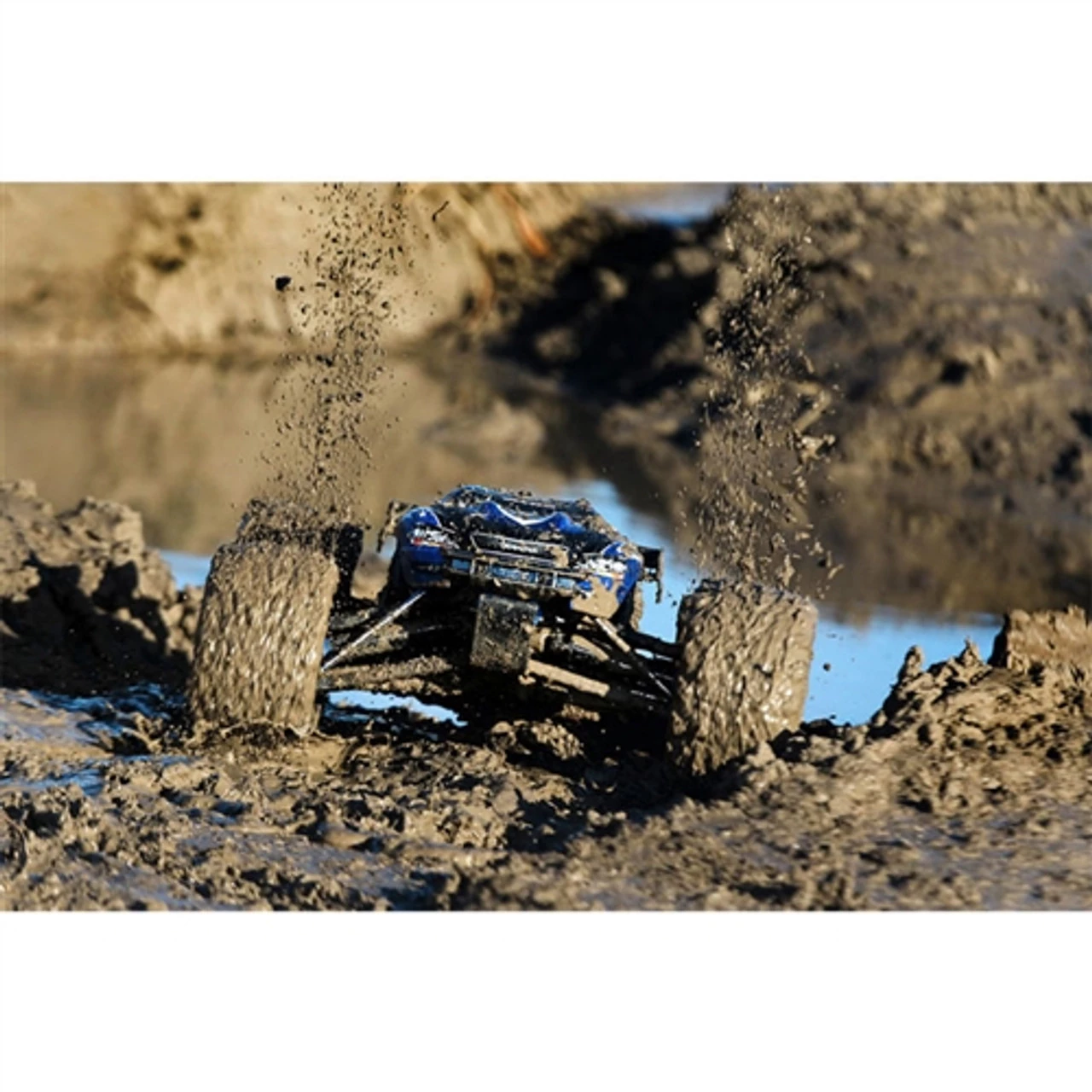

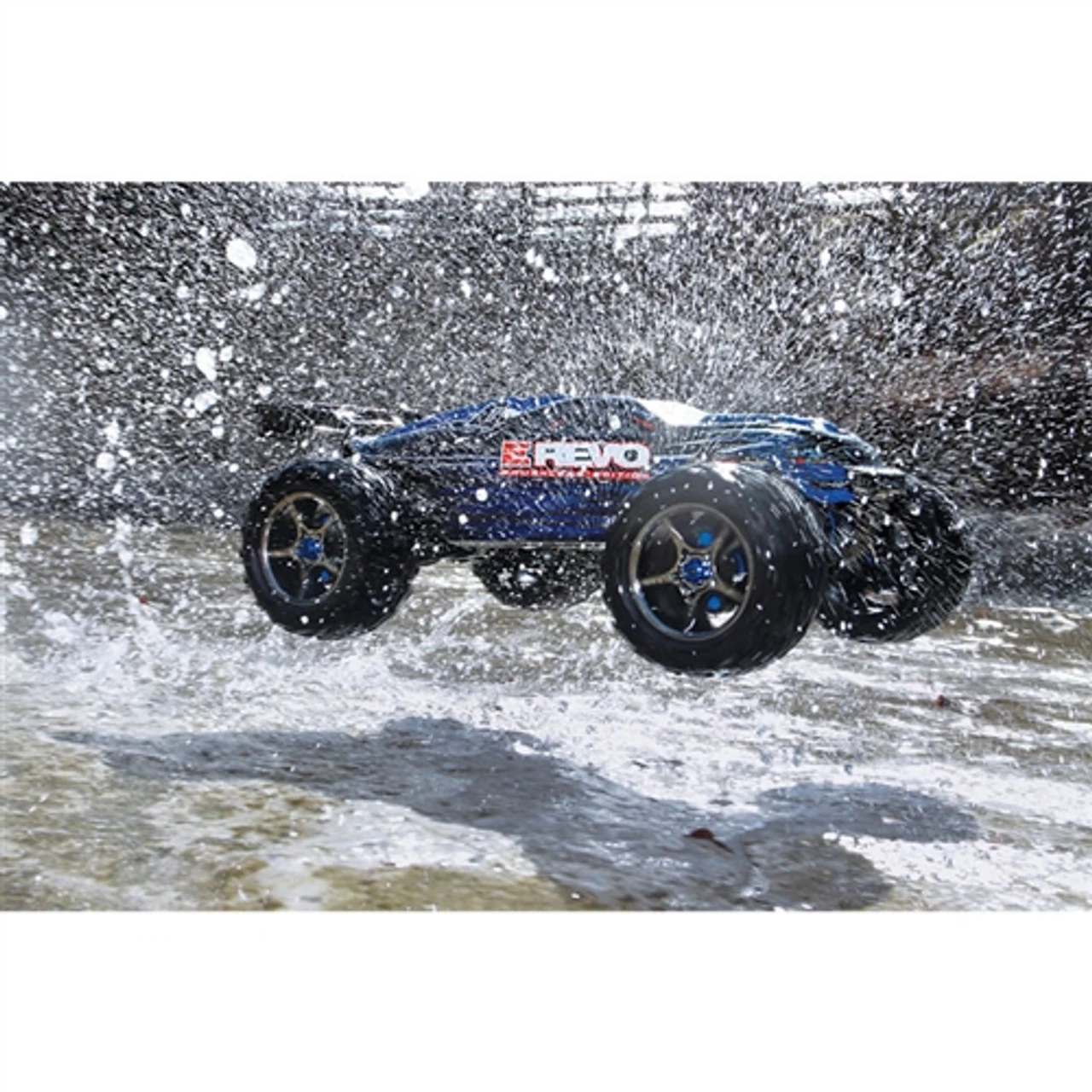

Only Traxxas lets you experience driving excitement year-round, no matter what Mother Nature has to offer. Water, mud, and snow don’t slow down the E-Revo; its electronic speed control, receiver box, and high-torque digital steering servos are all waterproof for worry-free fun in wet conditions that send other trucks back to the workbench. Drive the E-Revo where you want, when you want – the only limit is your imagination.

The World’s Most Advanced Ready-To-Race Radio System Now Connects Wirelessly to the Traxxas Link App
Total Control. Traxxas models deserve the world’s most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It’s so advanced; it doesn’t even need an external antenna.The TQi’s most important new feature may already be in your pocket. The TQi can be equipped with an Traxxas Link Wireless Module (#6511, sold separately) that turns your Android, iPad, iPhone, or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model.

Sealed Watertight Receiver Box
E-Revo’s receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.

Low-CG Chassis Design
Engineered by Traxxas, the ground-breaking molded E-Revo chassis sets a new benchmark for electric monster truck looks and performance. The E-Revo chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of NiMH and LiPo configurations to unlock E-Revo Brushless edition’s power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible and increases side-to-side agility by keeping most of the weight close to the center.

Battery Compartment Vents
Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places E-Revo in a class of its own.

­Quick Release Battery Doors
The futuristic chassis design incorporates enclosed battery compartments into the sides of the chassis for an ultra-clean look even with the battery packs installed. Innovative quick release battery doors mount directly to the chassis, so there are no clips or hold downs to lose during battery swaps. The doors pivot down using a hinged design and dual clasps secure the tops of the battery doors for impact-proof security. To open the battery doors depress the latches and pull on the battery door tabs. To close the doors simply press on the door until the latches snap into place.

­Adjustable Battery Compartments
Keyed, adjustable L-braces located inside the battery compartments allow the battery packs to be positioned in multiple incremental positions from front to rear for precise weight bias tuning. A top mounted, spring loaded clip holds battery packs securely at the lowest point to keep the CG as low as possible.

­Dual-Servo Steering System
E-Revo takes a total system approach to eliminating the slow, mushy steering response typical on other monster trucks. Each servo is rated for 125 oz.-in. of torque, giving E-Revo a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.

Leading The Way
There is no other electric monster truck like E-Revo. It embodies the highest level of creativity in design and engineering skill to create the absolute best in monster truck performance. E-Revo is the benchmark that could only come from Traxxas, the leaders in innovation and design. Traxxas backs the E-Revo Brushless Edition and all of their products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!).

Specifications

Length: 22.9″ (582mm)
Width: 16.38″ (416mm)
Height: 8.3″ (210mm)
Wheelbase: 14.1″ (358mm)
Ground Clearance: 3.86″ (98mm)
Weight: 9.5lbs without batteries
Front Track: 16.4″ (416mm)
Rear Track: 16.5″ (419mm) outer edges of wheels side to side
Motor: 2200Kv
Speed Control: MXL-6s Waterproof Fwd/Rev/Brake

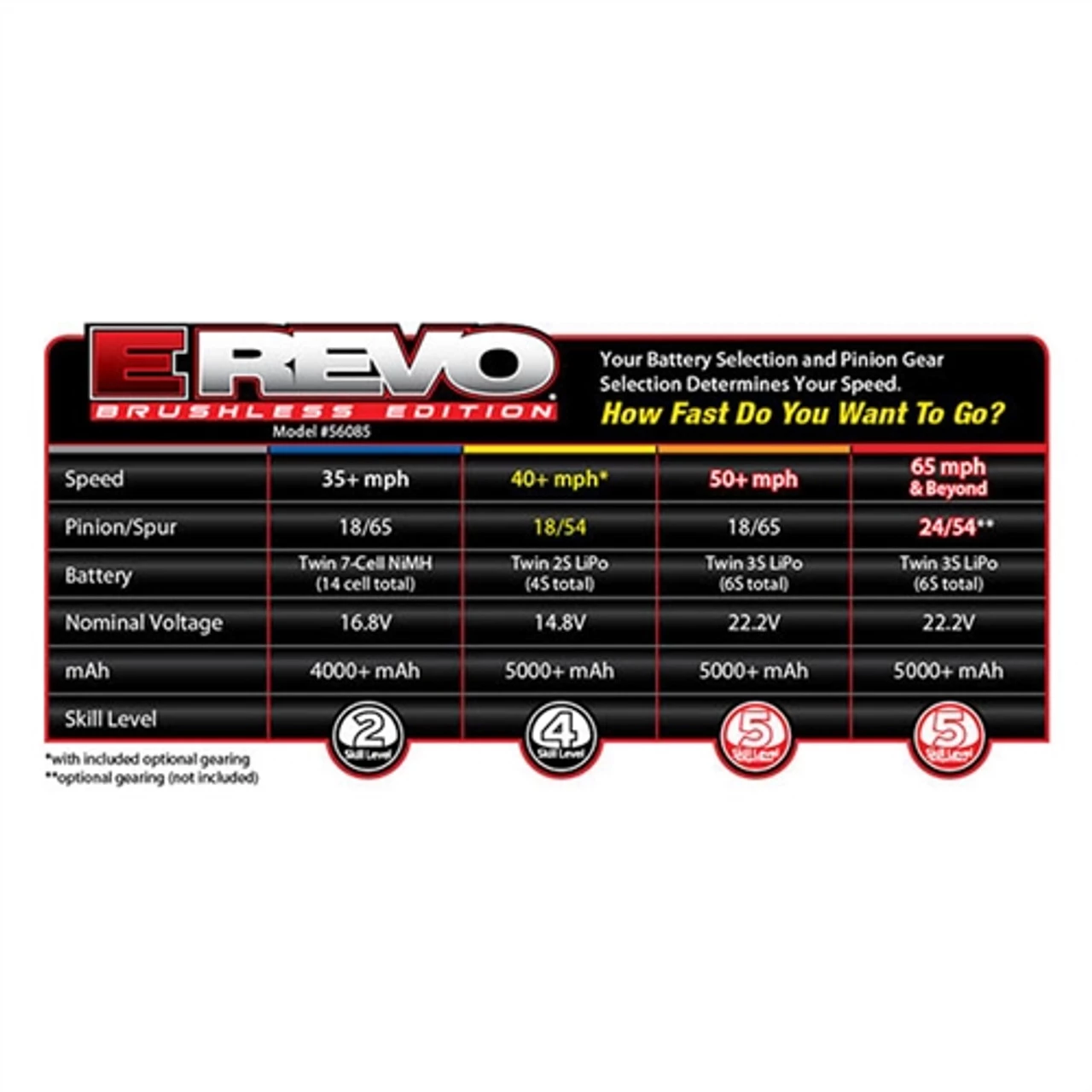

Speed: 35+mph (65+mph w/two 3S LiPo Batteries)

Requires:

2x batteries (7-cell NiMH or 2S-3S LiPo)
Compatible charger
AA batteries for transmitter
