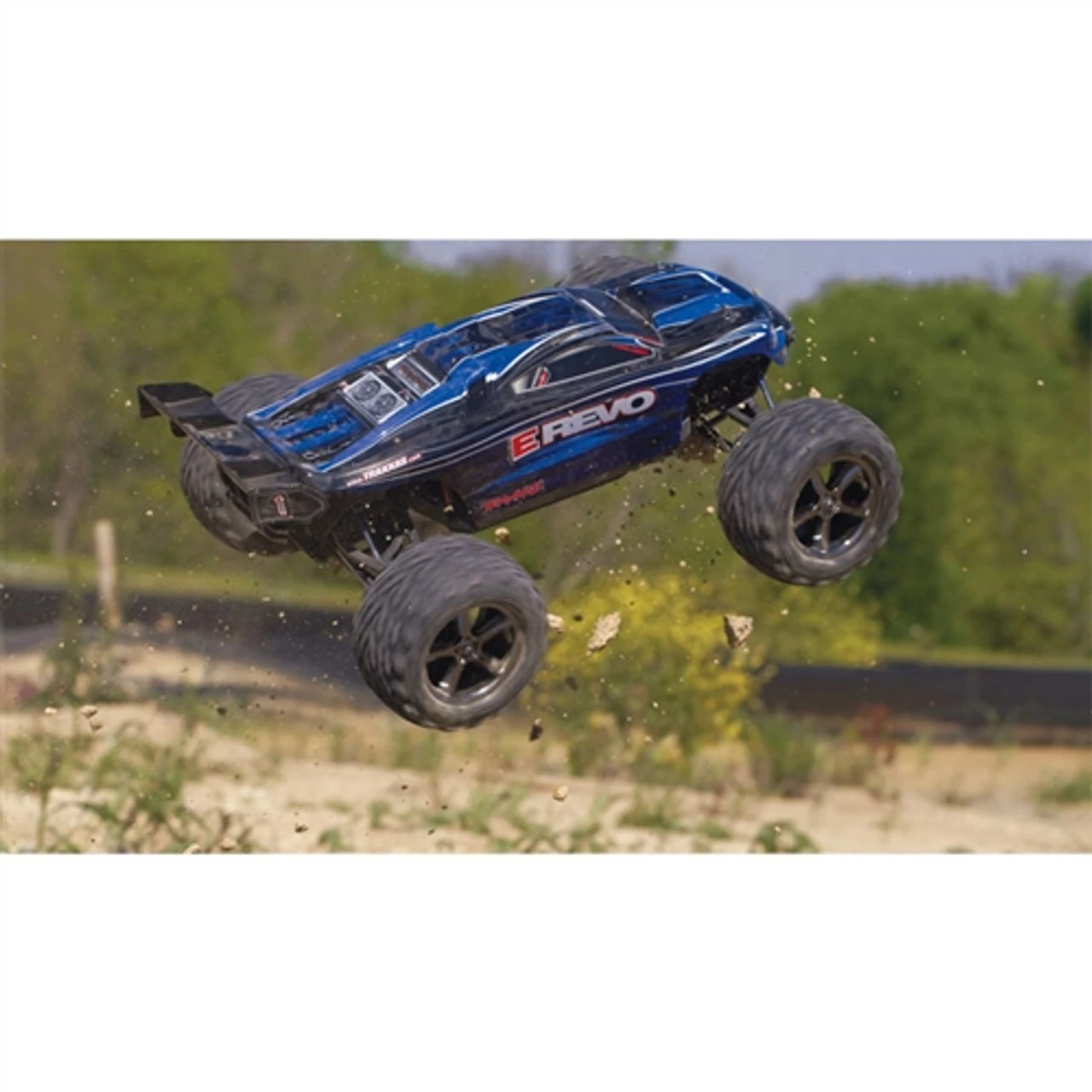

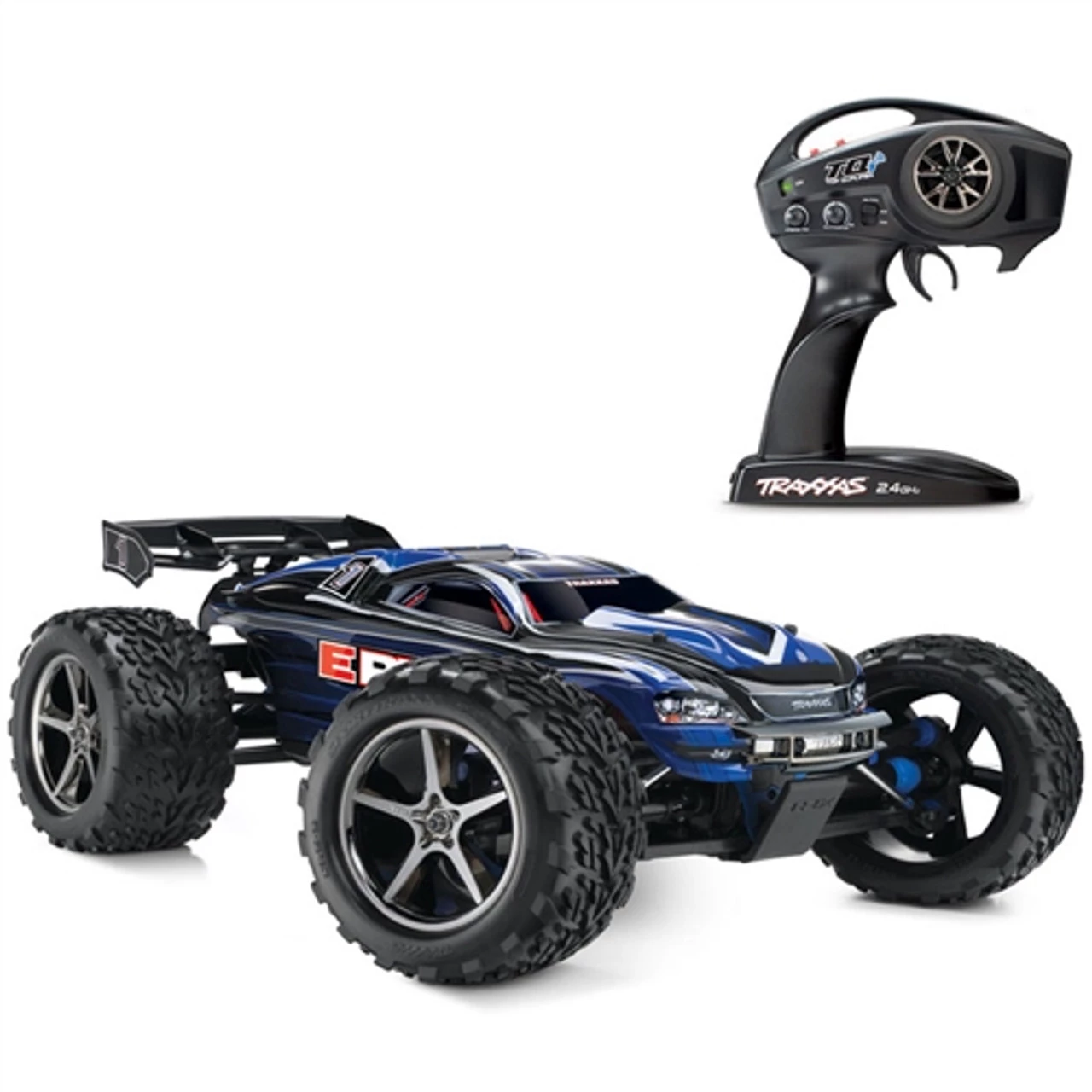

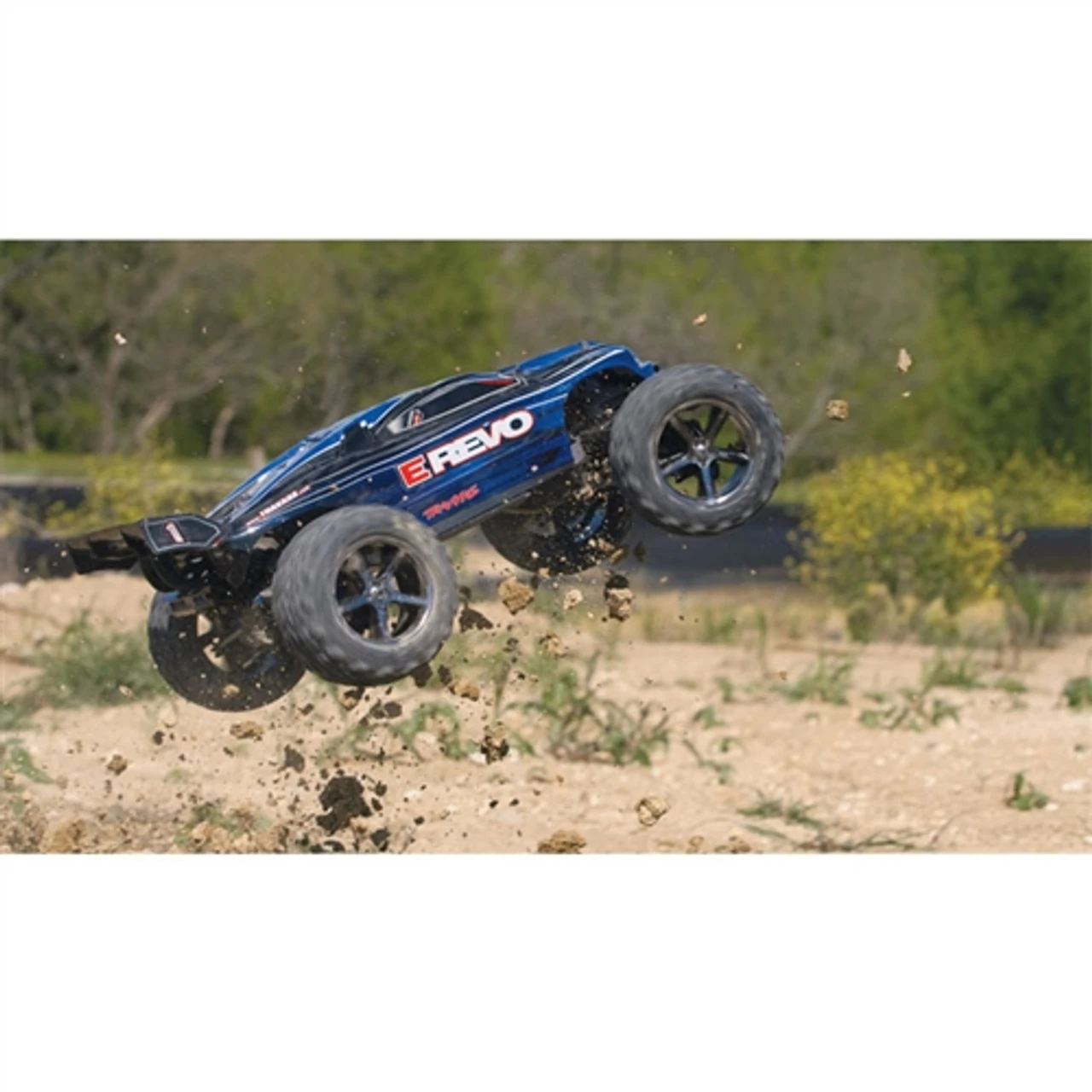

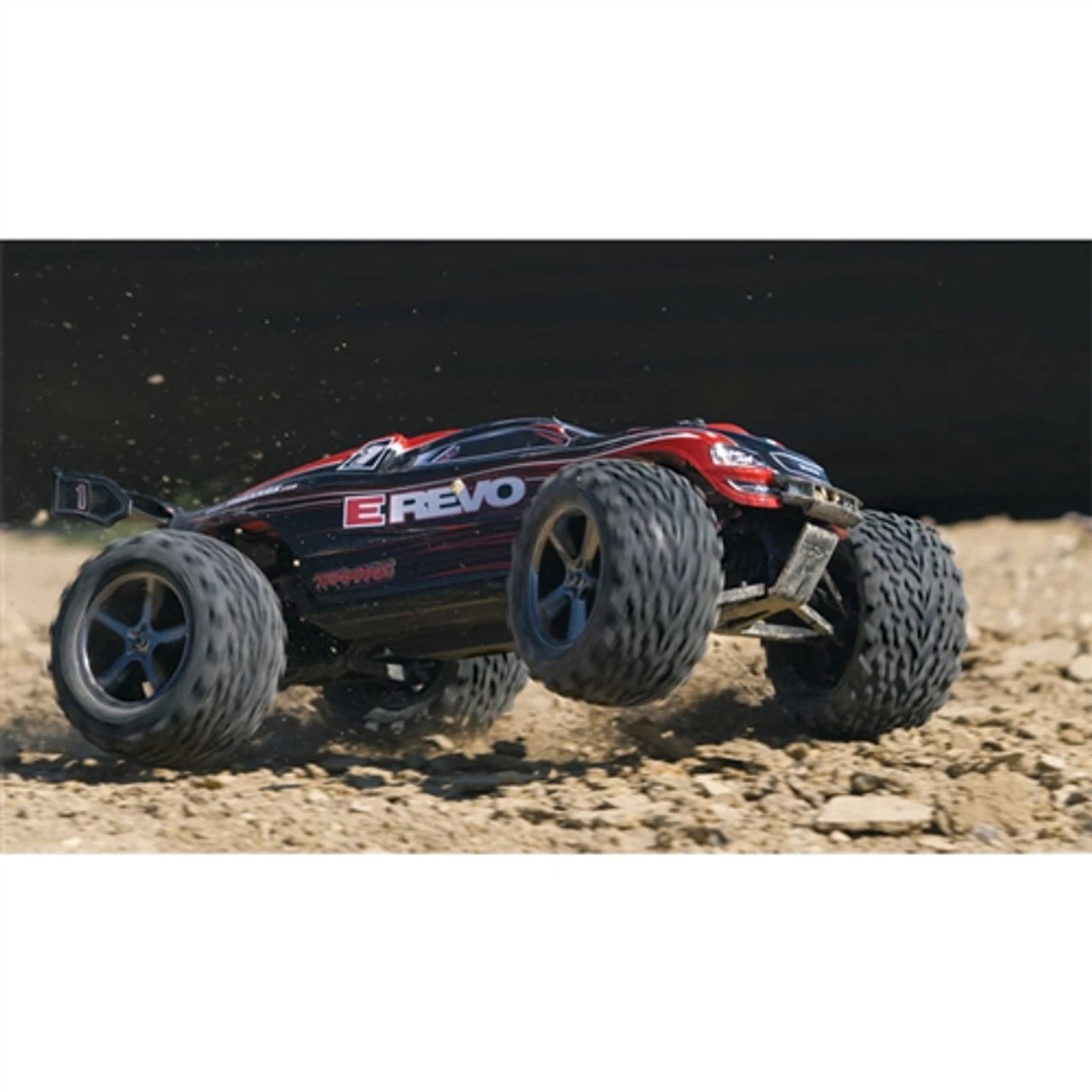

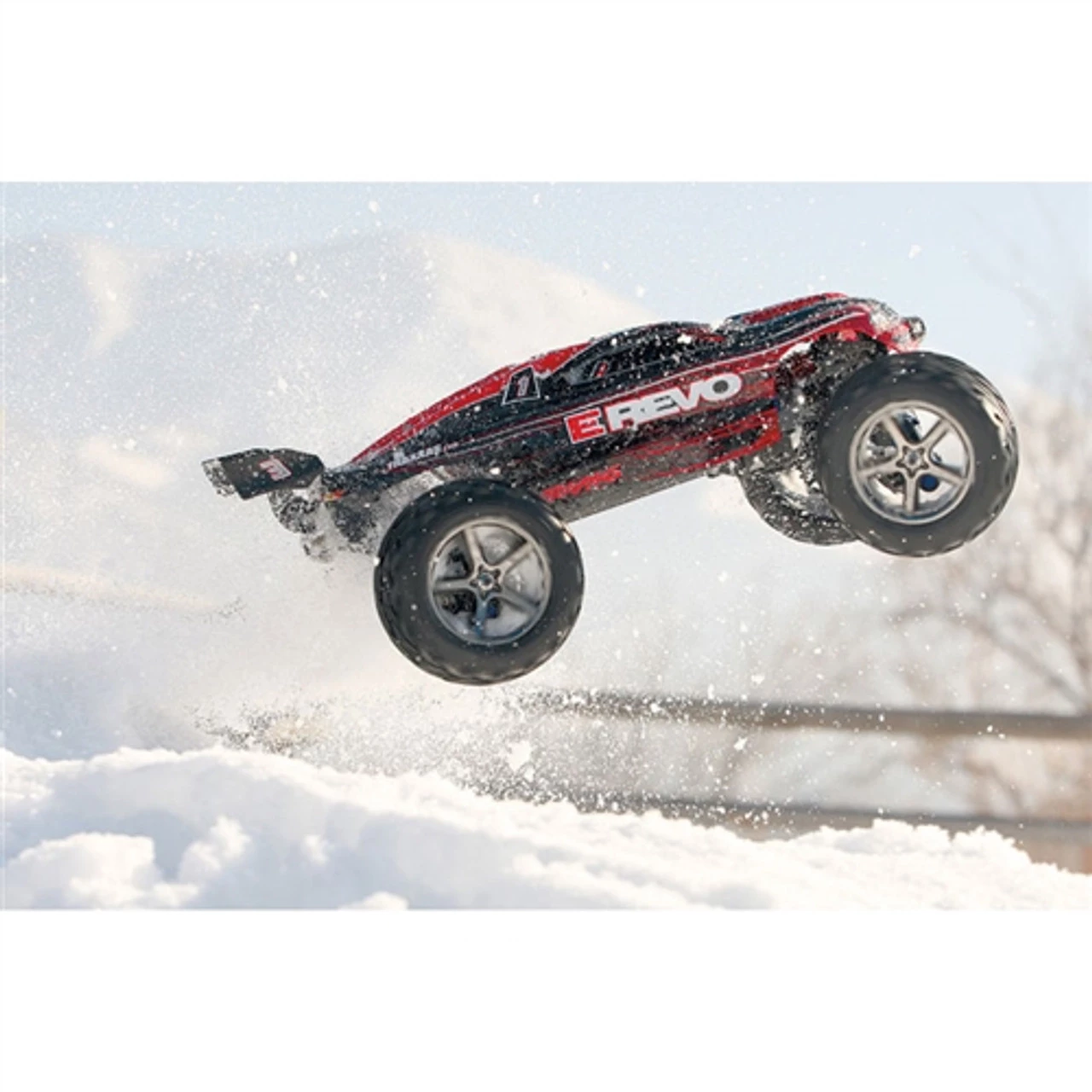

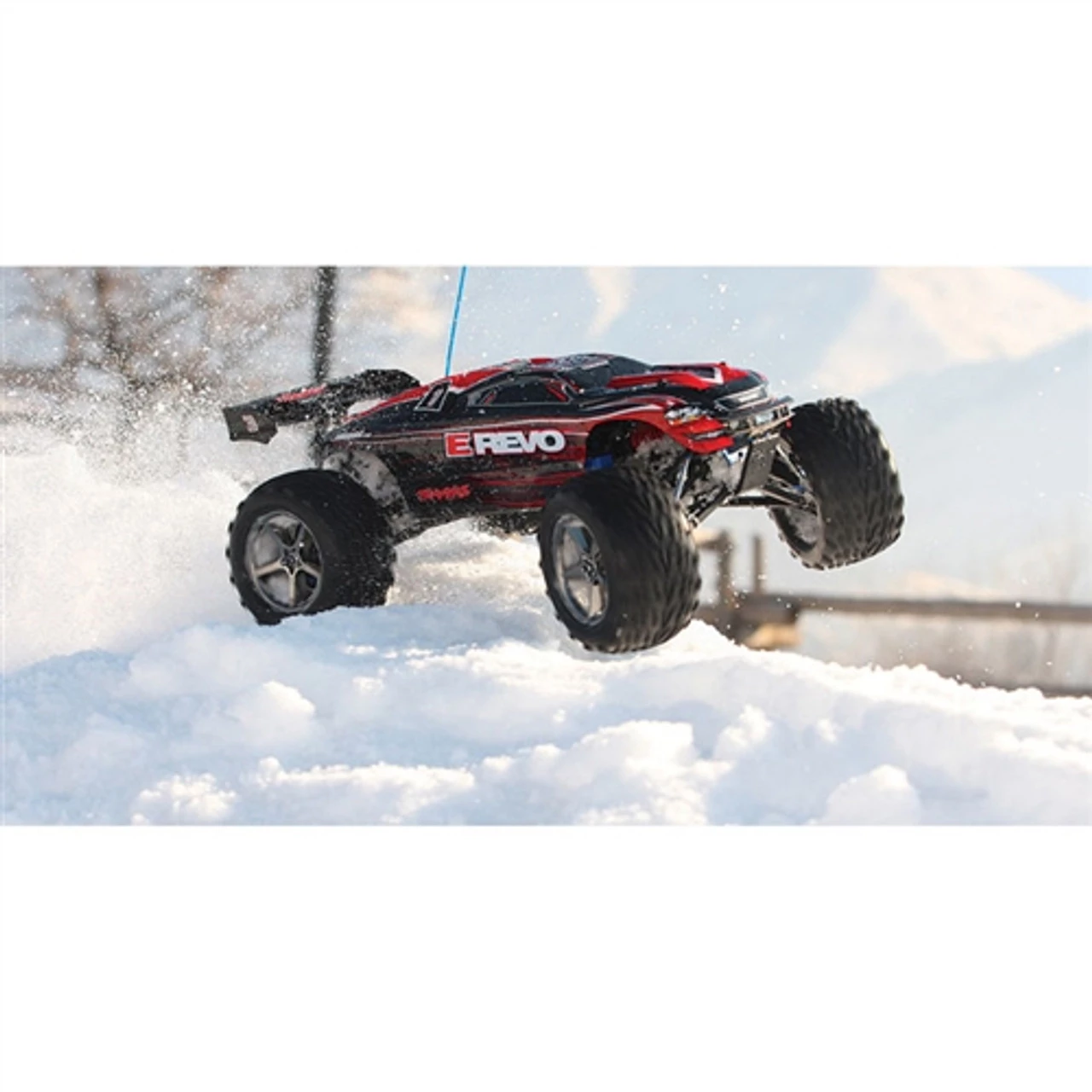

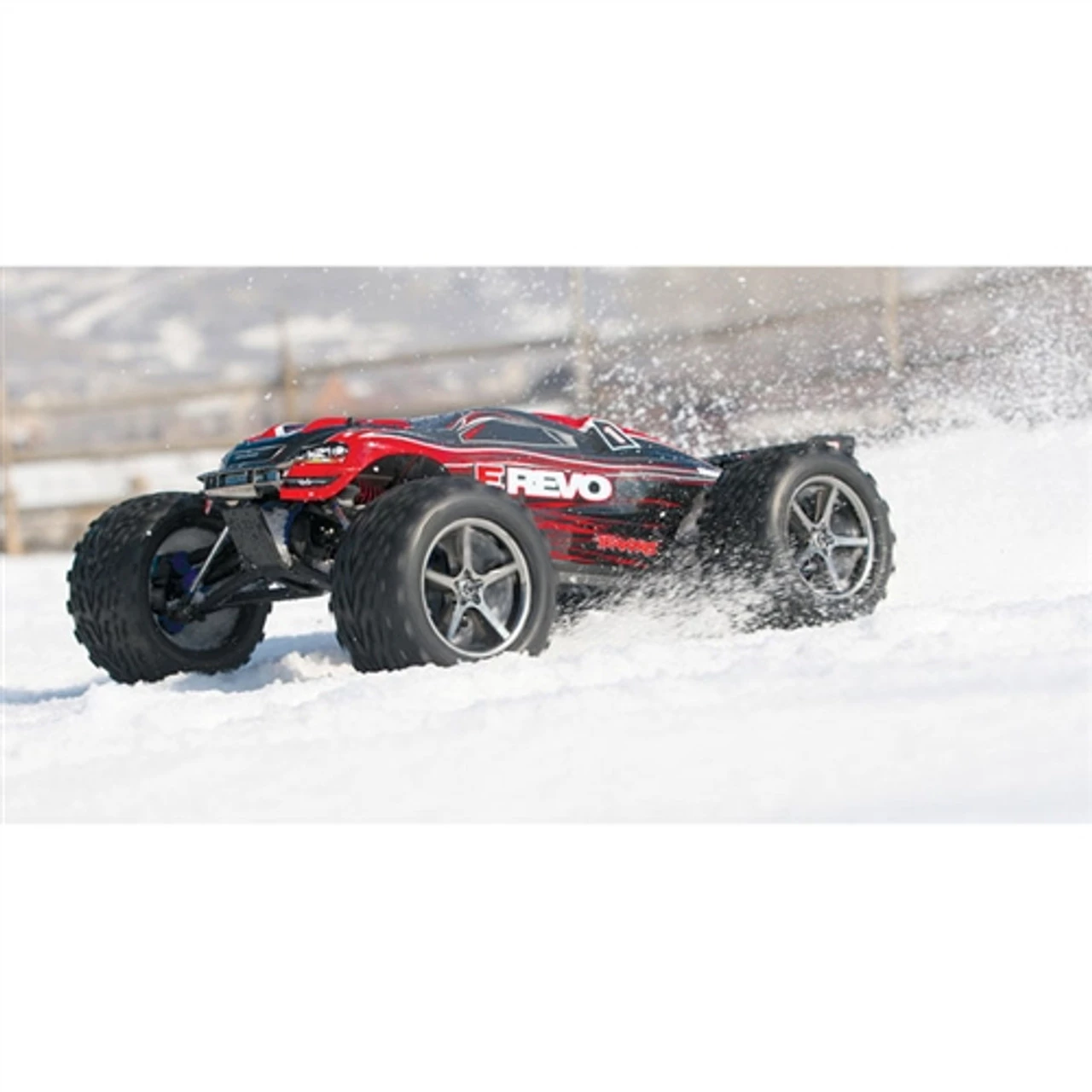

Traxxas E-Revo Electric 4WD RTR Monster Truck w/TQi & TSM

This is the Traxxas E-Revo Ready-to-Race 16.8V Brushed Electric Racing Monster Truck with Traxxas Stability Management and TQi Link-Enabled Radio System (Traxxas Bluetooth Link Module Compatible – Module sold separately). This truck comes fully assembled and Ready-To-Race, with an EVX-2 Waterproof Electronic Speed Control, Dual Digital Steering Servos, and ProGraphix painted body.

Batteries and charger are sold separately

Traxxas Stability Management
Traxxas Stability Management (TSM) allows you to experience all the extreme power, speed, and acceleration that was engineered into your E-Revo making it much easier to control on common slippery surfaces such as dusty asphalt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain your line, and then allowing you to hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep you arrow straight until you come to a complete stop.

Masterpiece of Performance
Take one look at the body and you know something here is different. Underneath the sleek, artful skin, light reveals an engineering master work. E-Revo. While others make noise about the same old things, E-Revo emerges as the most advanced electric monster truck ever created. It could only come from the minds of Traxxas.

The World’s Most Advanced Ready-To-Race Radio System
E-Revo is equipped with the world’s most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of “no channels, no crystals” 2.4GHz technology – but that’s just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or “model memory” settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi’s ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

Traxxas Link Wireless Module Compatible
The TQi’s most important new feature may already be in your pocket. The TQi can be equipped with an Traxxas Link Wireless Module (#6511, sold separately) that turns your Android, iPad, iPhone, or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store and Google Play) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model.

Features

• Traxxas Stability Management
• TQi 2.4GHz radio system
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models – just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App

• EVX-2 16.8-volt FWD/REV electronic speed control
  • EZ-Set single button programming
  • LiPo, NiCad, and NiMH compatible with two-stage Low-Voltage Detection
  • Three selectable drive profiles: Sport Mode, Race Mode, and Training Mode
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode – 50% Forward / Brake / 50% Reverse (patent pending)

• Dual Titan 550 brushed motors
• Dual digital waterproof steering servos deliver 125 oz-in of torque & 0.16-sec transit time
• Innovative chassis design with integrated dual battery compartments
• Quick release battery doors
• Battery cooling vents
• Scalable battery compartments from sport packs to brutal LiPo power
• Smooth center skid plate shields the driveline
• Weather-sealed electronics for running in water, mud, and snow
• Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
• Brushless-ready transmission with metal center idler gear
• Sealed pivot ball suspension
• Sealed limited slip differentials
• Dual-servo steering system
• Hex hardware throughout
• 3.8” black chrome Gemini wheels
• 3.8” Talon tires
• Sleek pre-painted body design
• Adjustable rear wing
• Compatible with many Revo Platinum upgrades
• Traxxas innovation built in!
• Ready-To-Race

­ Exclusive Traxxas Water-Sealed Electronics!
E-Revo is next in the line of Traxxas models that has water-sealed electronics. This exclusive Traxxas-only innovation opens the door for driving fun in water, mud, snow, and other wet conditions that stop others dead in their tracks. The patent-pending water-sealed receiver box allows the installation of your own radio system without losing the water-sealing properties.

Dual Titan 550 Motors with 16.8-Volt Power System
E-Revo comes Ready-To-Race with 16.8 volt power capacity in the proven EVX-2 power system. Dual Titan 550 motors deliver on-demand torque for wheels-up launches and top speeds over 30mph. The EVX-2 is equipped with our exclusive Training Mode feature that limits full-throttle power to 50%. In Training Mode, you can let friends who have never driven a radio controlled model try their hand with a E-Revo, worry-free. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement ESC. Fully waterproof electronics are a Traxxas exclusive that opens the door to new driving adventures on rain-soaked terrain.

Futuristic Chassis Design
Engineered by Traxxas, the ground-breaking molded E-Revo chassis sets a benchmark for electric monster truck looks and performance. The E-Revo chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Looking forward, the chassis was designed to accommodate new battery technologies and for the extreme speeds and torque of brushless power systems. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible and increases side-to-side agility by keeping most of the weight close to the center.

­Battery Compartment Vents
Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places E-Revo in a class of its own.

Quick Release Battery Doors
The futuristic chassis design incorporates enclosed battery compartments into the sides of the chassis for an ultra-clean look even with the battery packs installed. Innovative quick release battery doors mount directly to the chassis, so there are no clips or hold downs to lose during battery swaps. The doors pivot down using a hinged design and dual clasps secure the tops of the battery doors for impact-proof security. To open the battery doors depress the latches and pull on the battery door tabs. To close the doors simply press on the door until the latches snap into place.

Adjustable Battery Compartments
Keyed, adjustable L-braces located inside the battery compartments allow the battery packs to be positioned in multiple incremental positions from front to rear for precise weight bias tuning. A top mounted, spring loaded clip holds battery packs securely at the lowest point to keep the CG as low as possible.

­Dual-Servo Steering System
E-Revo takes a total system approach to eliminating the slow, mushy steering response typical on other monster trucks. It begins with power. The built in BEC harnesses up to 16.8-volts of power and delivers a consistent 6-volts of authoritative power to the twin digital high-torque steering servos.

Leading The Way
There is no other electric monster truck like E-Revo. It embodies the highest level of creativity in design and engineering skill to create the absolute best in monster truck performance. E-Revo is the benchmark that could only come from Traxxas, the leaders in innovation and design.

Unmatched Customer Support and Parts Availability
E-Revo model #56036-4 comes fully-assembled with the TQi 2.4GHz Radio System installed and adjusted, EVX-2 power system, a painted and decaled body, pre-glued tires, and detailed instructions. Traxxas backs the E-Revo and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand at Traxxas to answer your questions via phone, website, or e-mail. Unmatched parts support allows E-Revo to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!).

Specifications

Length: ­ 22.91 inches (582mm)
Front Track: ­ 16.38 inches (416mm)
Rear Track: ­ 16.48 inches (418.5mm)
Center Ground Clearance: ­ 3.86 inches (98mm)
Weight: ­ 9.5lbs (4.29kg) (w/o batteries)
11.2lbs (5.06kg) (with batteries)
Height (overall): ­ 8.275 inches (210mm)
Wheelbase: ­ 14.1 inches (358mm)
Drive System: ­ Shaft-Driven 4WD
Top Speed: ­ 30+mph
Skill Level: ­ 2

Requires:

4 AA batteries
2x 7-cell NiMH flat packs or 2S LiPo batteries
Charger
