Traxxas Pro Scale Advanced Lighting Control System w/ Power Module & Distribution Block

This is the Traxxas Pro Scale Advanced Lighting Control System with Power Module & Distribution Block

Traxxas Pro Scale Lighting

Traxxas LED lighting sets the standard for adventure after dark with authentic shadow-chasing brightness on the trail. Now, Traxxas LED lighting is even more realistic with the new Pro Scale Advanced Lighting Control System. The Pro Scale system puts you in command of high- and low-beam headlights; turn signals; brake lights; reverse lights; and even hazard signals for the ultimate in scale off-roading.*

*Requires Traxxas Link App and TQi transmitter with the Traxxas Link Wireless Module (part #6511, sold separately).

PRO SCALE REALISM
All the lighting control of a full-scale truck is at your fingertips. Turn the headlights on and off, and select high or low beams. Signal for turns, with automatic cancellation. The brake lights glow when you slow or stop. Hit reverse, and backup lights glow automatically. The Pro Scale system makes it easy.

MULTIPLE DRIVING MODES
The Power Module puts you in control. In Daytime Mode, the headlights and taillights are off. As the sun sets, choose Low Mode to activate the tail lights and low-beam headlights. High Mode turns on the high beams for trail-blasting brightness. In all modes, the brake and reverse lights operate automatically.

TOTAL CUSTOMIZATION
Traxxas Link and the optional Wireless Module make it easy to configure your lights your way, right from your iOS or Android device. Switch individual lights on and off, assign lights to each mode setting, and add additional LED accessories to the Lighting Power Module with just a touch. You’re in control.

Requires
Pro Scale Lighting Control System
LED Light Set
Installation Kit – For your specific model
Traxxas Link Wireless Module

Traxxas makes installation simple with detailed step-by-step instructions and illustrated diagrams.

All LED light kits and installation kits sold separately. Install LED lights kit(s) prior to installation of the Pro Scale Advanced Lighting Control System.

LED light kit #8030 for Land Rover Defender (model 82056-4) is not compatible with the Pro Scale Lighting Power Module

Kit Includes

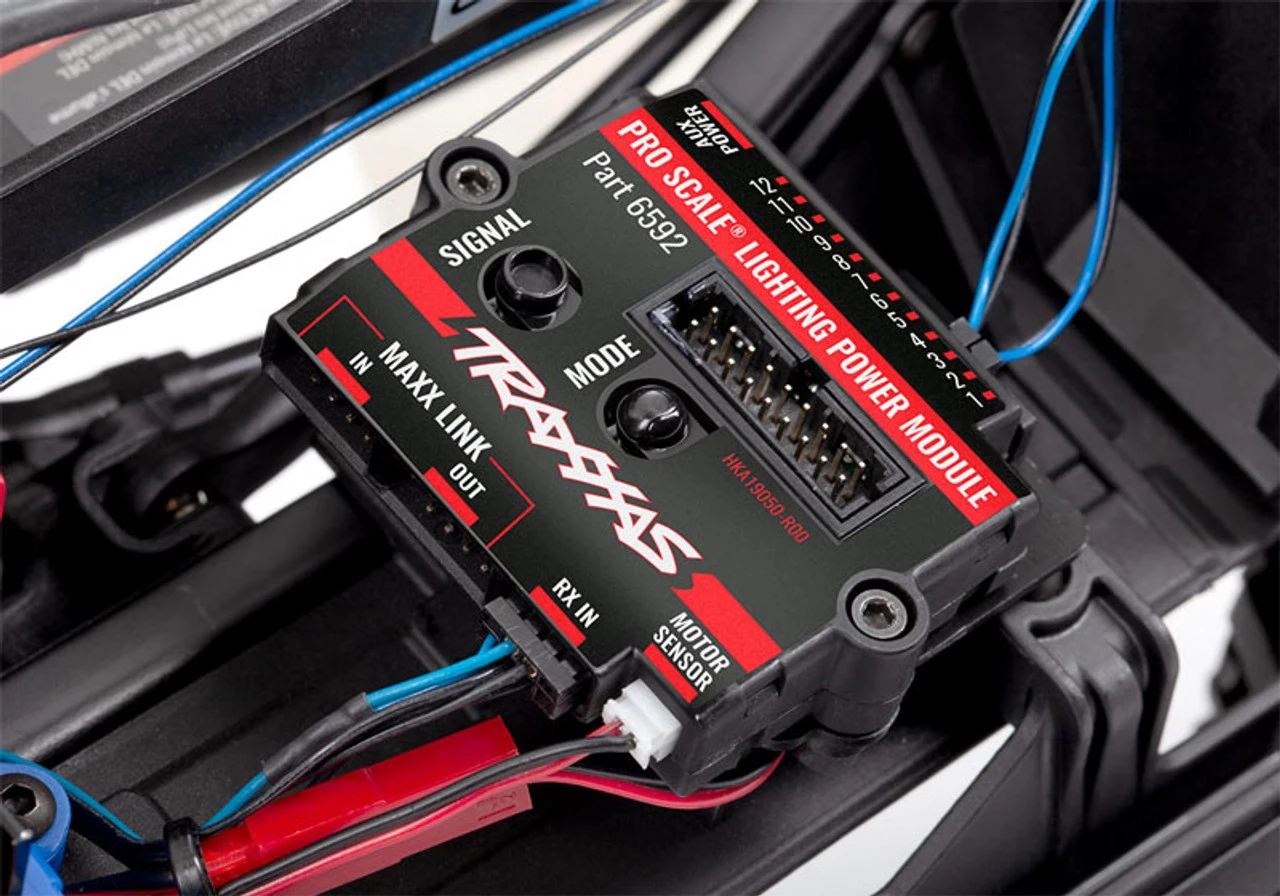

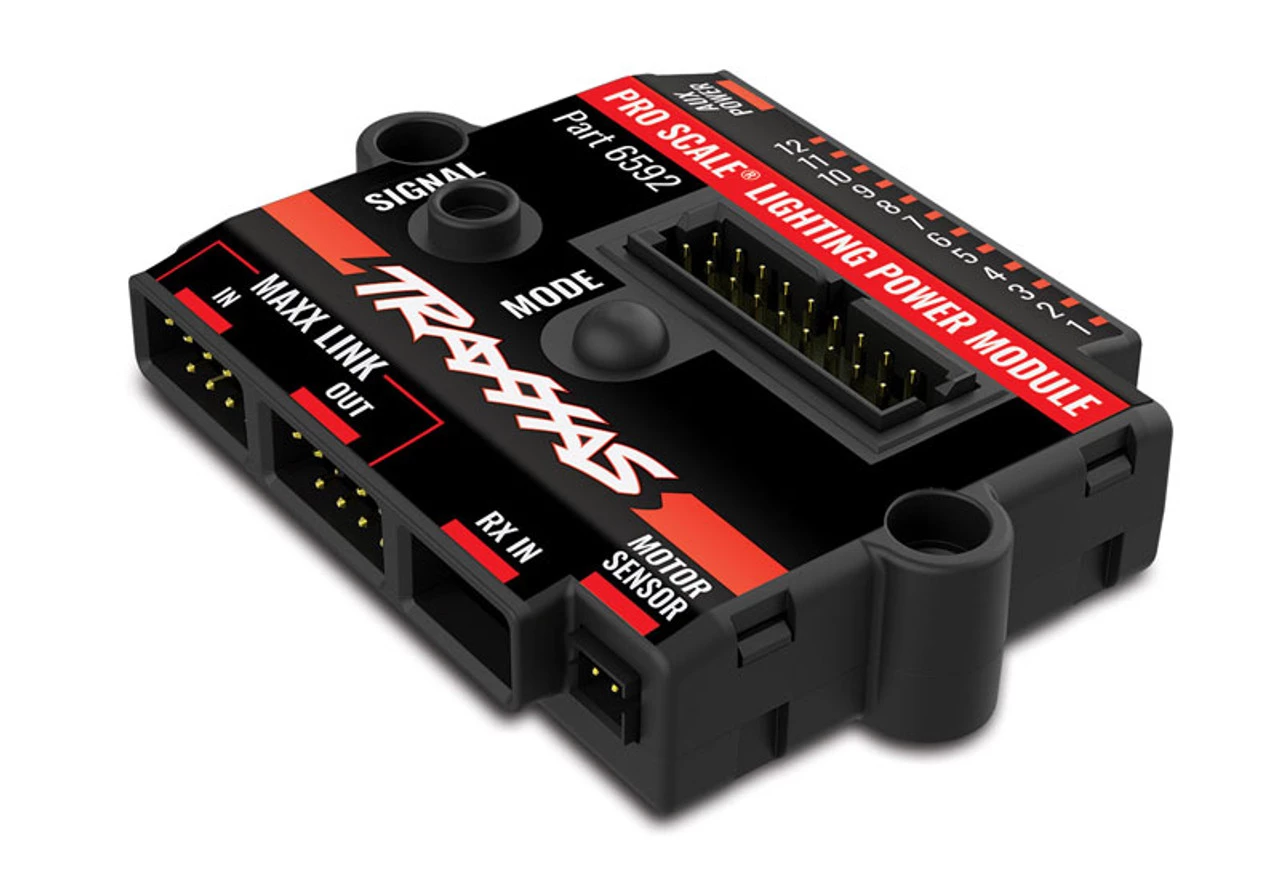

Pro Scale Lighting Power Module
Power Module Chassis Mount

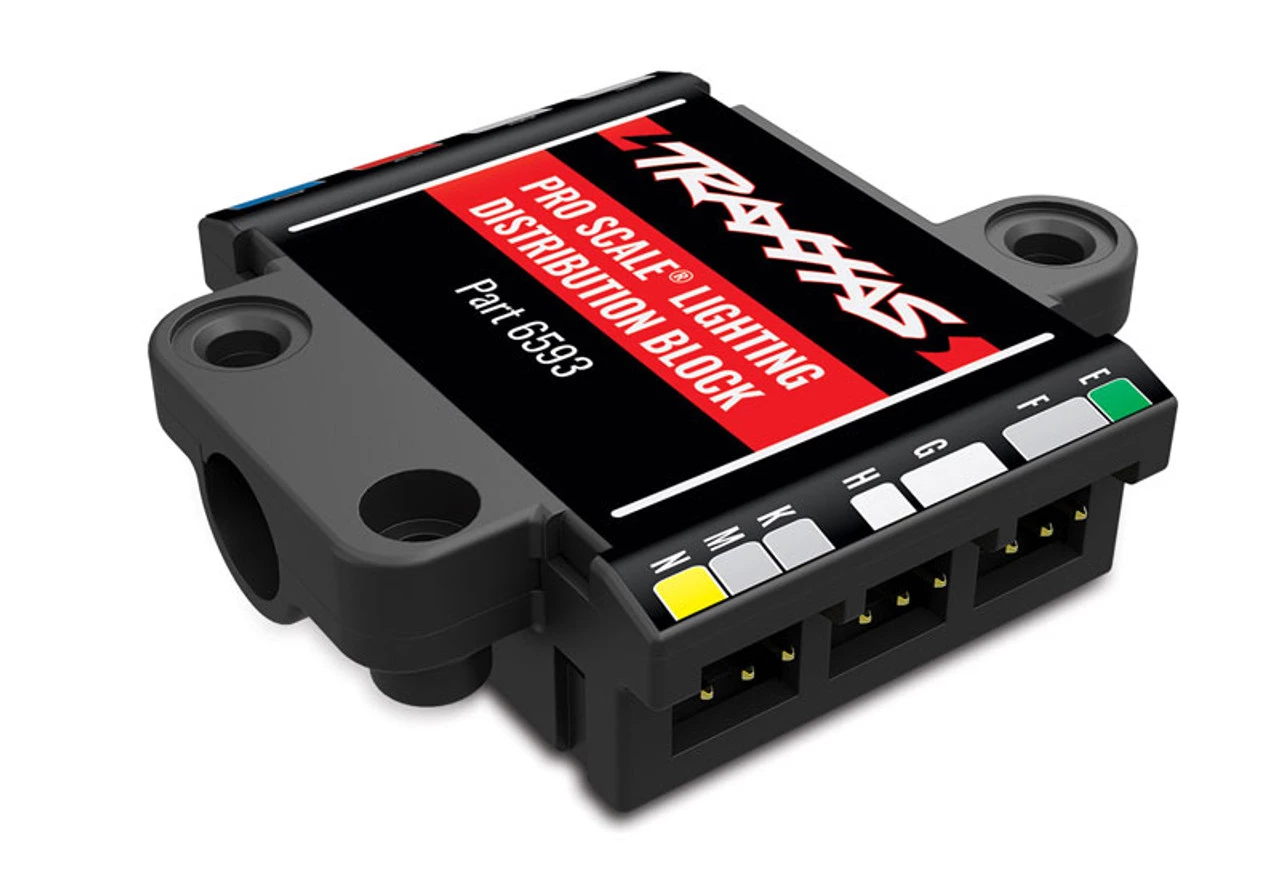

Pro Scale Lighting Distribution Block
Motor Sense Wire Harness
Breakaway Cable (Part of the distribution block)
MAXX Link Cable (Data Link) (TQi Radio System only)
Receiver Communication Cable
(2)- 2.6x8mm Button-Head Cap Screw
(1)- 2.5x10mm Countersunk Cap Screw
(1)- 2.5x12mm Cap Screw
(1)- 2.5x18mm Cap Screw
(10)- Zip Ties
Silicone Grease

Required Parts Guide
TRX-4 Sport without Lights: 6591 + 8083(Installation Kit) + 8085(LED Light Kit)
TRX-4 Sport with Lights: 6591 + 8083(Installation Kit)

TRX-4 Trax: 6591 + 8083(Installation Kit)

Mercedes-Benz G 500 4X4 without Lights: 6591 + 8893(Installation Kit) + 8898(LED Light Kit)
Mercedes-Benz G 500 4X4 with Lights: 6591 + 8893(Installation Kit)
Mercedes-Benz G 63 AMG 6X6: 6591 + 8893(Installation Kit)

Land Rover Defender without Lights: 6591 + 8085(Installation and LED Light Kit)
Land Rover Defender with Lights: 6591 + 8095(Installation and LED Light Kit)

Ford Bronco without Lights: 6591 + 8032(Installation Kit) + 8036(LED Light Kit)
Ford Bronco with Lights: 6591 + 8032(Installation Kit)
2021 Ford Bronco: 9290

1979 Chevrolet Blazer without Lights: 6591 + 8082(Installation Kit) + 8039(LED Light Kit)
1979 Chevrolet Blazer with Lights: 6591 + 8082(Installation Kit)
1969 & 1972 Chevrolet Blazer without Lights: 6591 + 8091(Installation Kit) + 8090(LED Light Kit)
1969 & 1972 Chevrolet Blazer with Lights: 6591 + 8091(Installation Kit)

Accessory part for
TRX-4 1979 Chevrolet Blazer
TRX-4 1979 Ford Bronco
TRX-4 2021 Ford Bronco
TRX-4 Equipped with Traxx
TRX-4 Scale and Trail Crawler
TRX-4 Sport Unassembled Kit
TRX-4 Sport
TRX-4 Unassembled Kit
TRX-6 Mercedes-Benz G 63 AMG 6X6
