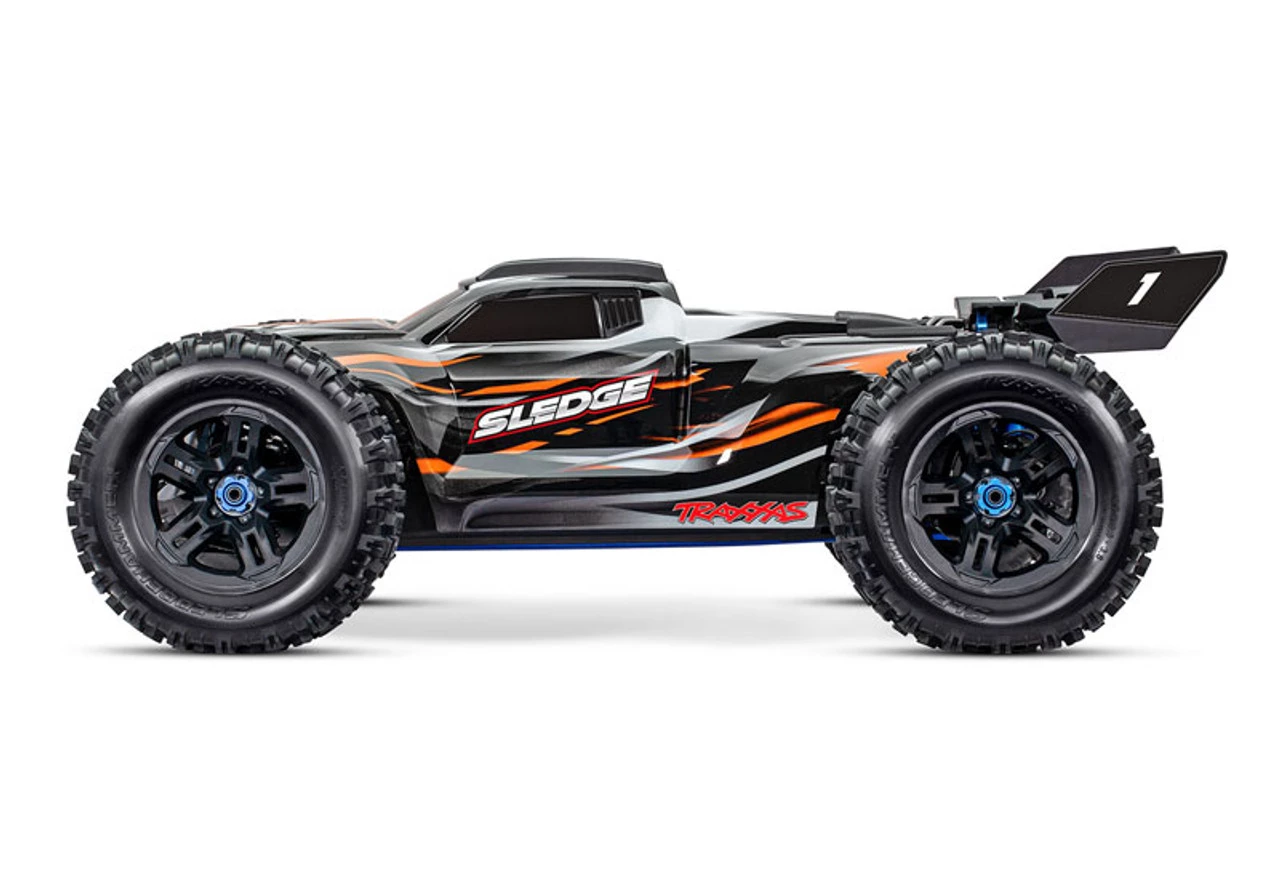

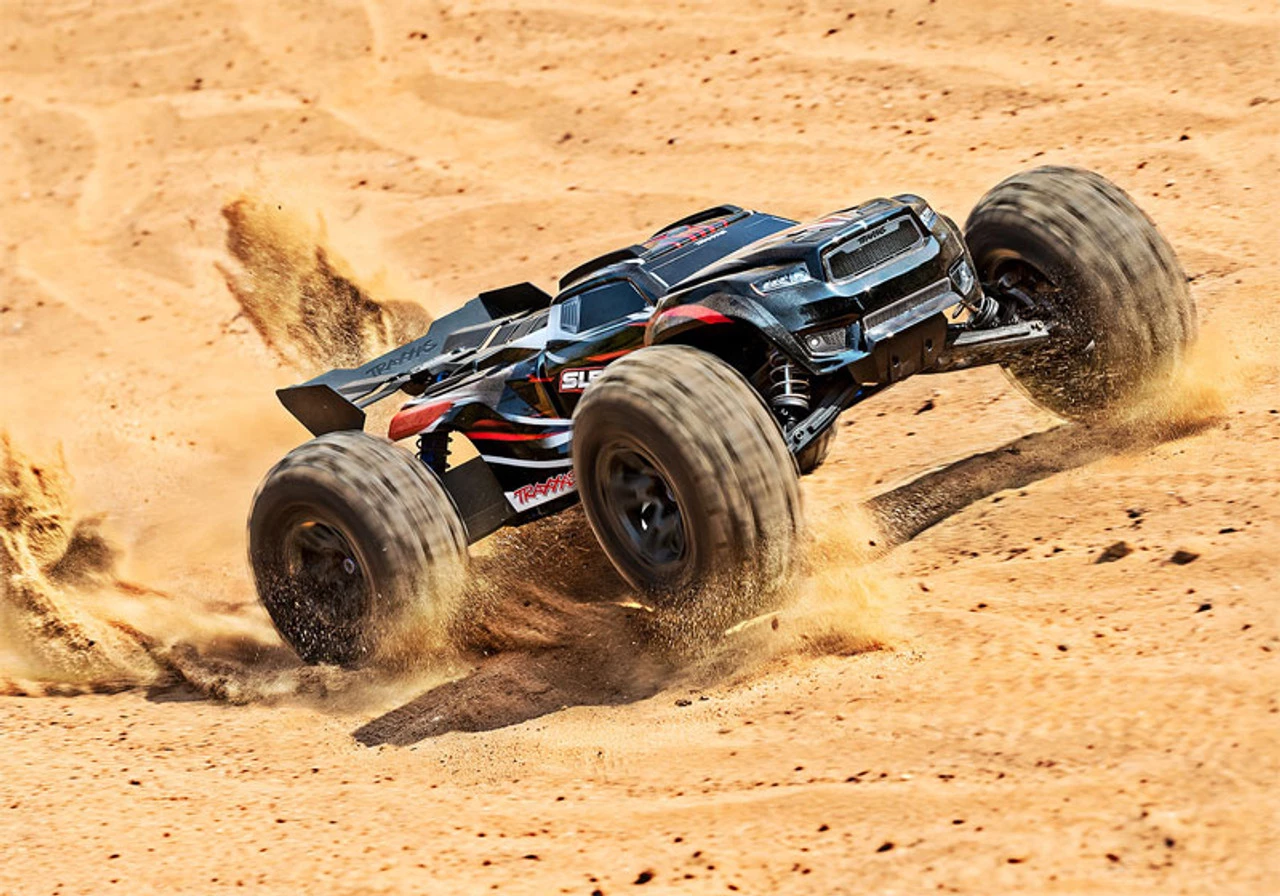

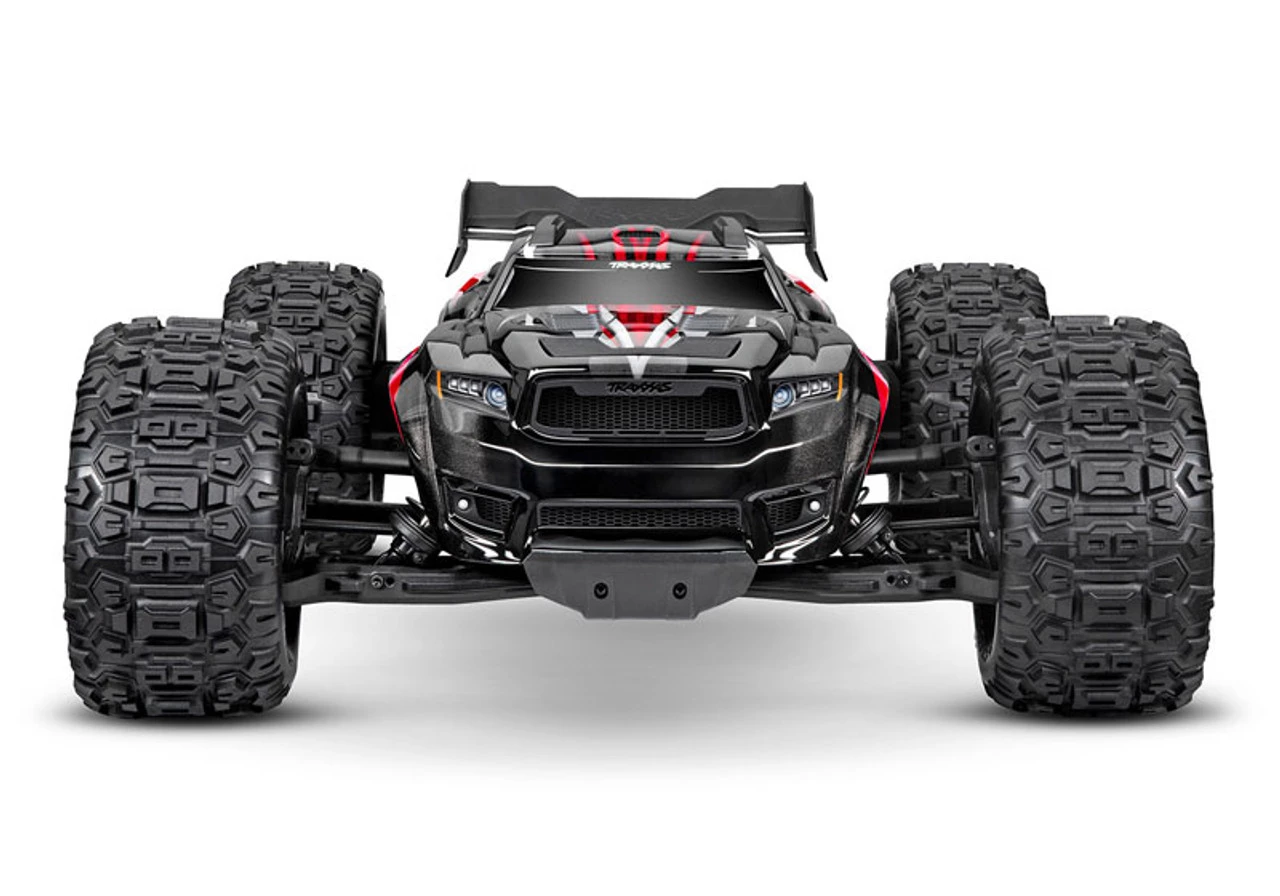

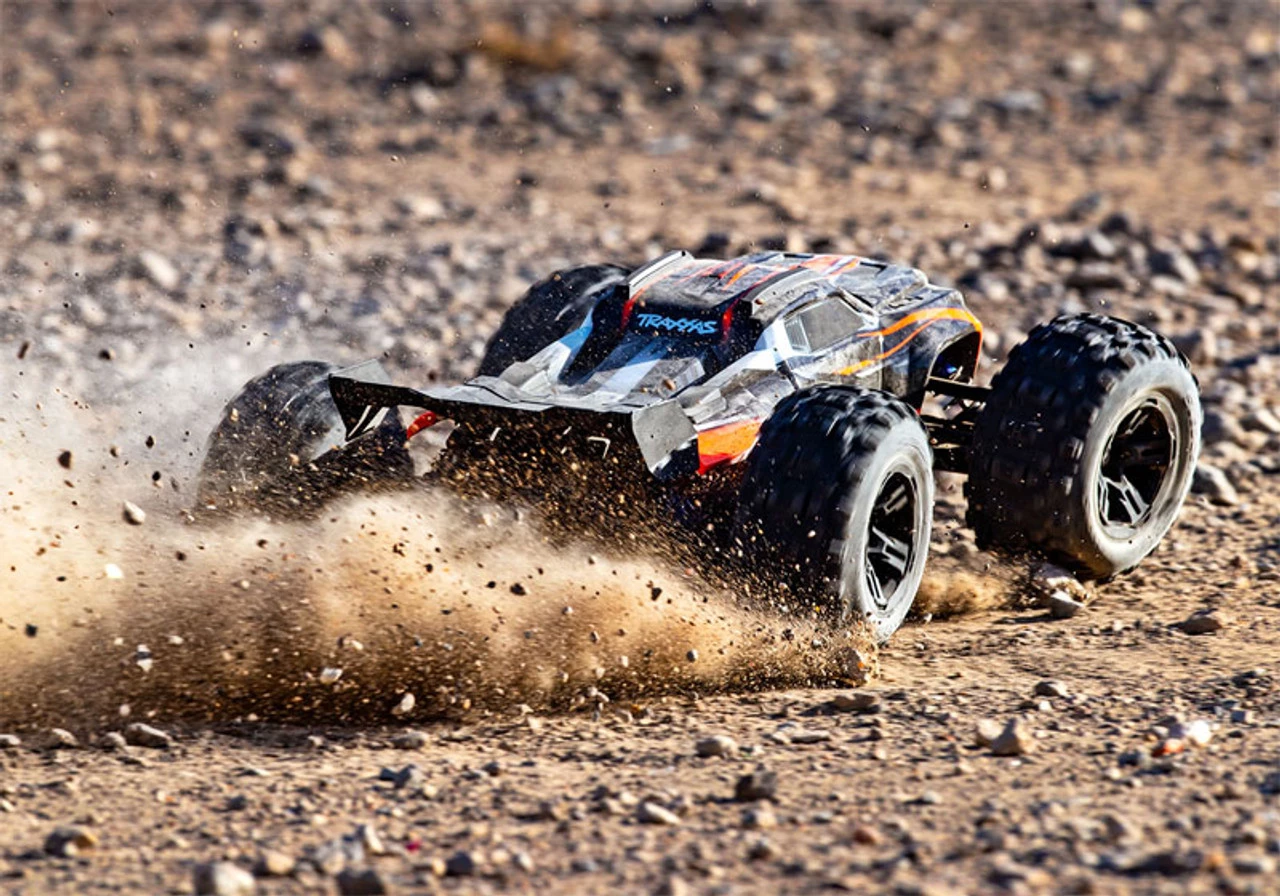

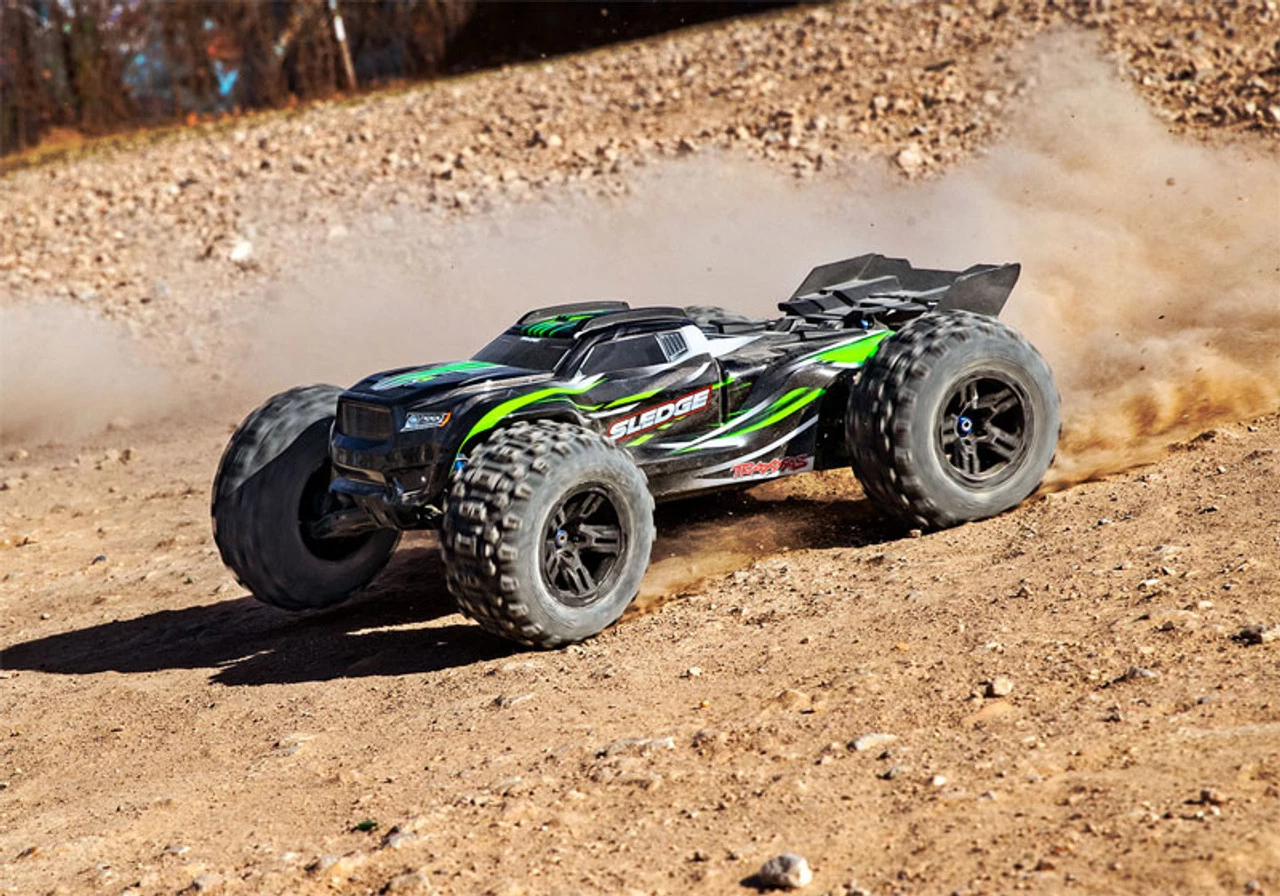

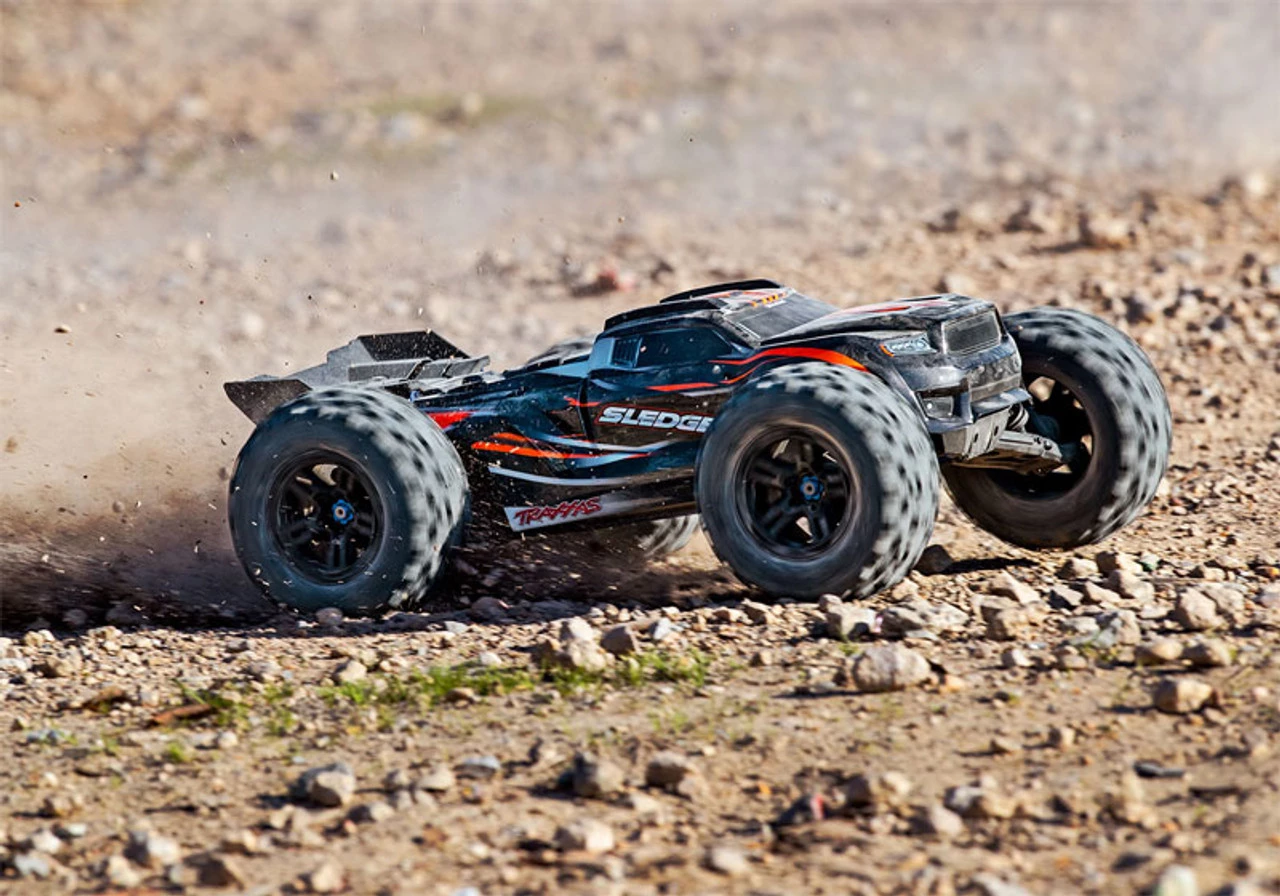

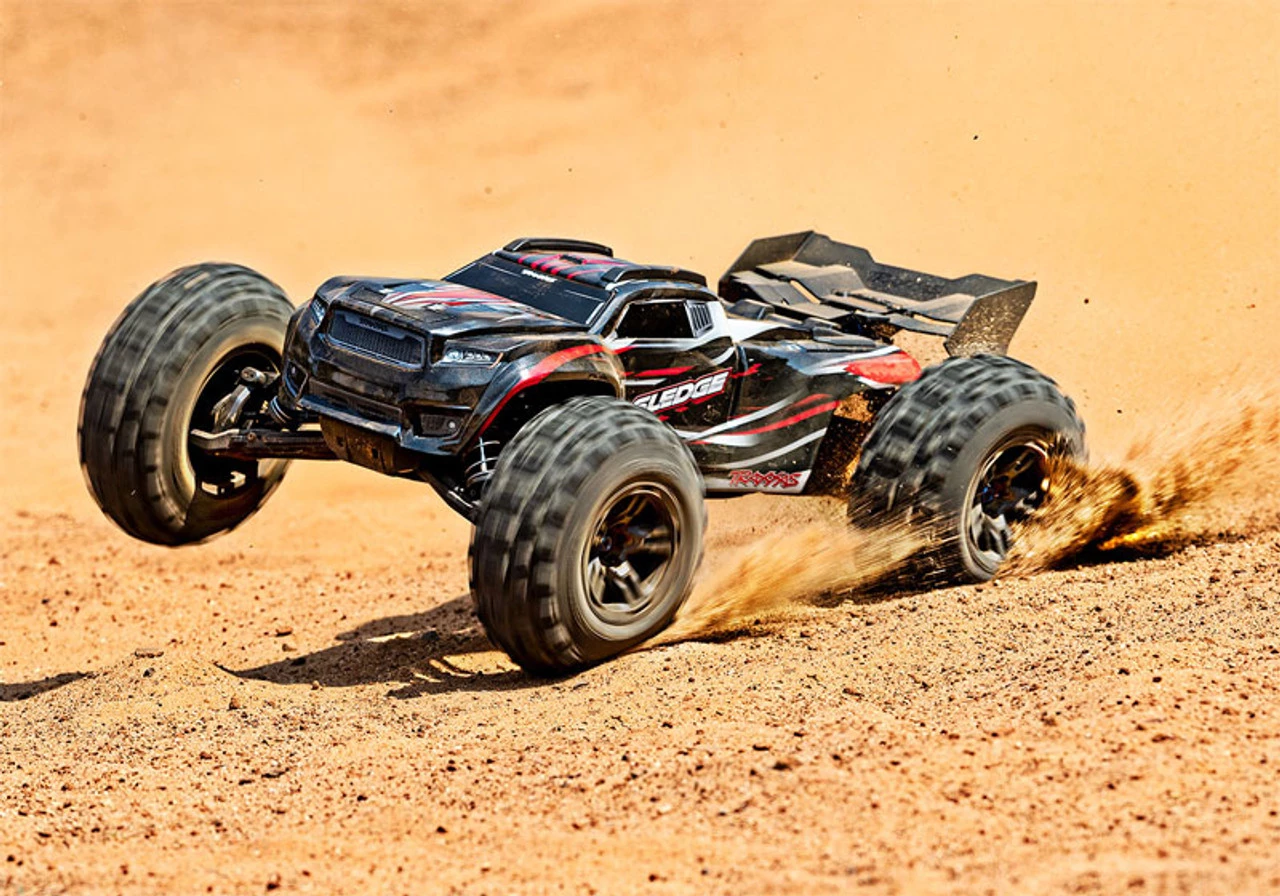

Traxxas Sledge 6S 4WD Brushless RTR Monster Truck w/6S LiPo & Dual Charger Combo Red

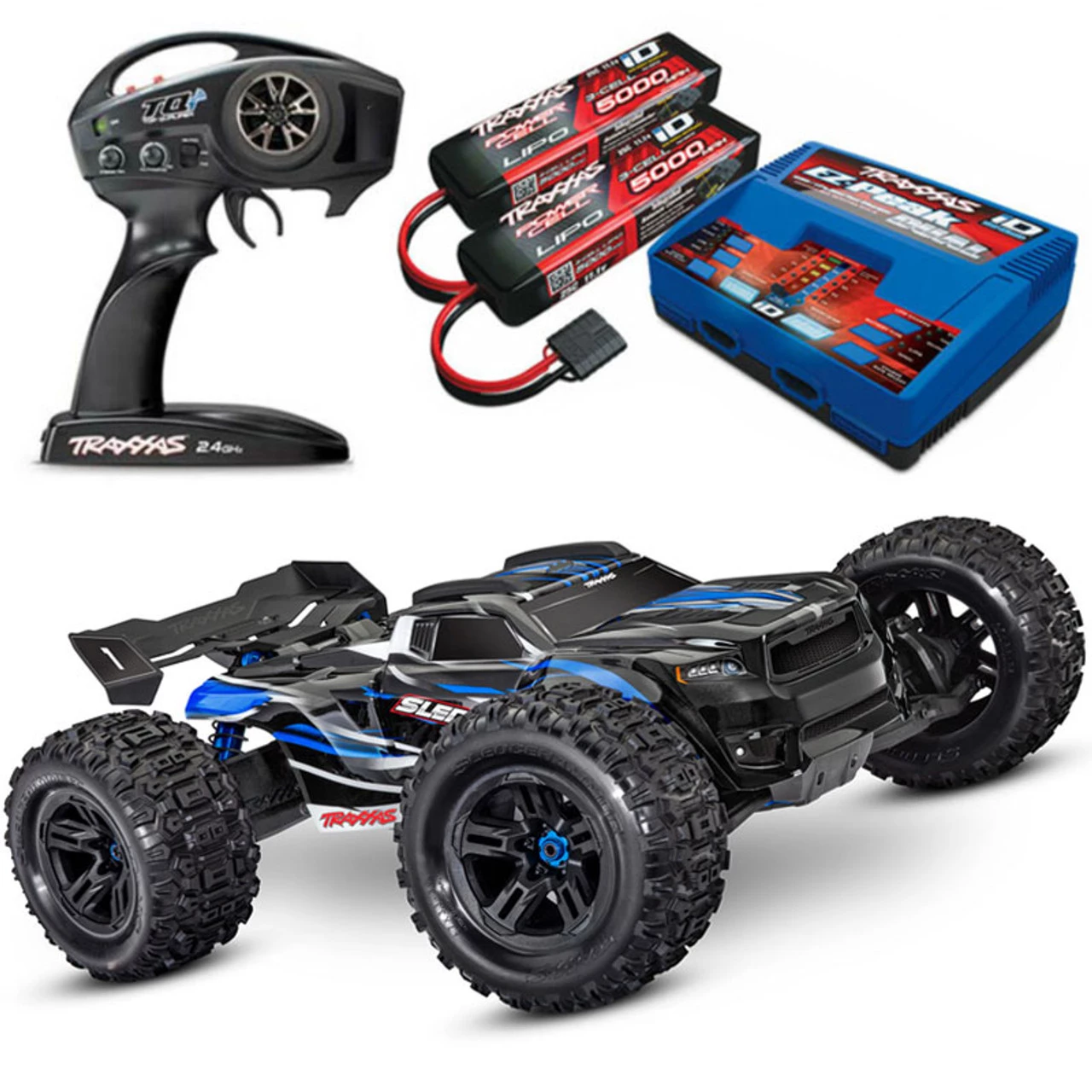

This is the Traxxas Sledge with dual LiPo batteries & EZ-Peak Dual ID charger included! Out of the box, this setup will be ready for up to 70+MPH speeds and the ultimate bashing versatility.

The Traxxas Sledge 1/8 Scale 4WD Brushless Monster Truck – Fully Assembled, Ready-To-Race, with TQi 2.4GHz Radio System, VXL-6s Brushless Power System, and ProGraphix Clipless Body.

REDEFINING 1/8 SCALE OFF-ROAD
Engineered. Tested. Built to a higher standard. The all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

ENGINEERED FOR 6s POWER
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

SUPERIOR CHASSIS STRENGTH

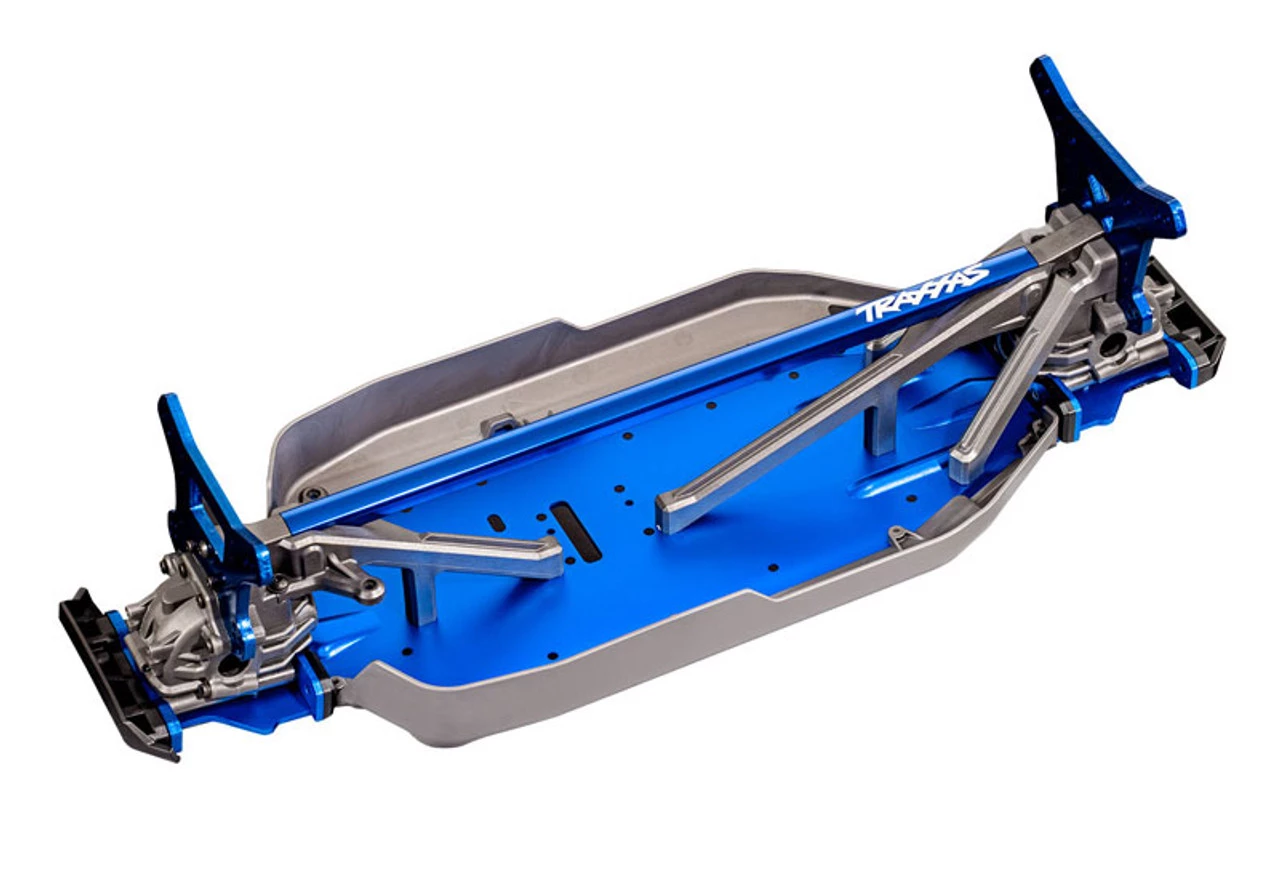

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when you release it.

MONSTER SERVO
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

VXL-6s POWER SYSTEM
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

SLEDGEHAMMER TIRES
Premium Sledgehammer tires are standard equipment. No tire upgrade required. Durable foam inserts are designed to not bunch up or break down. Patent-pending Traxxas innovation improves the tire bonding process to reduce the chance of a blown-out bead while exploring the upper range of Sledge’s capability.

RICH PROGRAPHIX PAINT
Sledge’s bold and bright ProGraphix body uses screened-on graphics that won’t chip or peel for custom looks that last, run after run.

HIGH DOWNFORCE WING
Sledge’s high-downforce wing puts the wind to work with molded-in wear pads to protect the wing against ground-scraping wheelies.

ROOF SKIDS
If things go upside-down, Sledge’s Think roof skids take the damage to keep your body looking fresh.

GT-MAXX SHOCKS
Large-bore GT-Maxx aluminum shocks mount to the towers with 4mm screws for superior strength. X-ring seals glide on large-diameter shafts, and the spring retainers are secured with screws to stay put.

FEATURES

VXL-6s Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors

Velineon 2000kV Brushless Motor

• 4-pole 2000kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
  • Supports entire motor
  • Reduces flex for longer gear life

Up to 70+ mph with Two 3s LiPo Batteries (sold separately)

Traxxas Stability Management

• Improves straight line acceleration and braking
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

TQi 2.4GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Drivetrain

• Heavy-duty steel driveshafts
• Large 8mm steel stub axles
• Steel dogbone center driveline
• Protective rubber boots on differential inputs

Transmission

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive

Differentials

• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Oversize 8mm output shafts
• Steel drive cups
• Easy-access bulkheads

Oil-filled GT-Maxx Shocks

• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on

Suspension

• Performance-optimized geometry
• Ultra-tough composite arms
  • Made from our strongest cold-weather material
  • Molded insert for clean look
  • Rear rock deflectors
  • Press-in hinge pins to reduce play
• Oversize molded toe and camber links
• Heavy-duty C-hubs
  • Stronger than conventional designs
  • Require no adjusments
• Multiple mounting points for suspension tuning

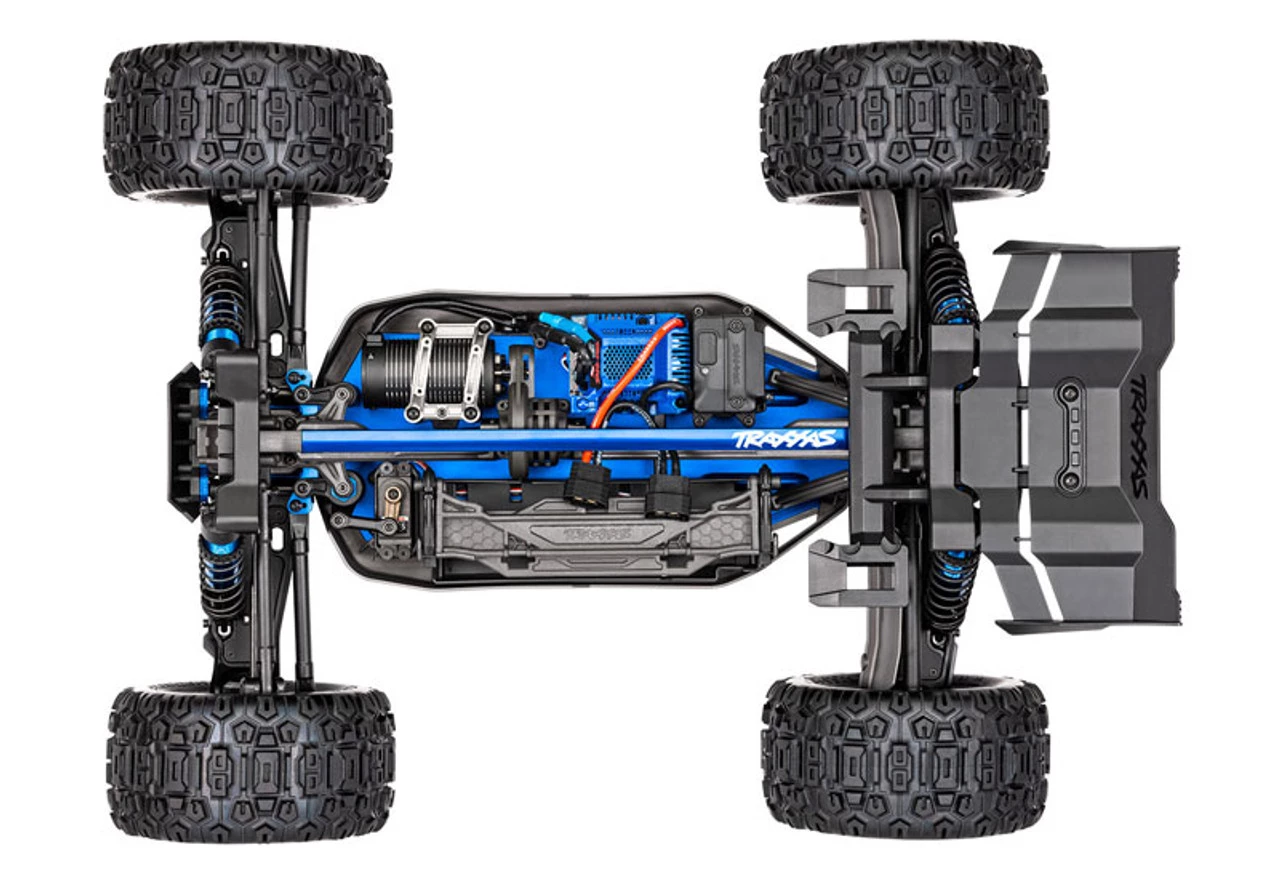

Chassis

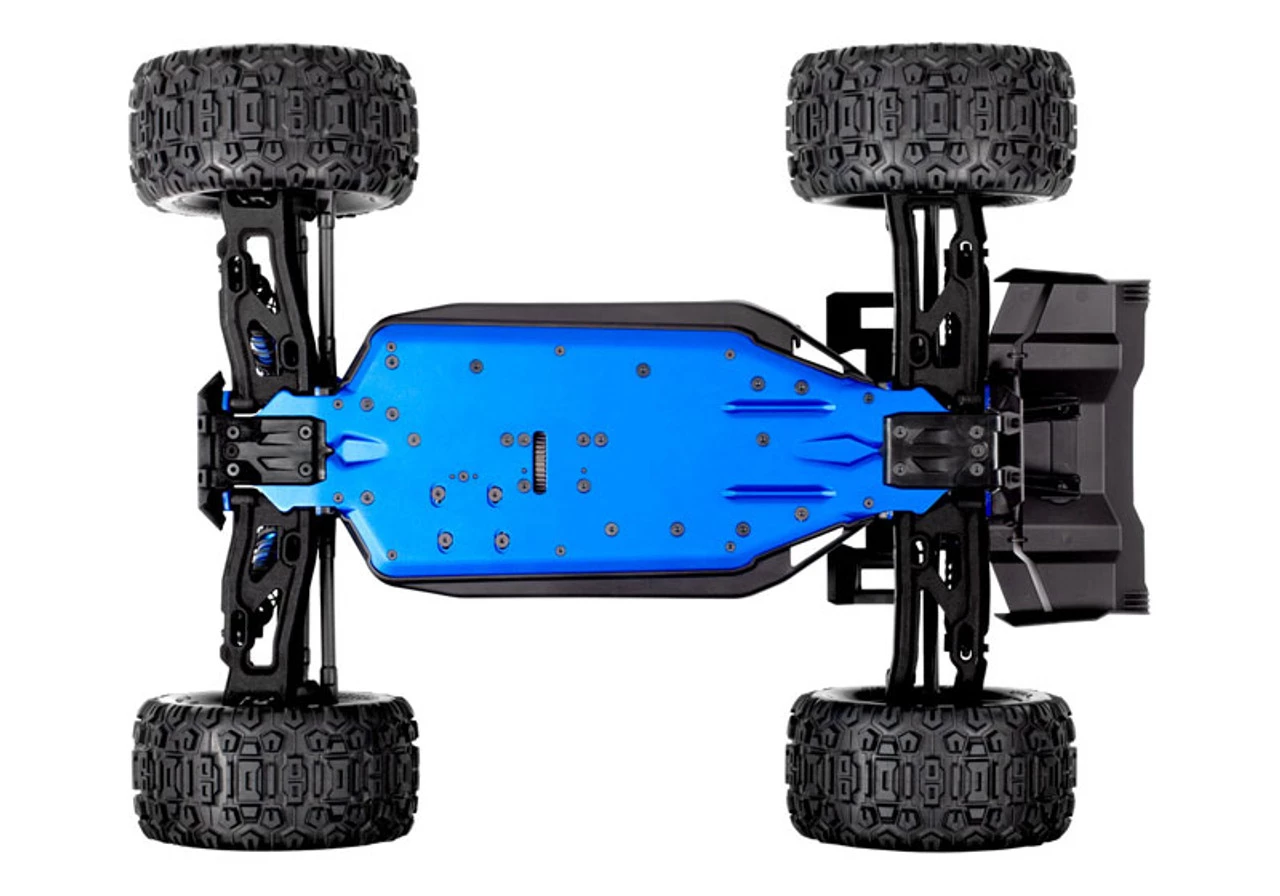

• 3.2mm ribbed aluminum chassis
  • Formed edges for improved strength
• Thick T-Bar for added rigidity
  • Stronger than round bars
• High-strength buttressing on shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers

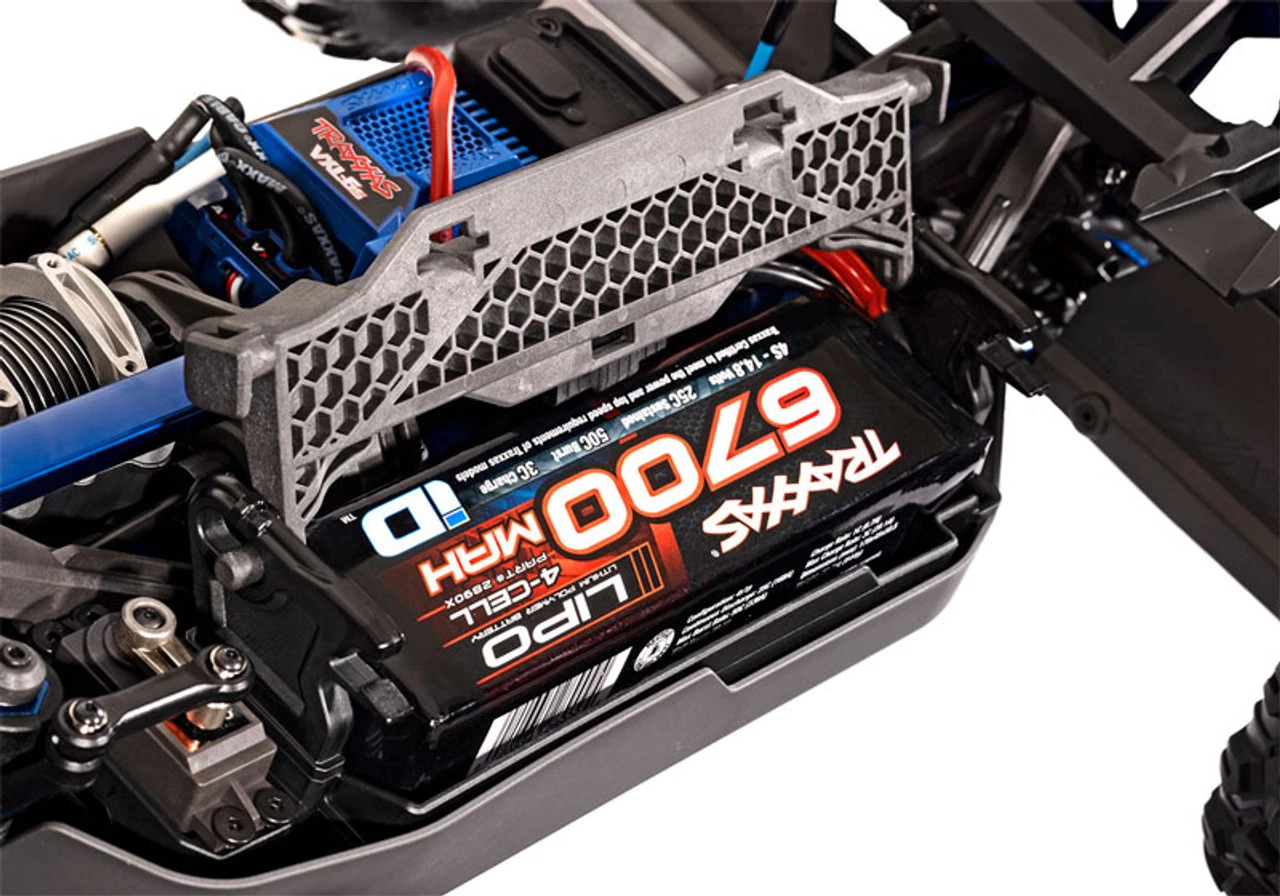

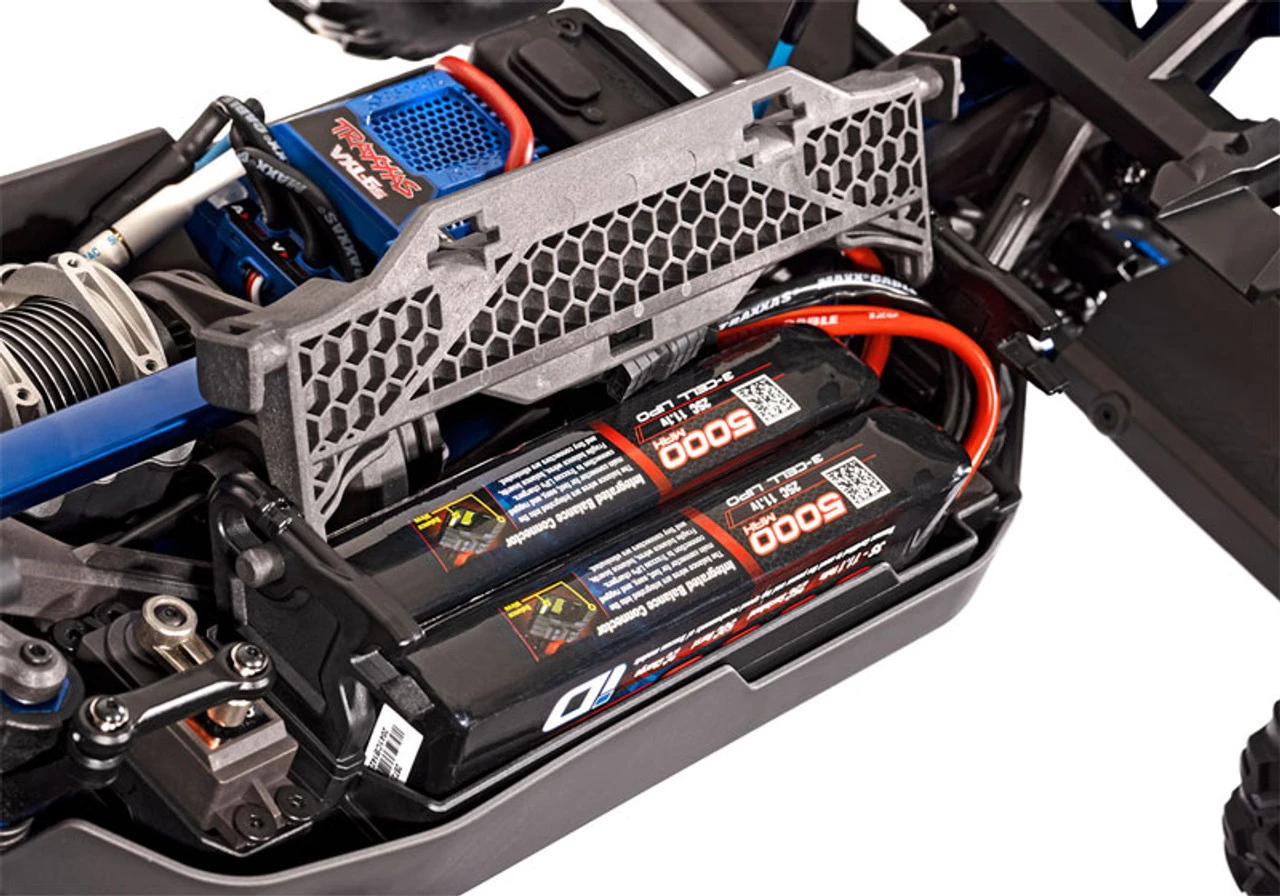

• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance

ProGraphix Body

• Clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing

Wheels/Tires

• Huge 6.7” Sledgehammer all-terrain tires
  • TSM-rated construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm aluminum axle hubs

Steering

• High-throw bellcrank steering design
• Heavy-duty servo saver with aluminum posts
• Metal servo horn
• Powerful #2275 metal gear servo
  • 347 oz-in torque
  • Fully waterproof

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating



SPECIFICATIONS
Length (including wing): 23.78 inches (604mm)
Front Track: 18.10 inches (459mm)
Rear Track: 18.10 inches (459mm)
Ground Clearance: 1.95 inches (50mm)
Weight(no battery): 12.74 pounds (5.77kgs)
Height(overall): 8.43 inches (214mm)
Wheelbase: 15.10 inches (384mm)
Shock Length(front): 5.12 inches (128mm)
Shock Length(rear): 5.67 inches (144mm)
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
Wheel Diameter: 3.8 inches (97mm)
Speed Control: Velineon VXL-6s (#3485)
Motor (electric): Velineon 2000kV Brushless
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: 3.2mm aluminum plate
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank w/metal servo arm
Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer Tires & foam inserts; 6.7×3.8
Radio System: 2-Channel, TQi 2.4GHz Transmitter with TSM receiver
Servo: Torque: 2275 Waterproof, metal-gear (347oz-in torque)
Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)**
**Optional Gearing Need for Top Speeds:
    65+ – 16-T Pinion / 52 Tooth Spur (TRA6489X & TRA9652)
    70+ – 18-T Pinion / 46 Tooth Spur (TRA6491R & TRA9651)
Skill Level: 4
Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
                    Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
                               *Using included optional foam spacer
Required Batteries: 4 “AA” (transmitter)

REQUIRES
(4) AA alkaline batteries for the transmitter.
