Traxxas TRX-4 Tactical Unit

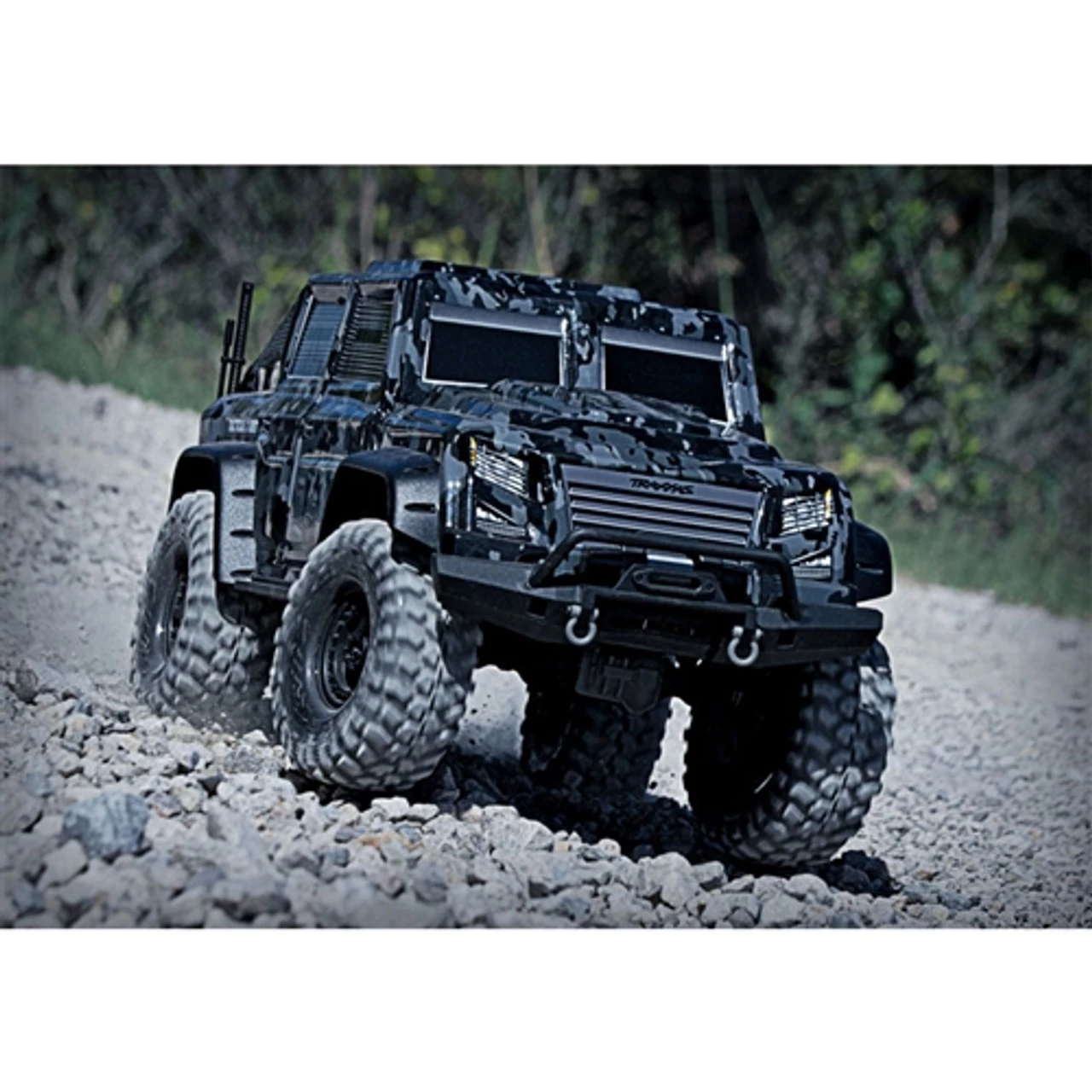

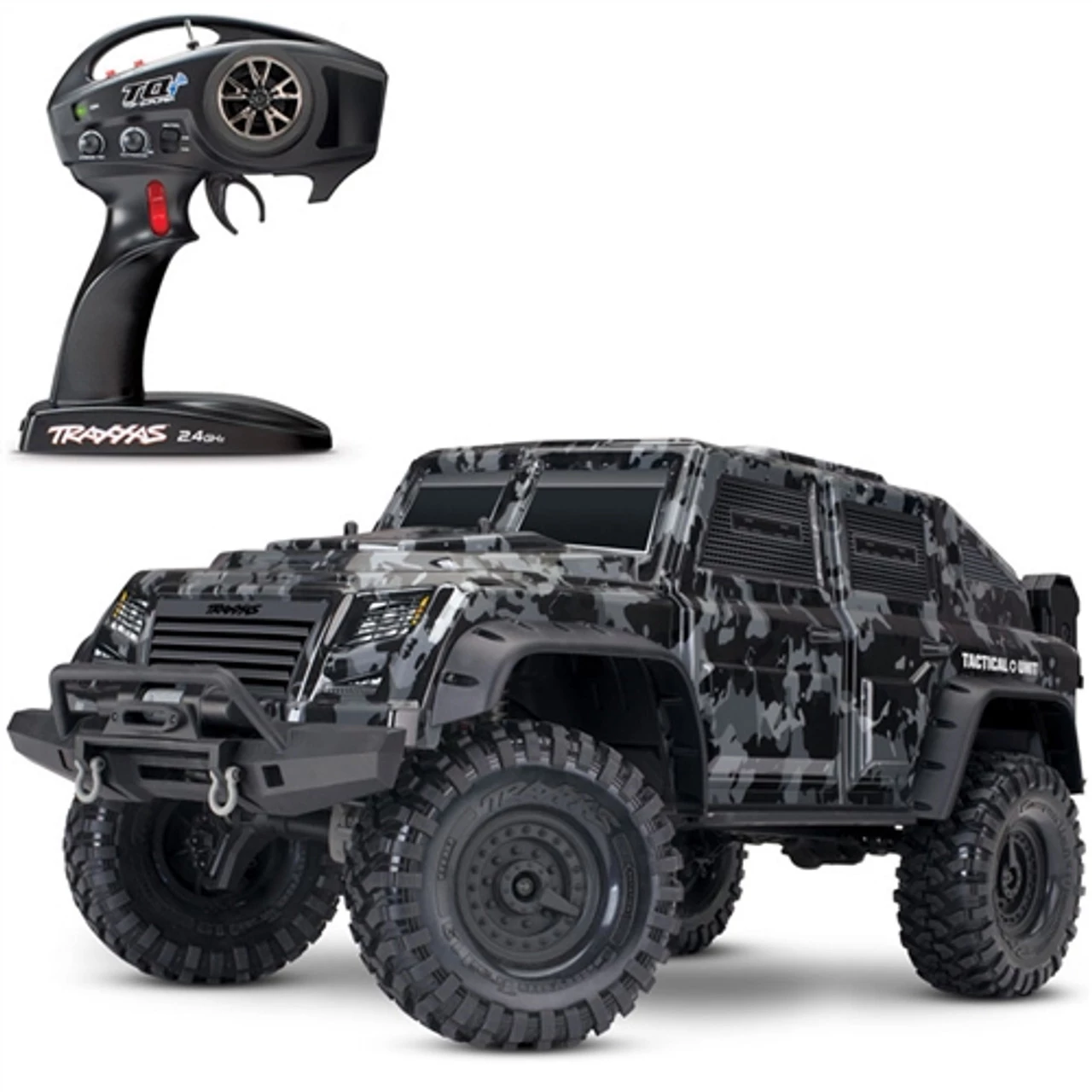

This is the Traxxas TRX-4 Tactical Unit Camo Scale and Trail Crawler. The Traxxas TRX-4 Tactical Unit is a rapid-response vehicle designed to charge into practically any situation, emerging unscathed and ready for the next fun adventure. In town, it powers over curbs, storms into puddles, and crawls through the deepest potholes. When the road ends, mud, rocks, and streams are easily conquered by this all-terrain machine. The Tactical Unit shares the same highly innovative features and capability of the TRX-4 Scale and Trail Crawler, but includes a rugged, lightweight tactical body for increased agility. Where other trucks fear to go, the Tactical Unit charges ahead full throttle! Just add a battery and charger to start traversing nearly any terrain!

TRX-4 Tactical Unit
The secret to the Tactical Unit’s extreme all-terrain capability lies underneath its tough camouflaged body. Exclusive portal axles deliver maximum ground clearance and virtually eliminate torque twist. Remotely-actuated front and rear differentials unlock for all-out speed and lock for rock-gripping traction on treacherous surfaces. The high/low range transmission transforms the Titan motor’s power into incredible torque in low gear or blazing speed in high gear. Built the Traxxas way, the Tactical Unit is tough, powerful, and ready to take on your wildest adventures.

Requires: Battery and charger – see recommended items at bottom

Features

• Tough Night-Camo Body
  • Lighter weight to lower CG and increase agility
  • Rugged fender flares
  • Front bumper with tow hooks and replica winch
  • Full Nylon composite wheel wells and floor pans
  • Rear bumper with scale accessories and functional spare tire
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode – forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 23S LiPo (7.4-11.1V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance (3.14”)
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Rigid Steel Frame
  • 1.5mm thick steel frame rails increase torsional rigidty
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CVDs
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45-degree steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front – 3 link with panhard
  • Rear – Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
  • 1.9” Canyon Trail tires with trail-tuned foam inserts
  • Pre-glued and mounted to tough black scale wheels
  • Trail tuned S1 rubber compound
  • 12mm steel hex
• Transmitter
  • TQi 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control
• Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

Ultimate Ground Clearance
The TRX-4 Tactical Unit is equipped right out of the box with Traxxas’ game-changing portal axle set. Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles (and not get stuck), your tires would have to be over an inch taller than the TRX-4’s tires. Straddling boulders with ease, the TRX-4 chassis leaves all the others behind. portal-axle-increased-ground-clearance

Lightweight Night-Camo Body
The Tactical Unit’s lightweight night-camo body lowers the overall center of gravity (CG) of the truck for greater speeds, tighter handling, and improved technical crawling. The steep approach angles and high center ground clearance provide an unstoppable combination to conquer any terrain. No matter where the adventure leads, the TRX-4 Tactical Unit is up to the challenge.

Torque Twist Eliminated
The portal axles use gear reduction right at the wheels to dramatically reduce undesirable torque twist. Total axle gear reduction is over twice non-portal designs. The Titan 550 motor’s torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

Remote Locking Differentials
Traxxas gives you the versatility to lock and unlock the front and rear differentials to suit your driving needs directly from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front, for superior grip over extreme terrain. Sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.

Hi/Low Range Transmission
When the going gets tough, use your transmitter to shift into low range for incredible 4-wheel drive pulling torque. Shift into high range for blasting down the trail. The plush suspension design absorbs rough terrain with ease and delivers outstanding scale appearance. Unmatched versatility makes the TRX-4 Tactical Unit adaptable to just about any situation or driving style. trx-4-high-low-two-speed-transmission

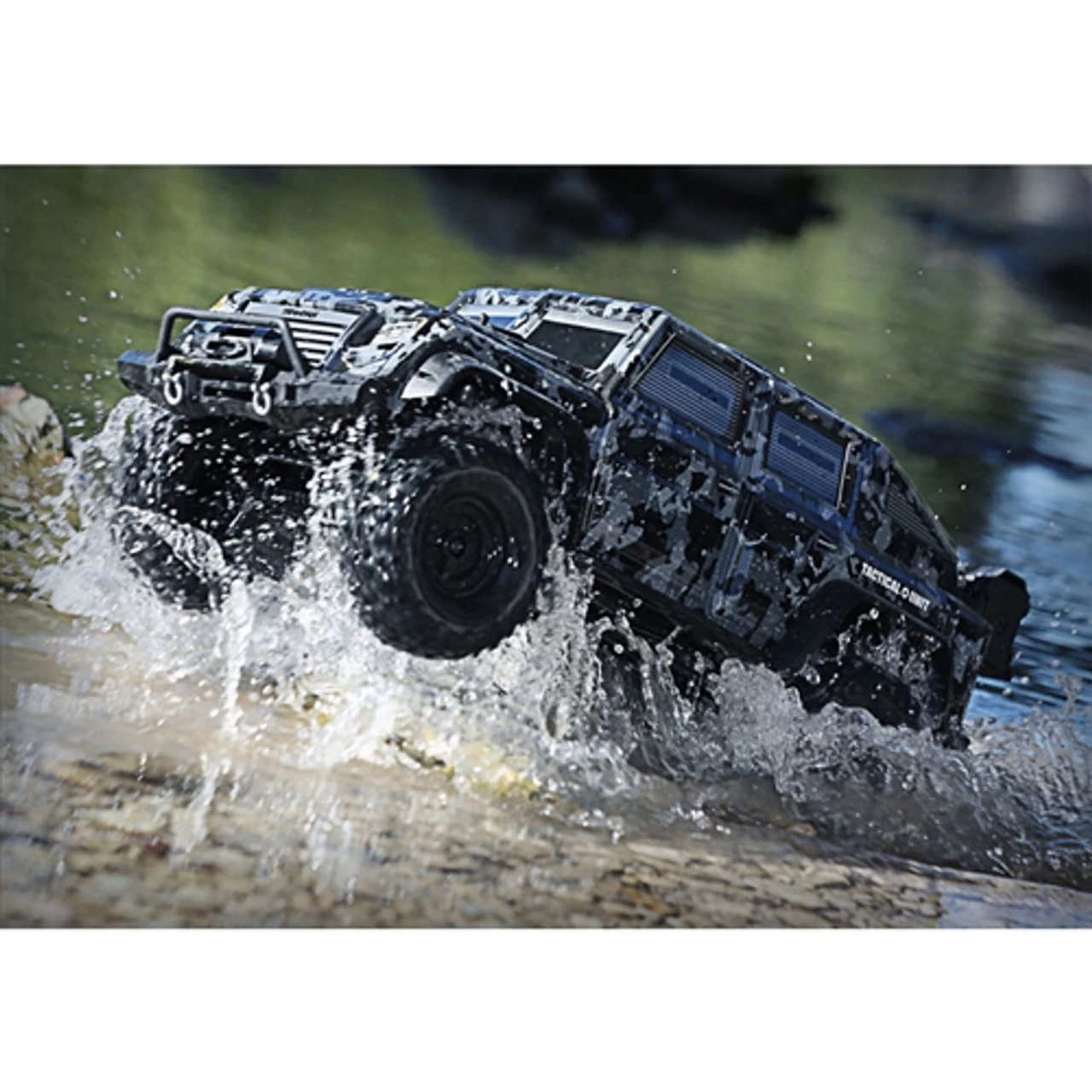

Waterproof
Traxxas was the first to bring you fully waterproof RC vehicles years ago with our innovative designs. The TRX-4 Tactical Unit is fully waterproof for how you like to really play, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

3S Power System
The new XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. New speed control profiles have been added for smooth and precise control. A new Trail profile facilitates smooth driving for most of your adventures, while a new Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!

Aluminum GTS Shocks
All new oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

TRX-4 Tactical Unit Specifications

Length: 23.07 inches (586.1mm)
Front Track: 9.78 inches (248.5mm)
Rear Track: 9.78 inches (248.5mm)
Ground Clearance: 3.14 inches (79.74mm)
Weight: 6.9lb (3.129kg)
Height: 9.92 inches (252mm)
Wheelbase: 12.75 inches (324mm)
Approach Angle: 53.17 degrees
Departure Angle: 41.67 degrees
Breakover Angle: 56.97 degrees
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Locking
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Battery Tray: 158.75 L x 47 W x 23/26mm H

Requires:

AA batteries for transmitter
6-7-cell NiMH flat pack or 2-3S LiPo battery
Charger
