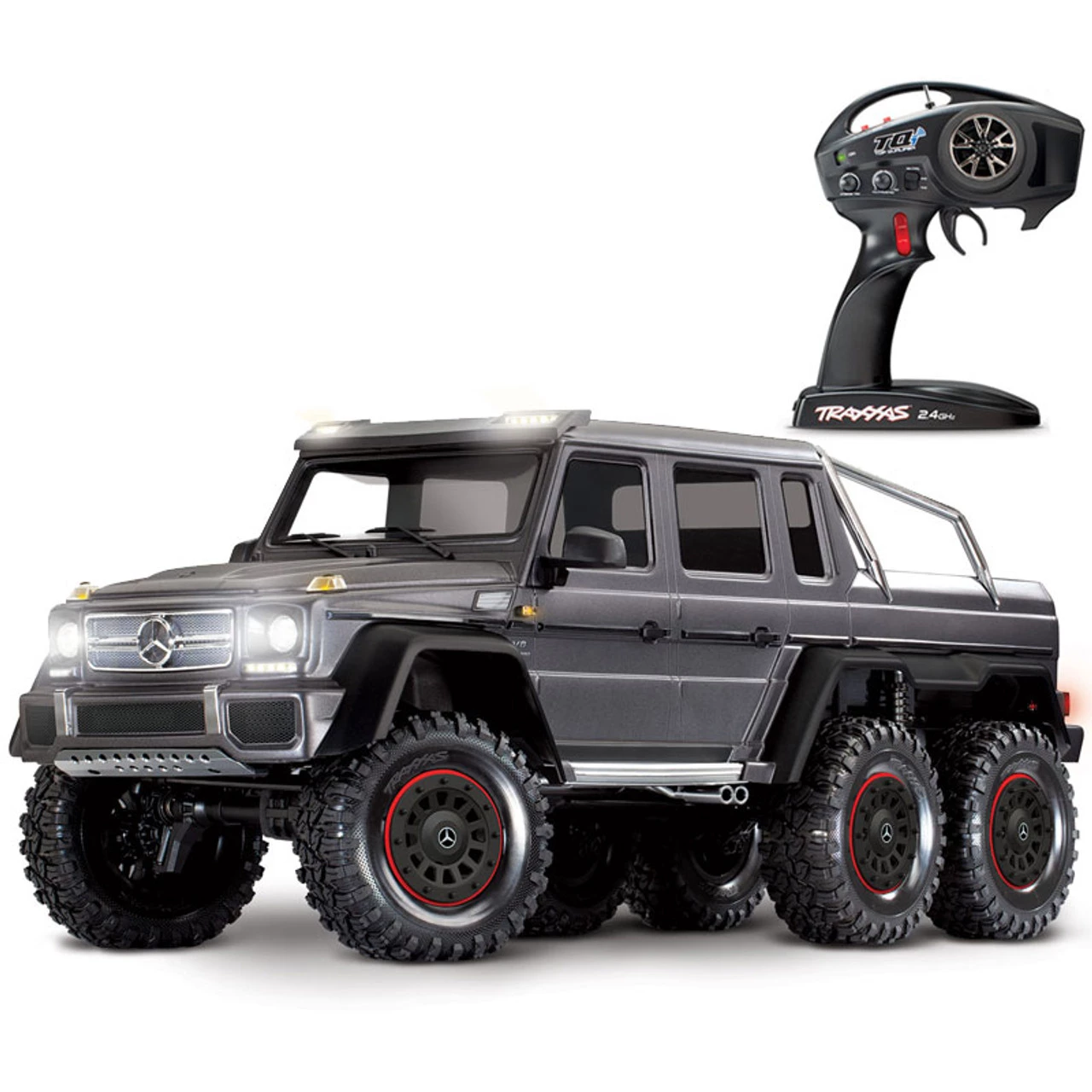

Traxxas TRX-6 Mercedes-Benz G63 6×6 Scale & Trail RTR RC Crawler Silver

This is the Traxxas TRX-6 Mercedes-Benz G63 6×6 Scale and Trail RTR RC Crawler.  This epic, officially-licensed replica of the G63 was done right.  Based on the toughest factory all-terrain vehicle ever built, the new TRX-6 features full 6-wheel drive, three remote-locking diffs, portal axles, high/low transmission, and factory-installed LED lighting to top off the spectacular body.

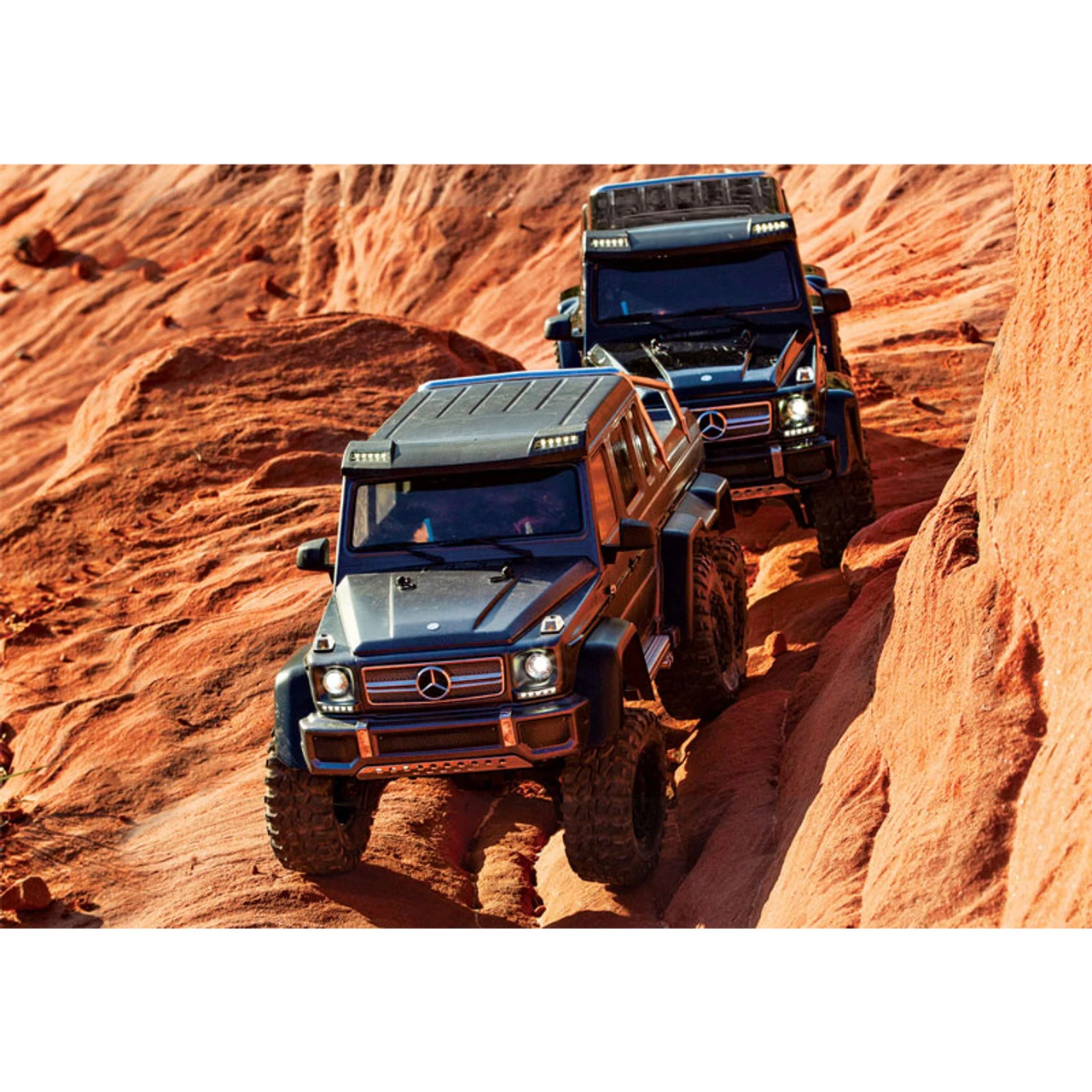

Superior 6×6 Design
A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.

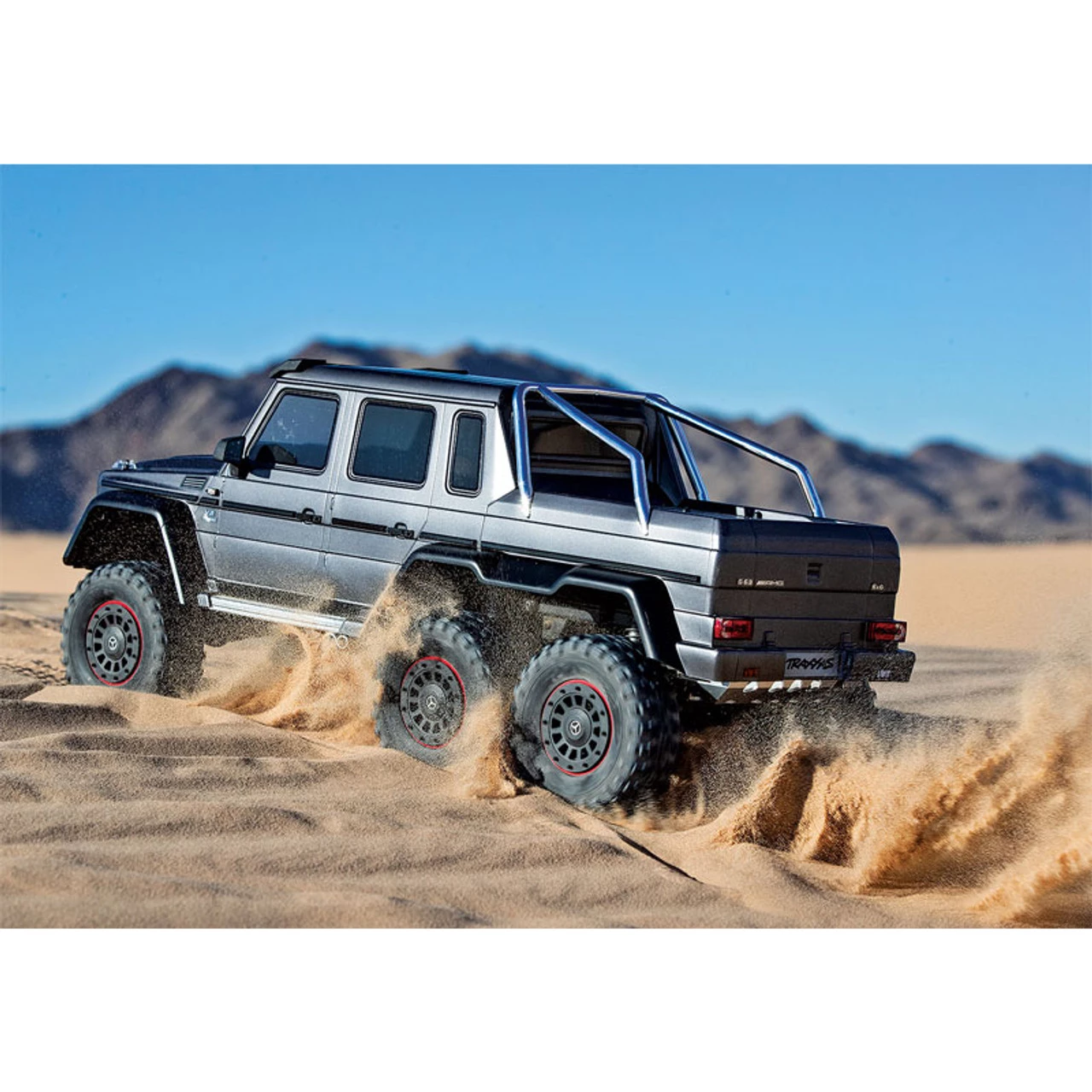

Exceptional Body Detail
The TRX-6 Mercedes-Benz G 63 AMG 6×6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.

Factory-Equipped LED Lighting
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.

TRX-6 Features

• Officially Licensed Mercedes-Benz G 63 AMG 6×6 Body
  • Scale details: chrome grille, chrome running boards, side mirrors, side trim, windshield visor, door handles, wipers, and dual side exhaust
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
  • Chrome roll bars
  • Chrome front and rear skid plates
• Installed LED Light Kit
  • Includes headlights, tail lights, roof lights, and side markers
  • Sealed waterproof design
  • Color-coded power distribution block for easy and secure connections
  • Traxxas LED lighting module
    • Regulated to provide consistent and reliable power output
    • Eliminates overheating, glitching, and other electronics issues
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode – forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage range 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

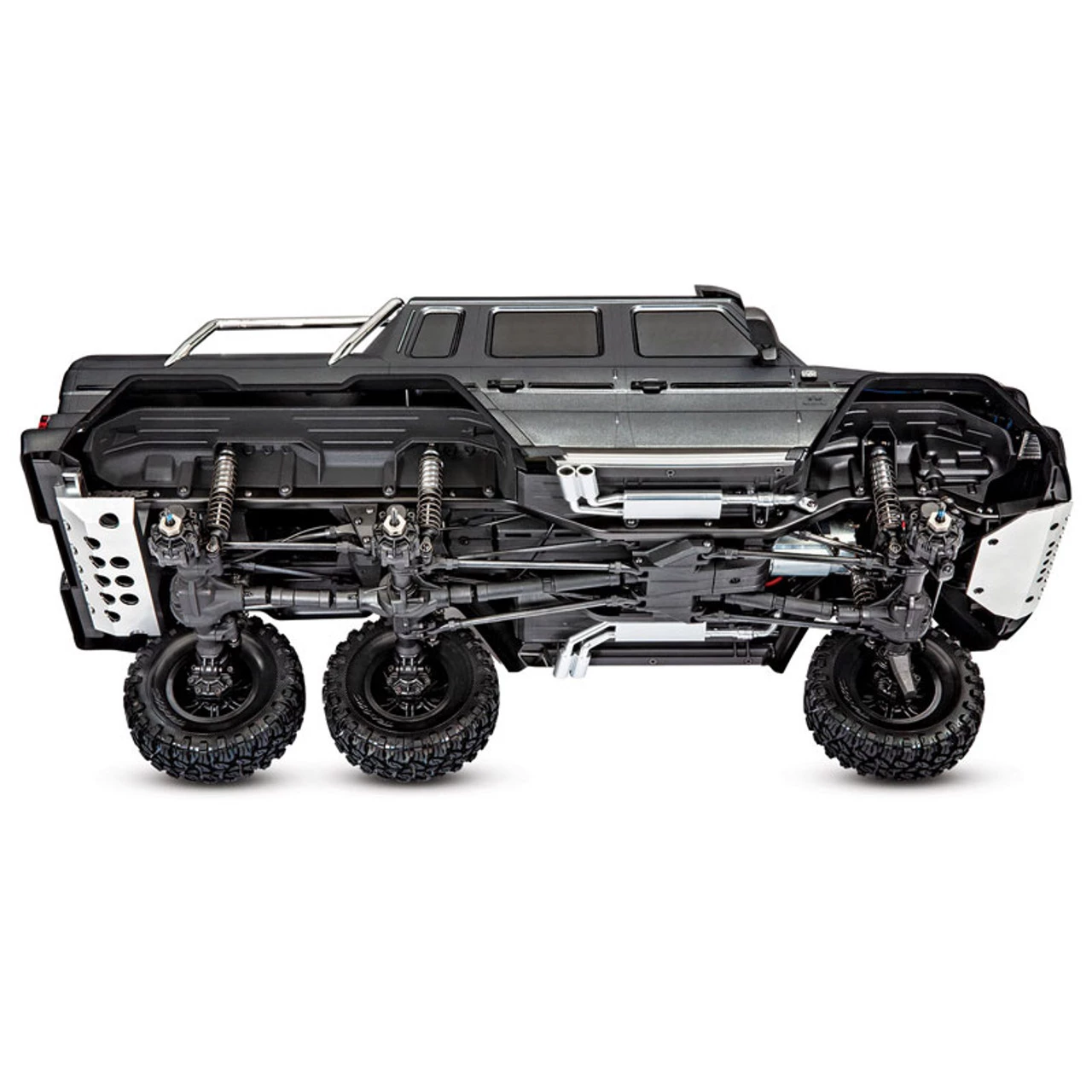

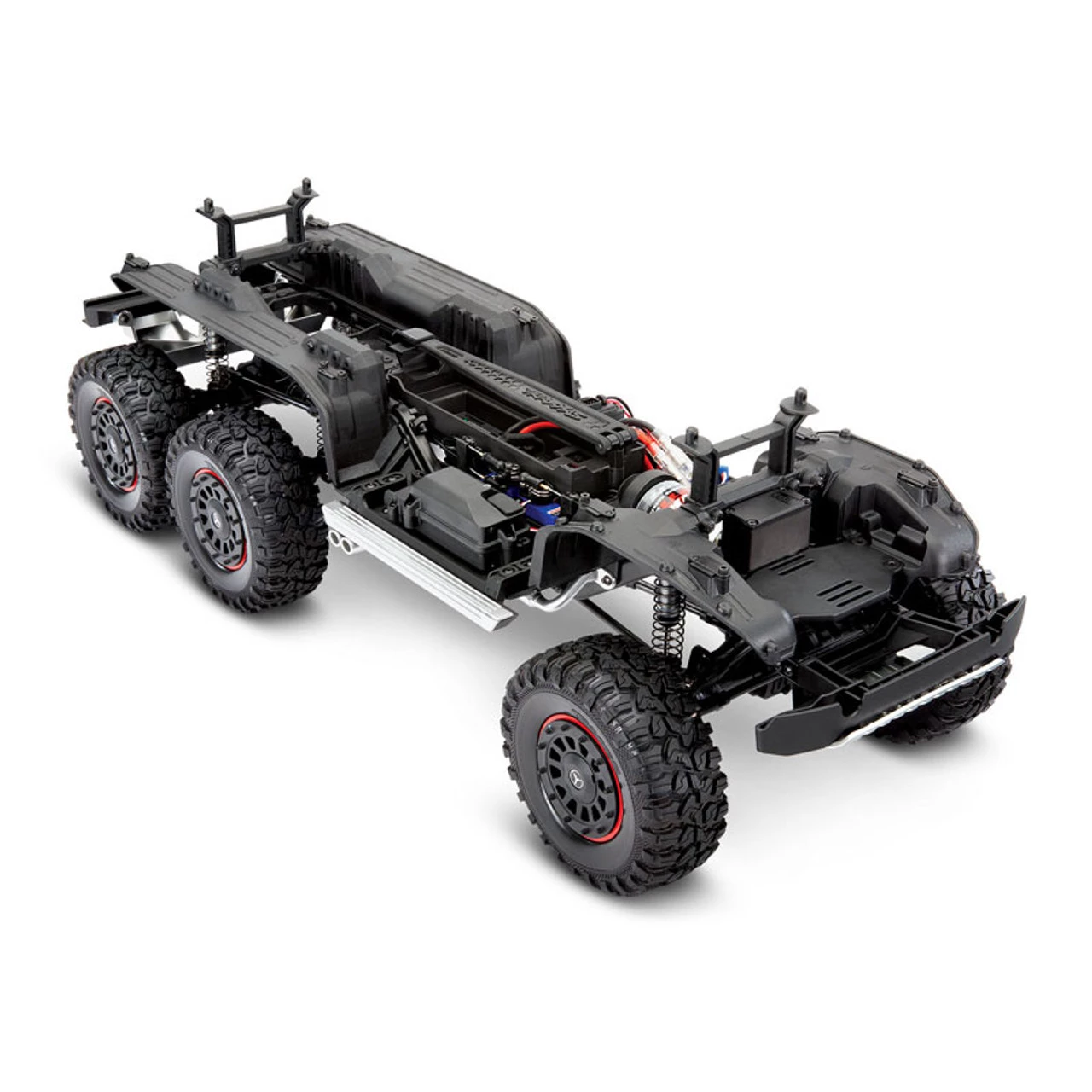

• Innovative Chassis Design
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Extended wheelbase for added stability on inclines
  • Intermediate drive axle to reduce high-centering
  • Tough reinforced bumpers with integrated skid plates
  • Chrome running boards adjust for width
  • Wire routing clips integrated into frame rails
• Drivetrain
  • Full-time shaft driven 6-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45-degree steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front – 3 link with panhard
  • Rear – Dual triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter lower steel link rods with 4 mm threaded ends
• Wheels and Tires
  • 2.2″ Beadlock-style wheels with hub inserts
  • Unique 2.2″ all-terrain tires with trail-tuned foam inserts
  • Trail-tuned S1 rubber compound
  • 12mm steel hex
• Transmitter
  • TQi 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

TRX-6 Specifications

Length: 25.61 inches (651 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)

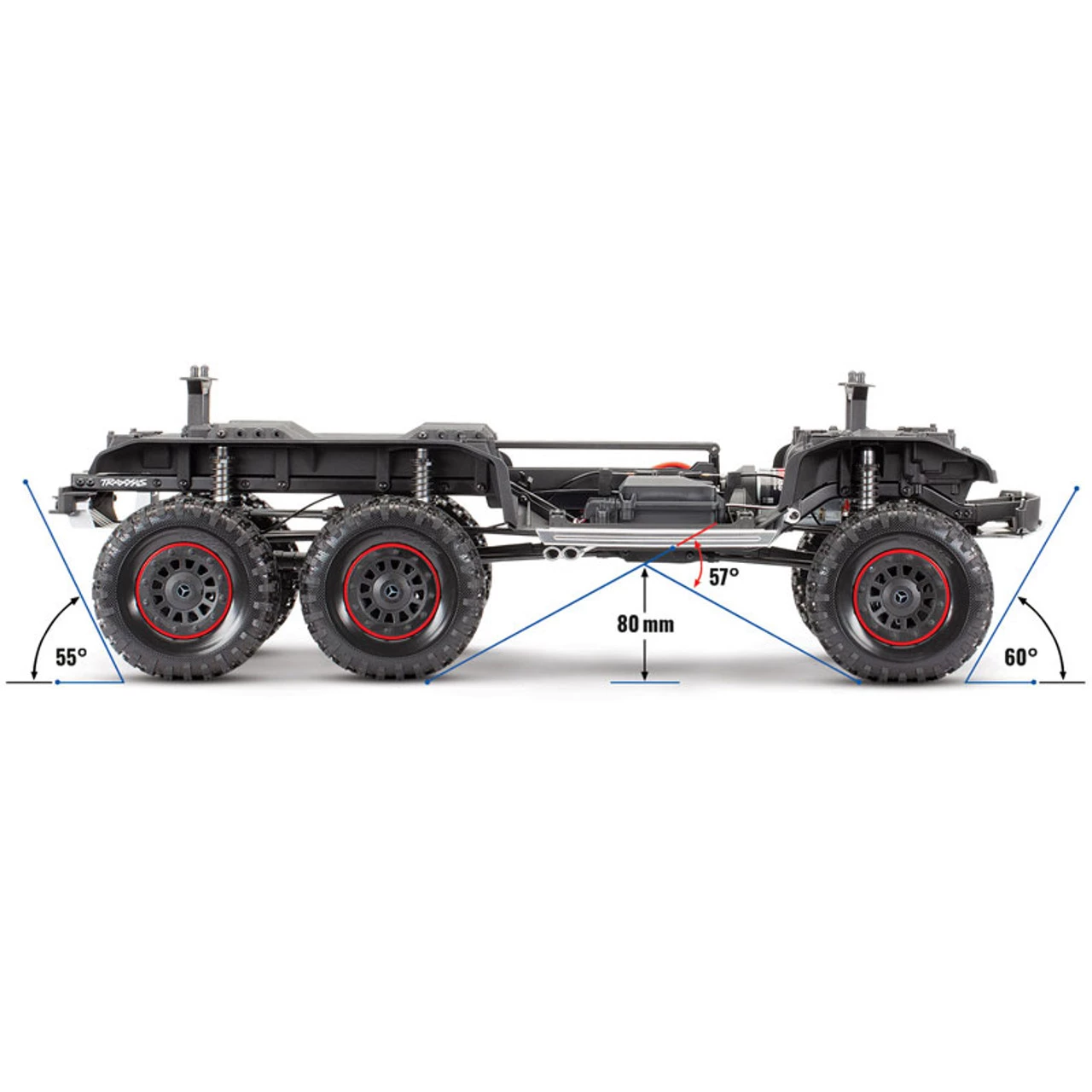

Ground Clearance: 3.14 inches (80 mm)
Weight: 8.8 pounds (3.99 kg)
Height: 10.78 inches (274 mm)
Wheelbase (to intermediate axle): 12.76 inches (324 mm)
Wheelbase (to rear axle): 17.87 inches (454 mm)
Approach Angle: 60 degrees
Departure Angle: 55 degrees
Breakover Angle: 57 degrees
Transmission: 2-speed High/Low, Remote Shifting
Gear Pitch: 32P

Includes

TRX-6, Ready-To-Drive model
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQi 2.4GHz radio system with cruise control
High quality maintenance tools

Requires

Battery – 6-7 cell NiMH or 2-3S LiPo
Charger
Four AA batteries for transmitter
