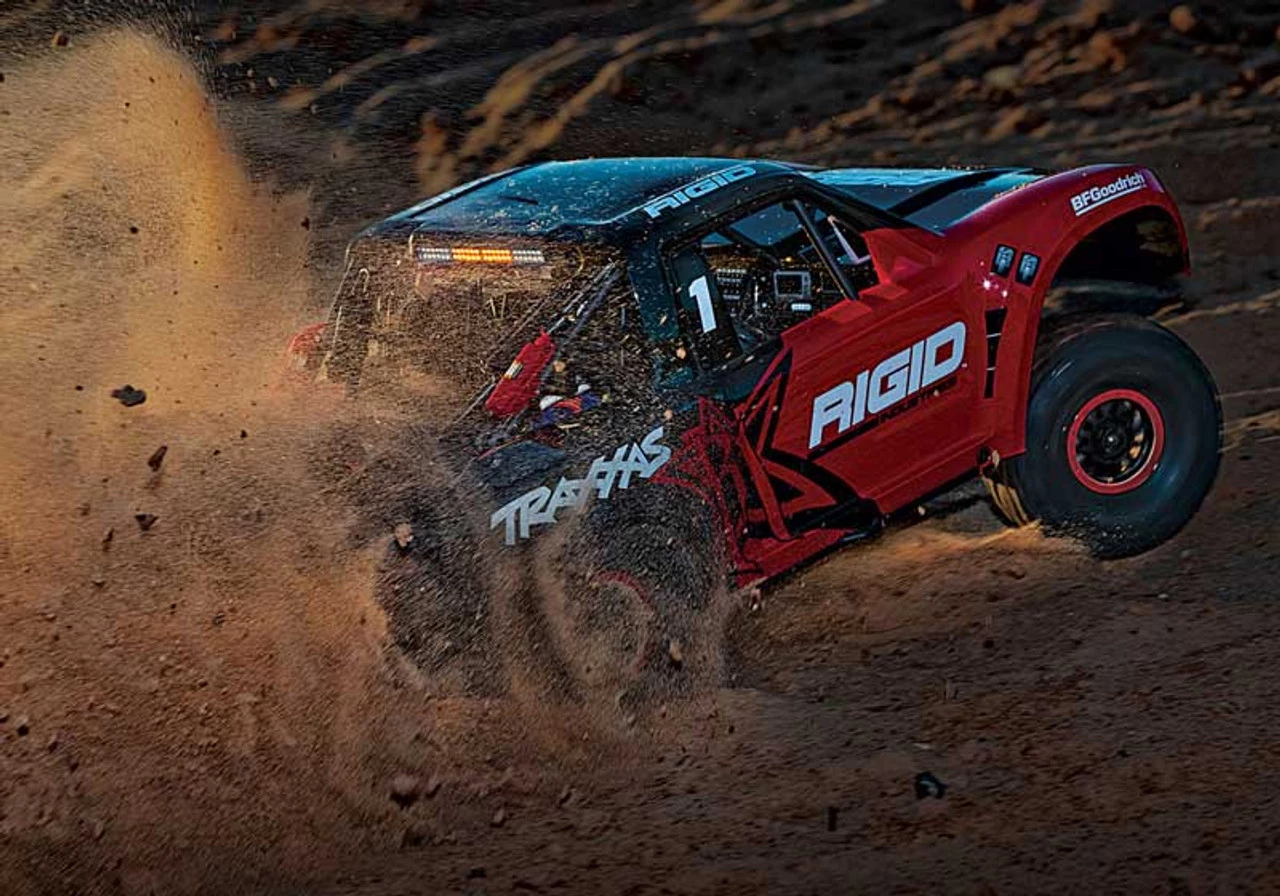

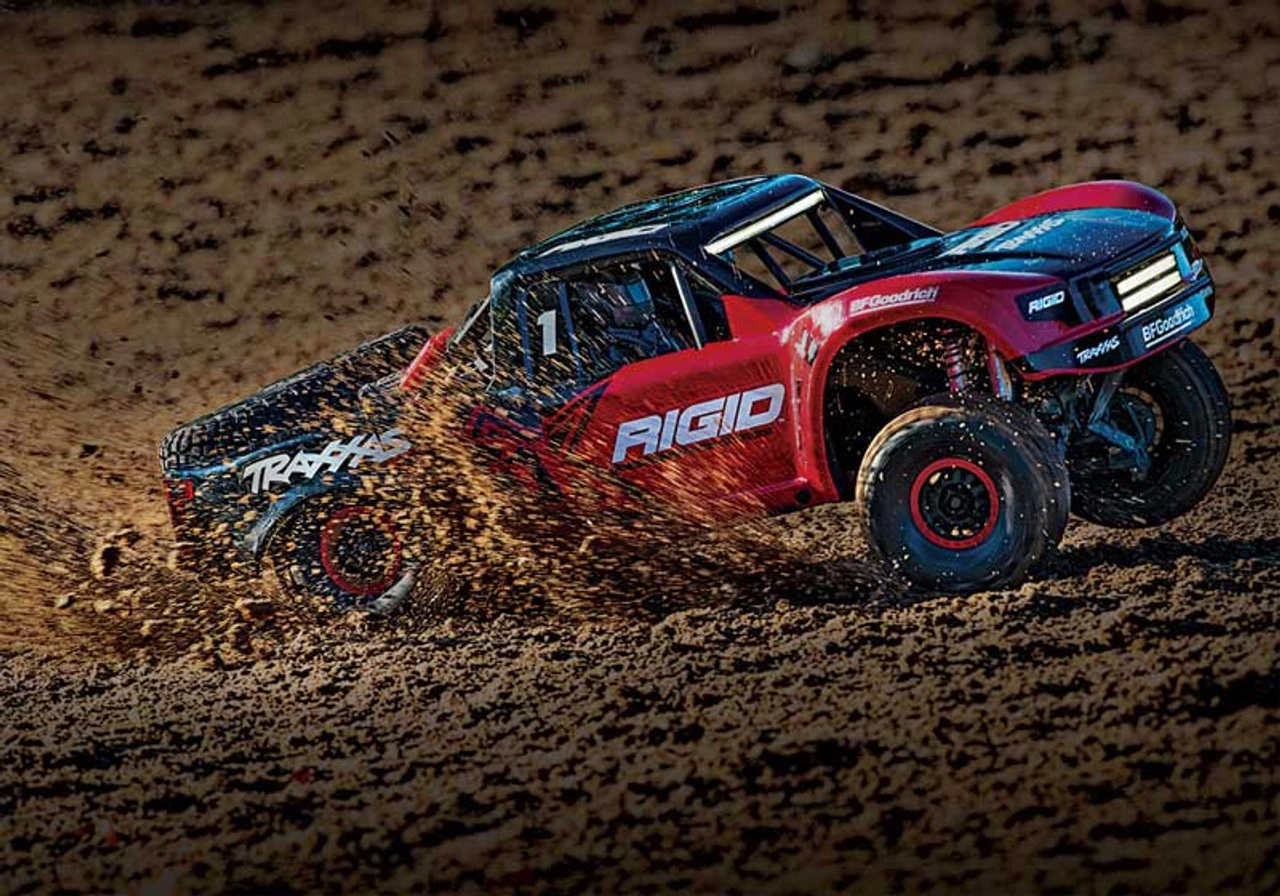

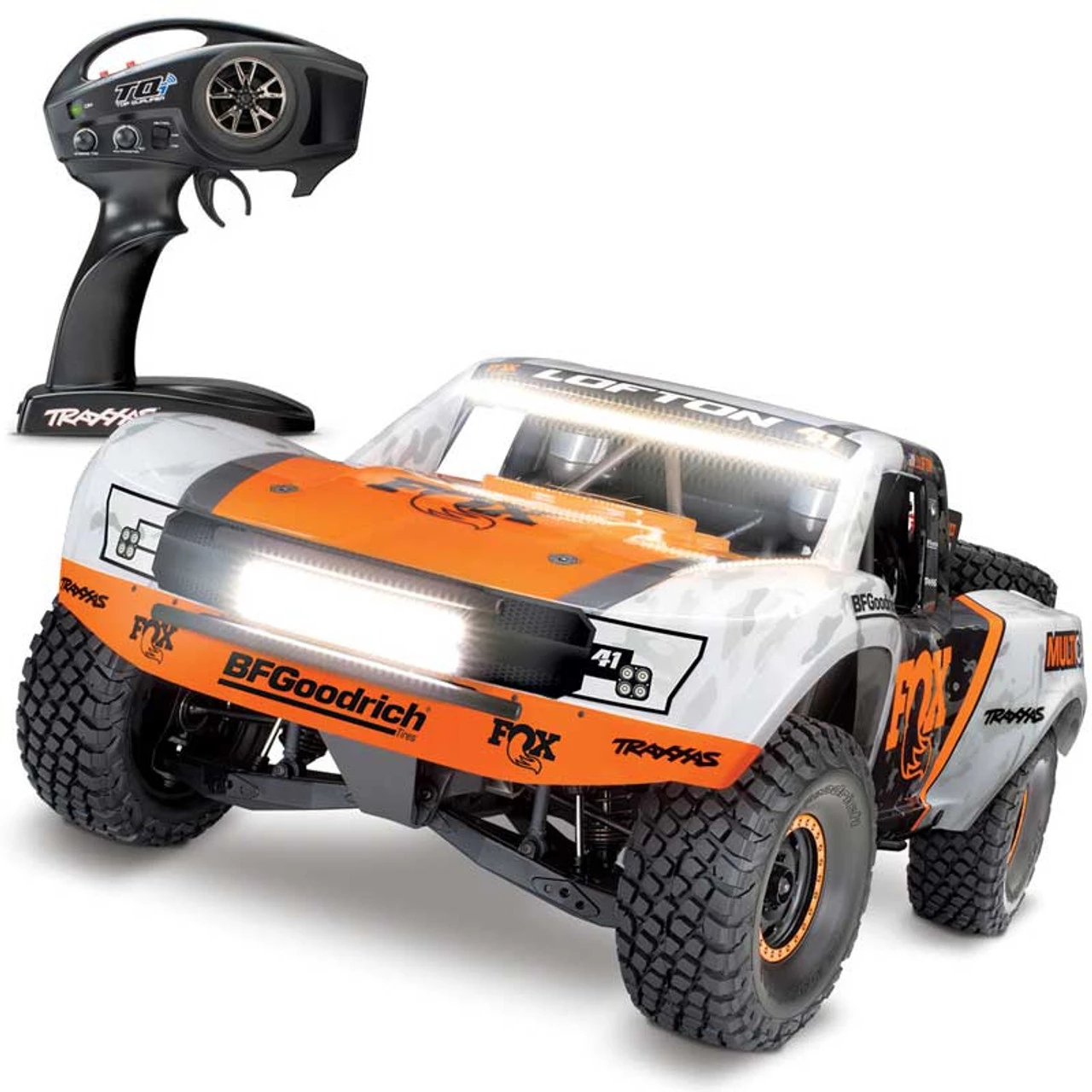

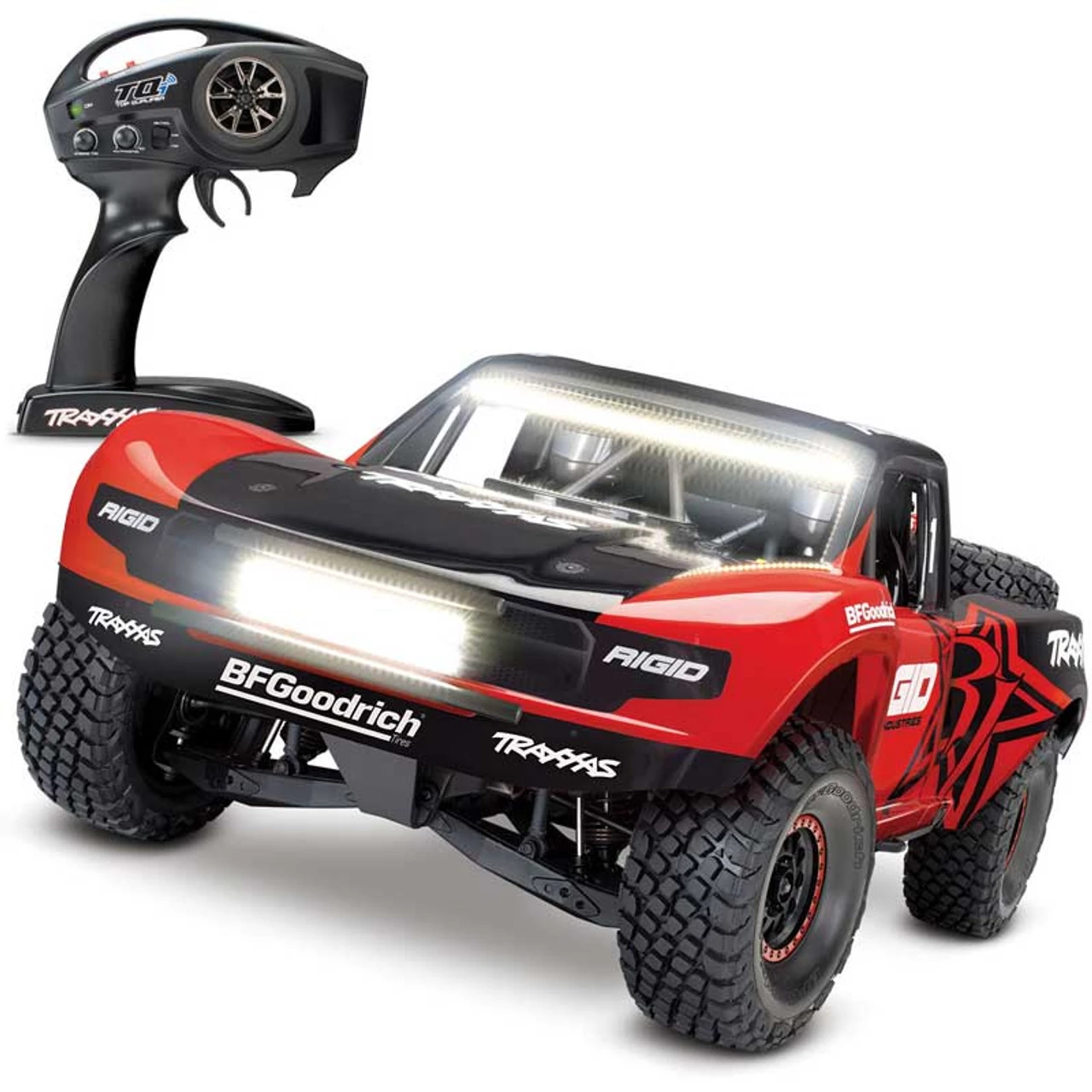

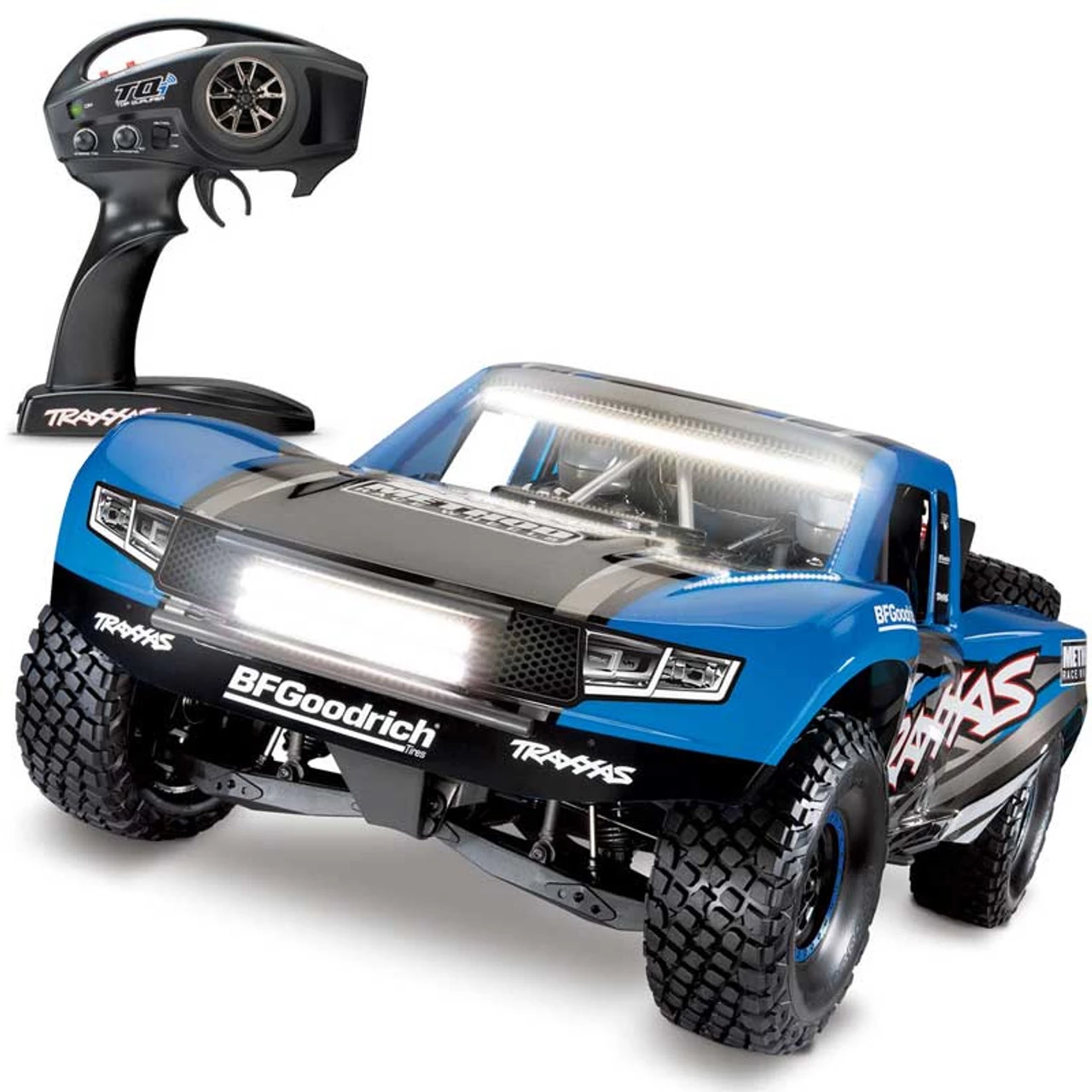

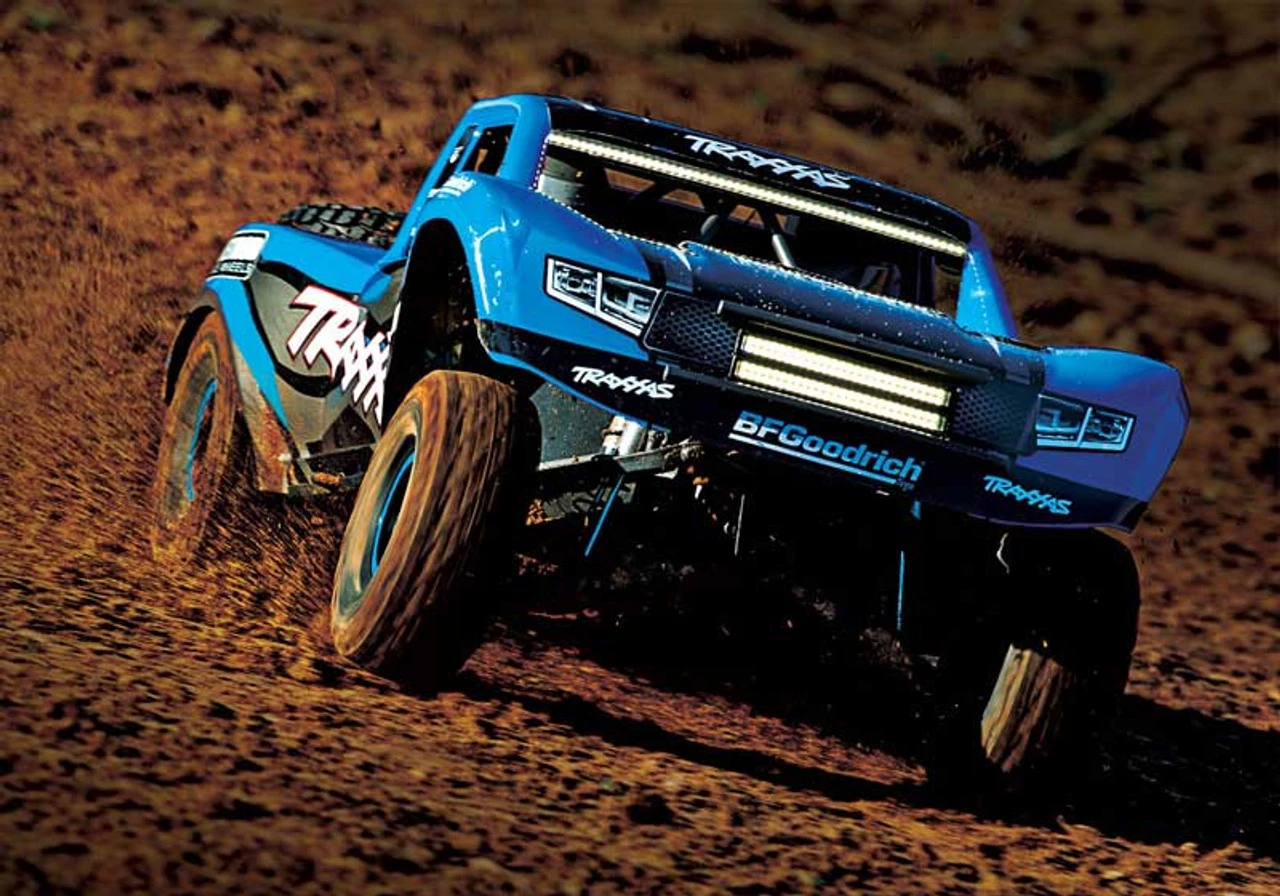

Traxxas Unlimited Desert Racer 4WD Brushless RTR RC Truck w/LED Lights Factory-Installed Rigid

This is the Traxxas Unlimited Desert Racer 4WD Brushless Electric Ready-to-Race RC Truck with Factory-Installed LED Lights, Velineon VXL-6s Brushless Power System, TQi 2.4GHz radio system, and Traxxas Stability Management (TSM).

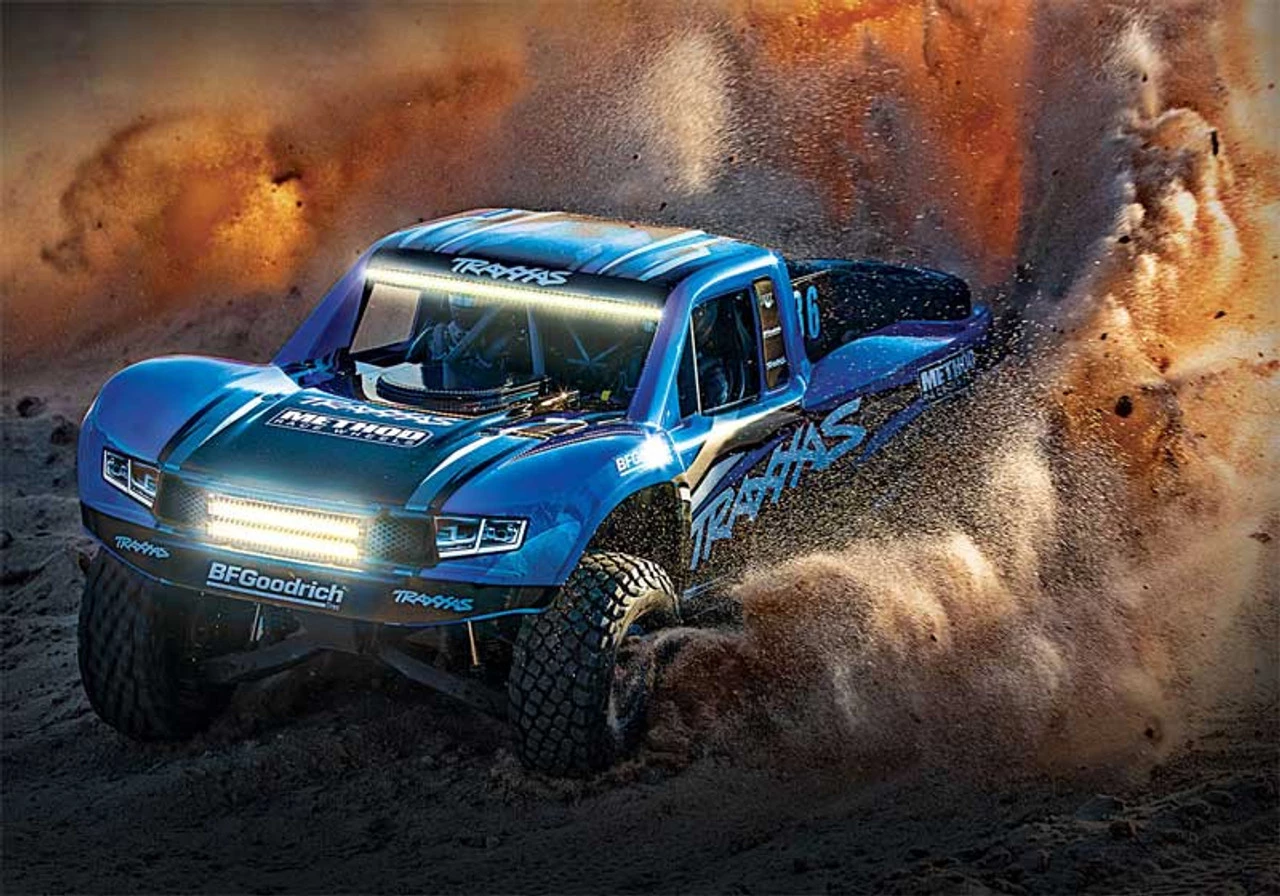

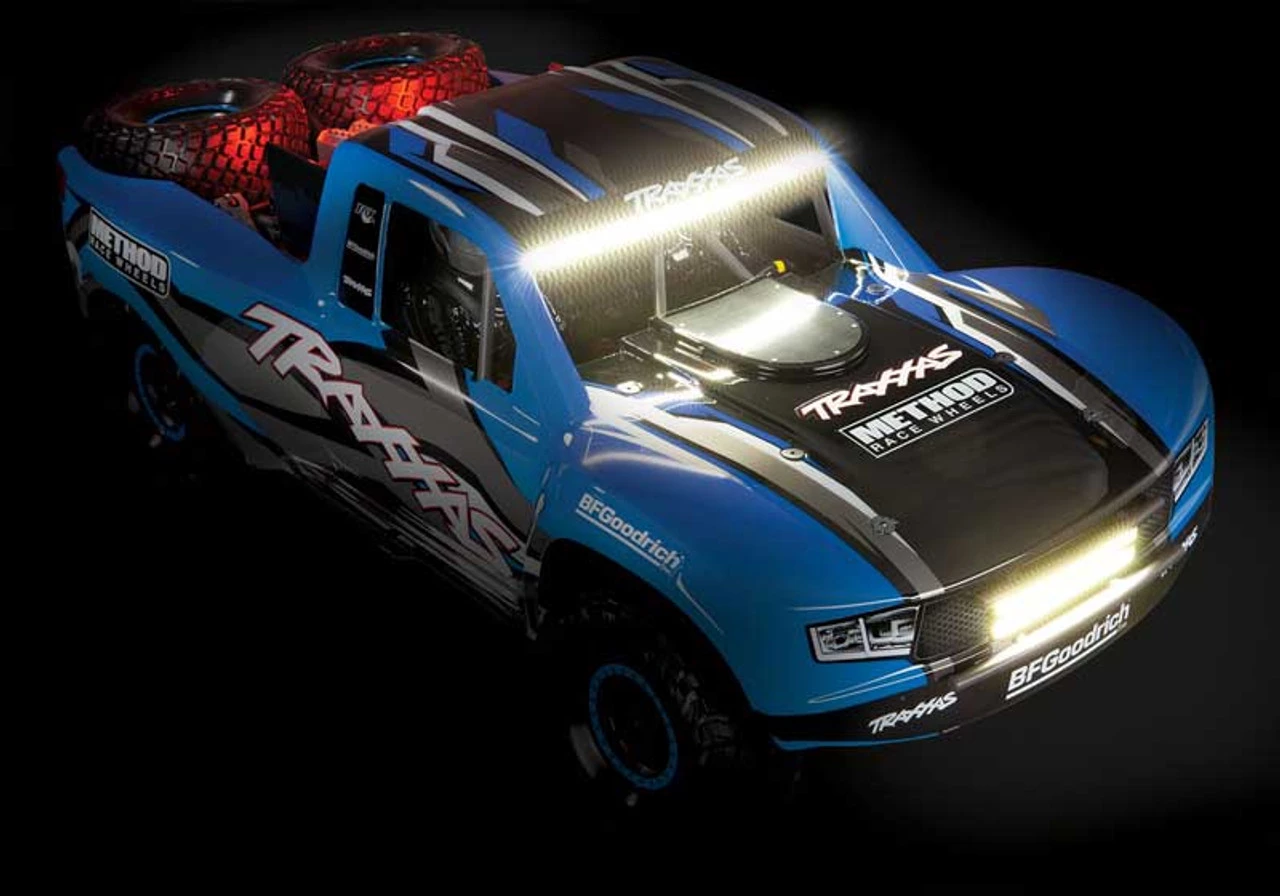

High-Voltage LED Lights

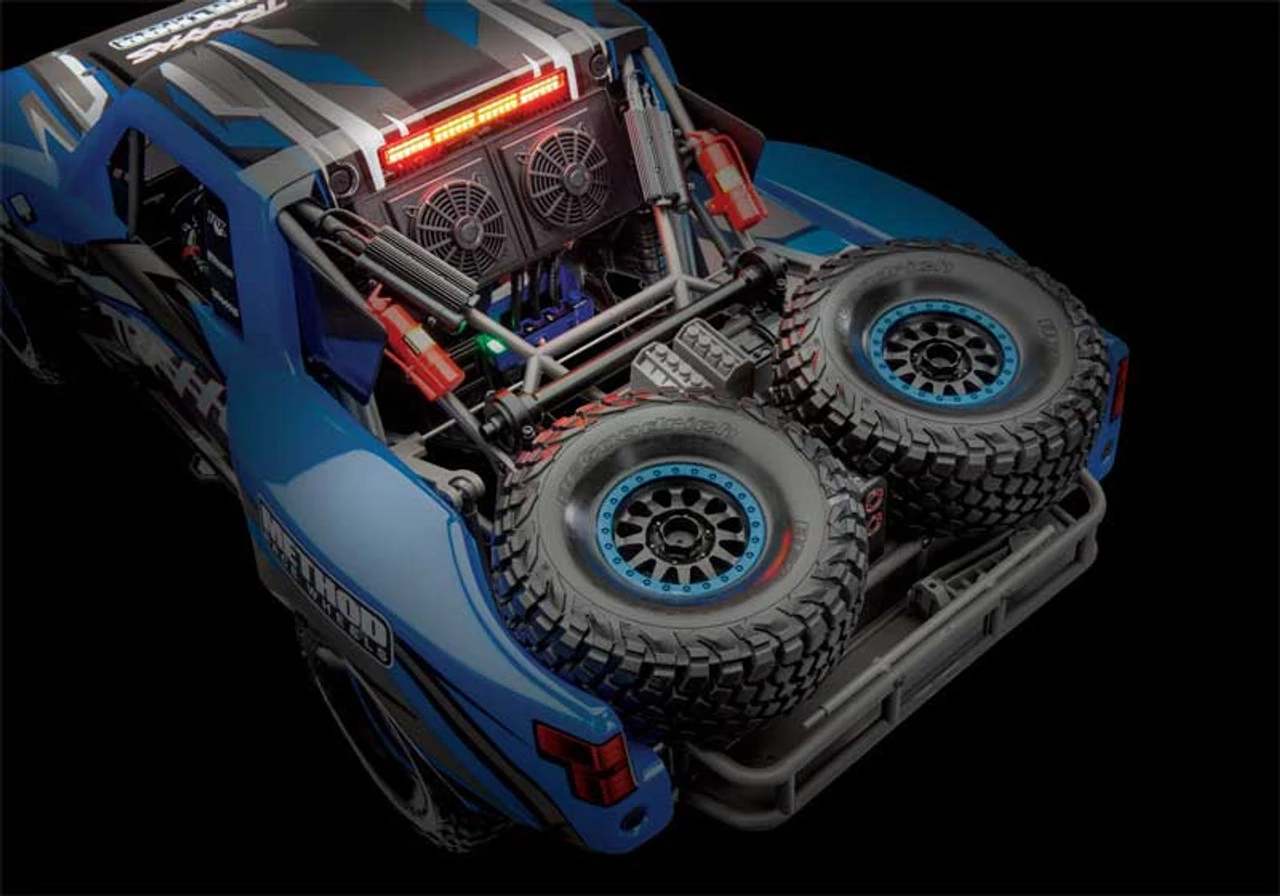

Flood the desert with high-intensity light from the rugged waterproof LED lighting system. A high-voltage amplifier powers 204 individual LEDs for brilliant light while tightly regulating the voltage to eliminate flickering and dimming. The rear light bar features class lights and smart brake lights that work when brakes are applied in either direction.

We recommend adding the #6511 Bluetooth Wireless Module for the ability to control the lights and settings remotely, plus get access to the built-in telemetry functions of the VXL-6s ESC!

Pro-Scale Performance
Pro-Scale is a new Traxxas innovation that captures true-scale realism and combines it with extreme 6s LiPo power and 50+ mph performance. The Traxxas Unlimited Desert Racer faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed

Driving Realism
The Traxxas Unlimited Desert Racer is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.

6s Extreme Power
The 50+ mph Unlimited Desert Racer delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive.



Features

VXL-6s Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire

Velineon 2200kV Brushless Motor

• 4-pole 2200kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation

Up to 50+ mph with Two 3s LiPo Batteries
Traxxas Stability Management (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

TQi 2.4GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Large Pro-Scale Body with Highly Detailed Replica Parts

• Heavy-duty truck body mounts to chassis in multiple locations
• Strong and functional tube frame mimics full-size off-road racers
• Detailed interior cabin with driver figures
• Replica brake calipers and discs with integrated 17mm wheel hubs
• Two fully-functional spare tires and functional spare driveshaft
• Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
• Realistic side plates mount to tube frame

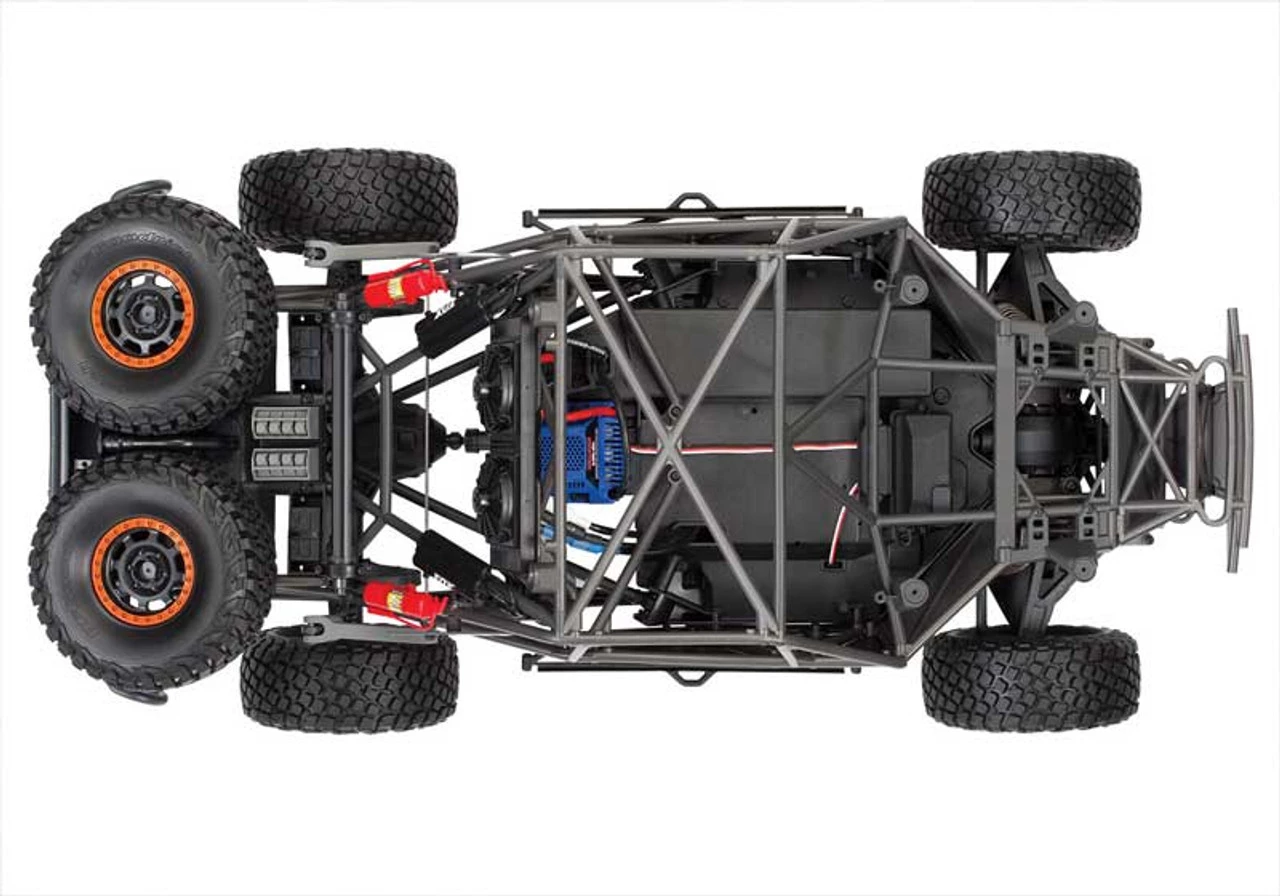

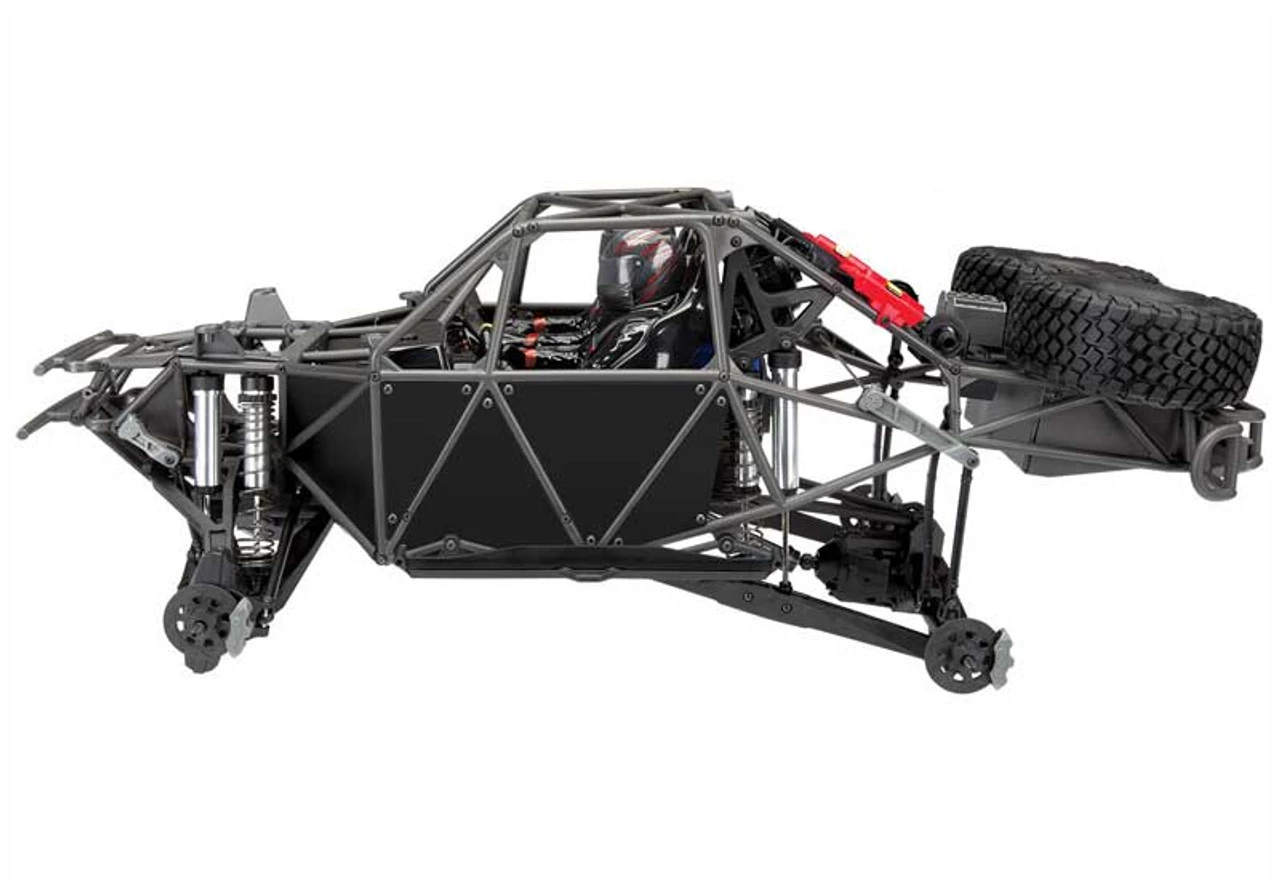

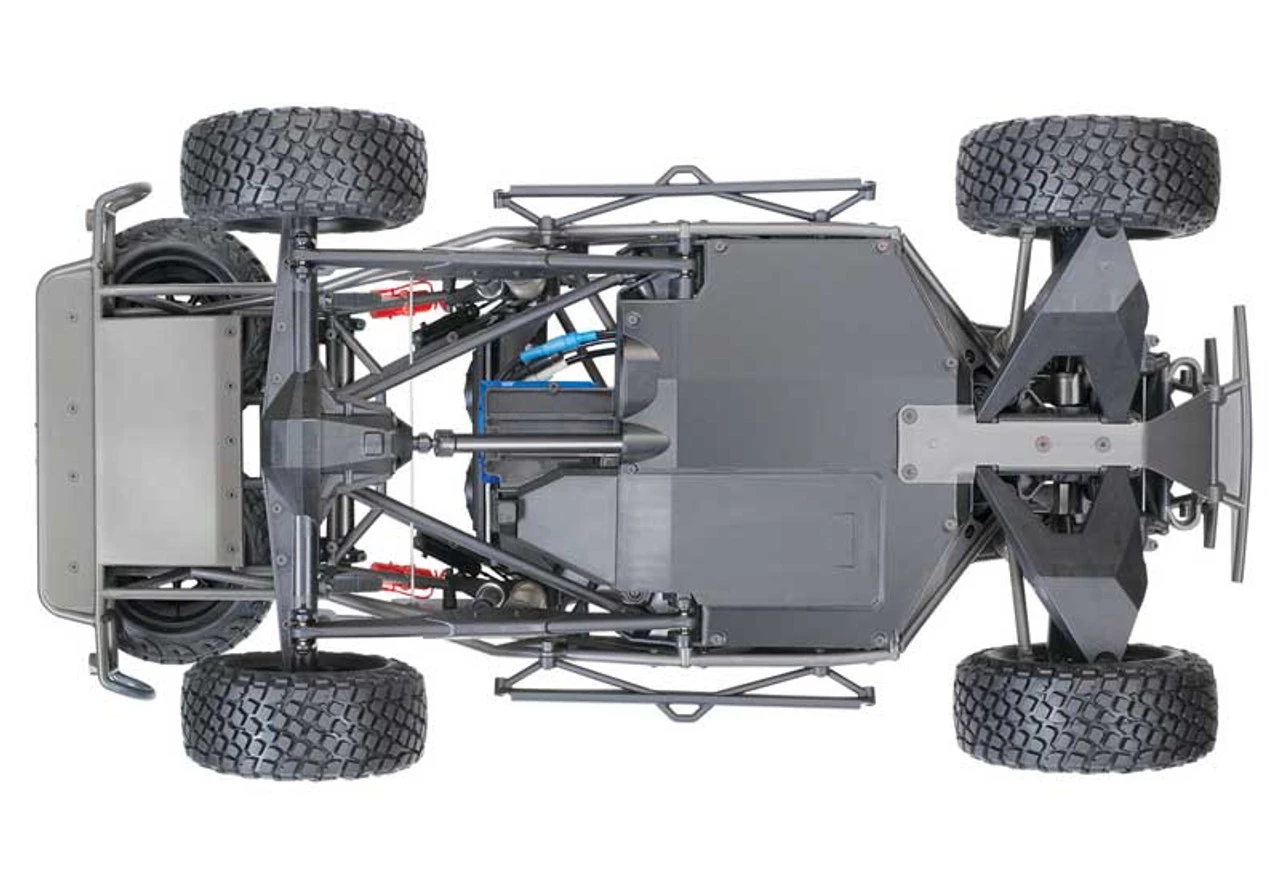

Chassis

• Composite inverted tub design
• Makes maintenance easier
• Lowers center of gravity (CG) for improved handling
• Allows easy access to components
• Tough skid plates protect critical components
• Fully integrated tube frame for scale appearance and added rigidity
• Reinforced bumpers to absorb impacts
• ESC battery plugs hard mounted to chassis

Innovative Battery Compartment

• Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
• Opens from underneath without removing body
• Fixed oversized battery strap locks batteries securely into place
• Separate skid plate to protect batteries

Suspension

• Provides scale looks and authentic off-road driving dynamics
• Tough independent double-wishbone front suspension with captured rod ends
• Triangulated 4-link rear suspension with solid rear axle (patent pending)
• Tough composite trailing arms
• Steel upper links with 3 optional positions for suspension tuning
• Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
• Realistic and functional front and rear sway bars
• Detailed functional limit straps on rear axle

Steering

• Chassis mounted #2075X metal-gear servo
• Dual bellcrank design with bearings and integrated servo saver
• Solid non-adjustable steering links for rugged durability

Drivetrain

• Steel CV driveshafts (front) with 6mm stub axles
• Steel straight axle (rear)
• Oil-filled limited slip front differential
• Locked steel spool (rear)
• Heavy-duty splined front driveshaft
• Fixed-length steel rear driveshaft

Transmission

• All-steel gear direct drive transmission
• Torque-Biasing Center Drive
• Removes as a single piece for easy maintenance
• Fixed-pin gear mesh system

Wheels and Tires

• Replica BFGoodrich KR3 off-road tires
• Beadlock-style 17mm dual-diameter wheels

Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating

Specifications

Length: 27.32 inches (694mm)
Front Track: 13.57 inches (345mm)
Rear Track: 13.57 inches (345mm)
Ground Clearance: 2.27 inches (58mm)
Weight: 13.4lb (6.1kg)
Height: 10.29 inches (261mm)
Wheelbase: 16.53 inches (420mm)
Front Shock Length: 5.28 inches (134mm)
Front Threaded Shock Length: 5.28 inches (134mm)
Rear Shock Length: 6.3 inches (160mm)
Rear Threaded Shock Length: 5.55 inches (139mm)
Tires (pre-glued): 134mm x 57mm BFGoodrich KR3 replicas
Wheels: dual diameter 40mm x 56/81mm
Speed Control: Velineon VXL-6s
Motor (electric): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Chassis Structure / Material: Inverted composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: TQi 2-channel transmitter with 6533 TSM receiver
Servo: 2075X Metal Gear
Top Speed (stock gearing): 4s LiPo – 30+ mph, 6s LiPo – 50+ mph
Skill Level: 5
Battery Compartment: 181mm x 46mm x 56mm

Requires

Batteries: One 4s LiPo battery, dual 2s LiPo batteries, or dual 3s LiPo batteries
Charger: Traxxas EZ-Peak Live charger (2971) is recommended
Four AA alkaline batteries for transmitter
