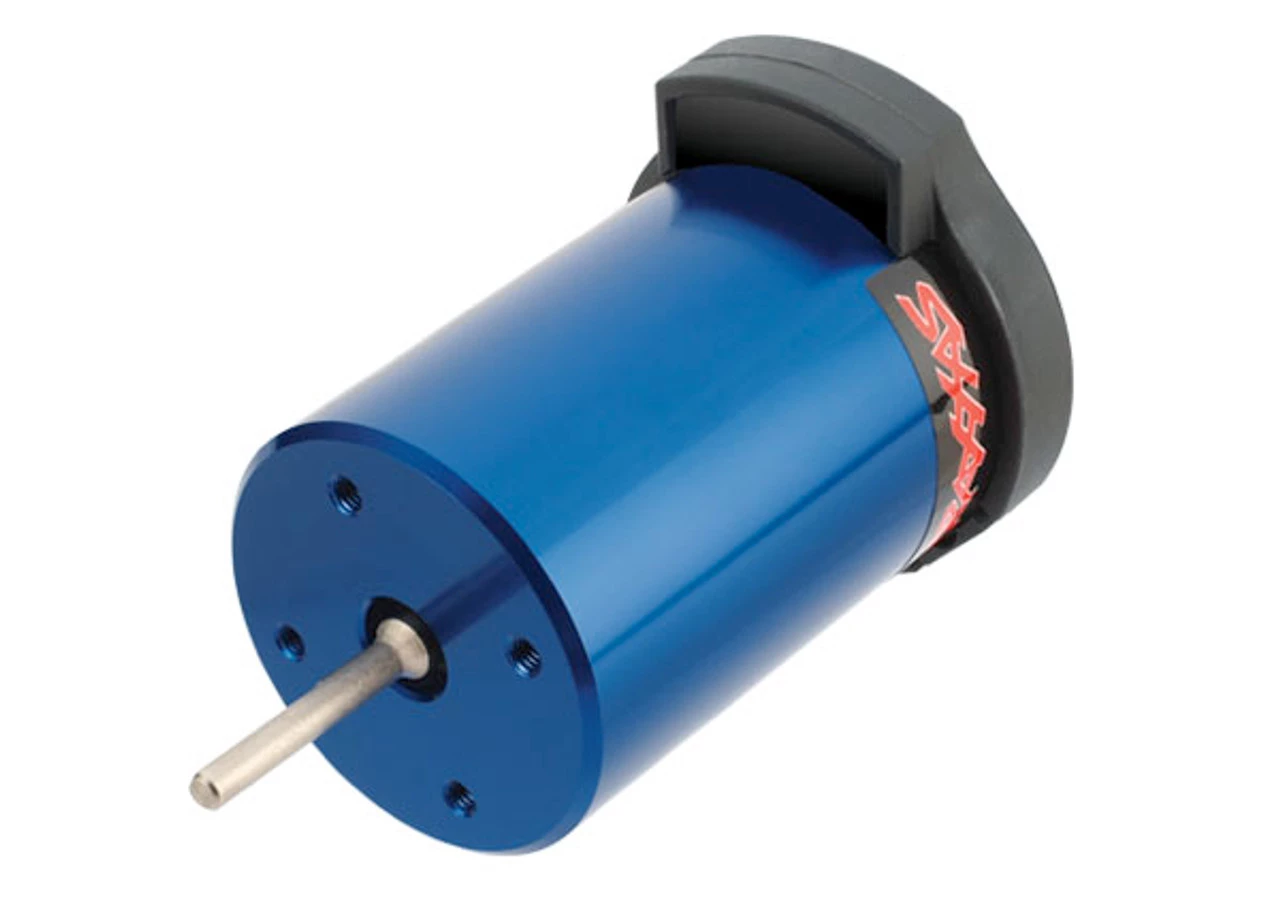

Traxxas Velineon VXL Brushless 3500kV Motor

This is the Traxxas Velineon 3500 Brushless Waterproof Motor. This is the replacement motor found in many of the 1/10 brushless trucks, designed for use with the VXL-3s ESC. See full list of compatible trucks below.

This is the original model 3351 motor with smooth wires, not the updated 4-pole version with braided wires.

The Velineon 3500 Brushless Motor uses ultra high-temperature Neodymium magnets, high-speed ball bearings, and a precision balanced rotor for power and long-life. Since there are no brushes or commutator to wear out, the need for maintenance is virtually eliminated. The Velineon 3500 delivers consistent, high-power output, run after run.

Features

• Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
• Optimized for power and efficiency in 1/10th scale vehicles
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Protective end cap
• 10-Turn, 3500Kv
• Rebuildable
• Hex hardware
• Brilliant blue-anodizing finish
• Silicon steel laminations
• Delivers more power than comparable brushed motors

Specifications

Type: Sensorless, Brushless
Kv Rating: 3500
Connectors: 3.5mm bullet
Wire Size: 12 gauge Maxx cable
Can Diameter: 1.42″ (36mm)
Can Length: 2.22″ (56.3mm)
Total Length Including Shaft: 3.02″ (77mm)
Shaft Length: .80″ (20.3mm)
Shaft Diameter: .11″ (2.8mm)

For use with VXL-3s ESC in these vehicles:

1/10 Rally
Bandit VXL
Rustler VXL
Slash 2WD VXL
Slash 4×4
Stampede 4×4 VXL
Stampede VXL 2WD
